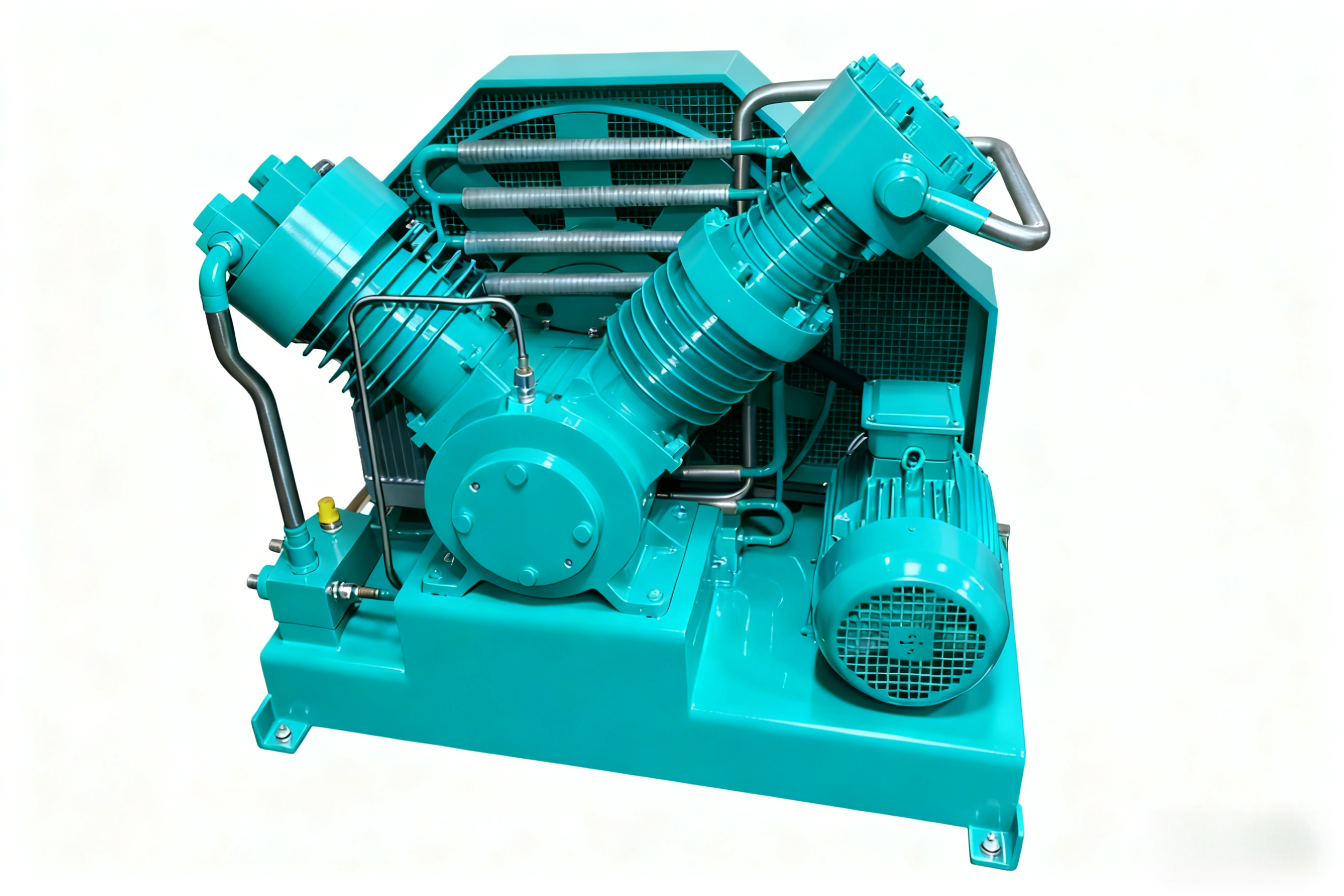

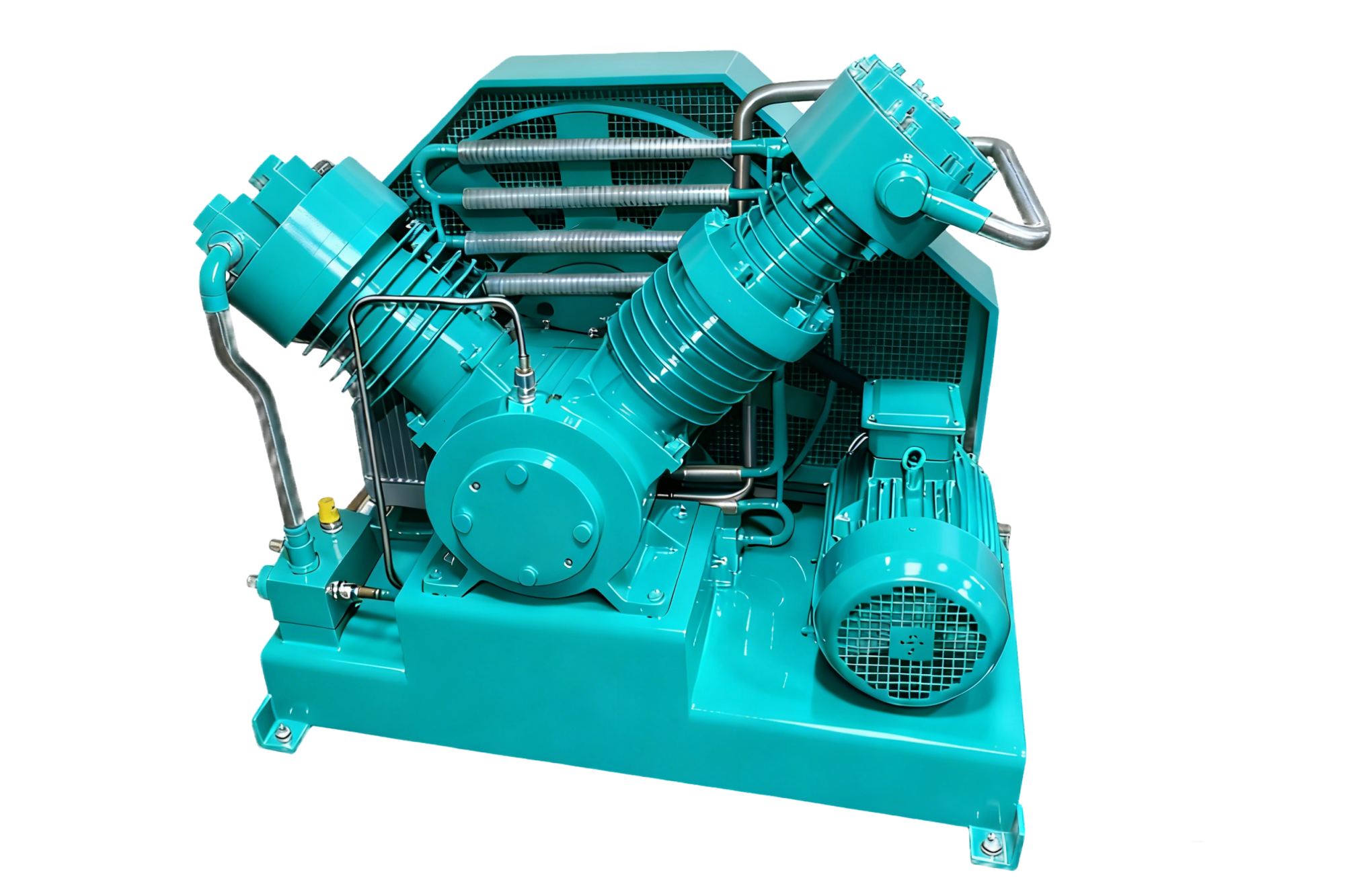

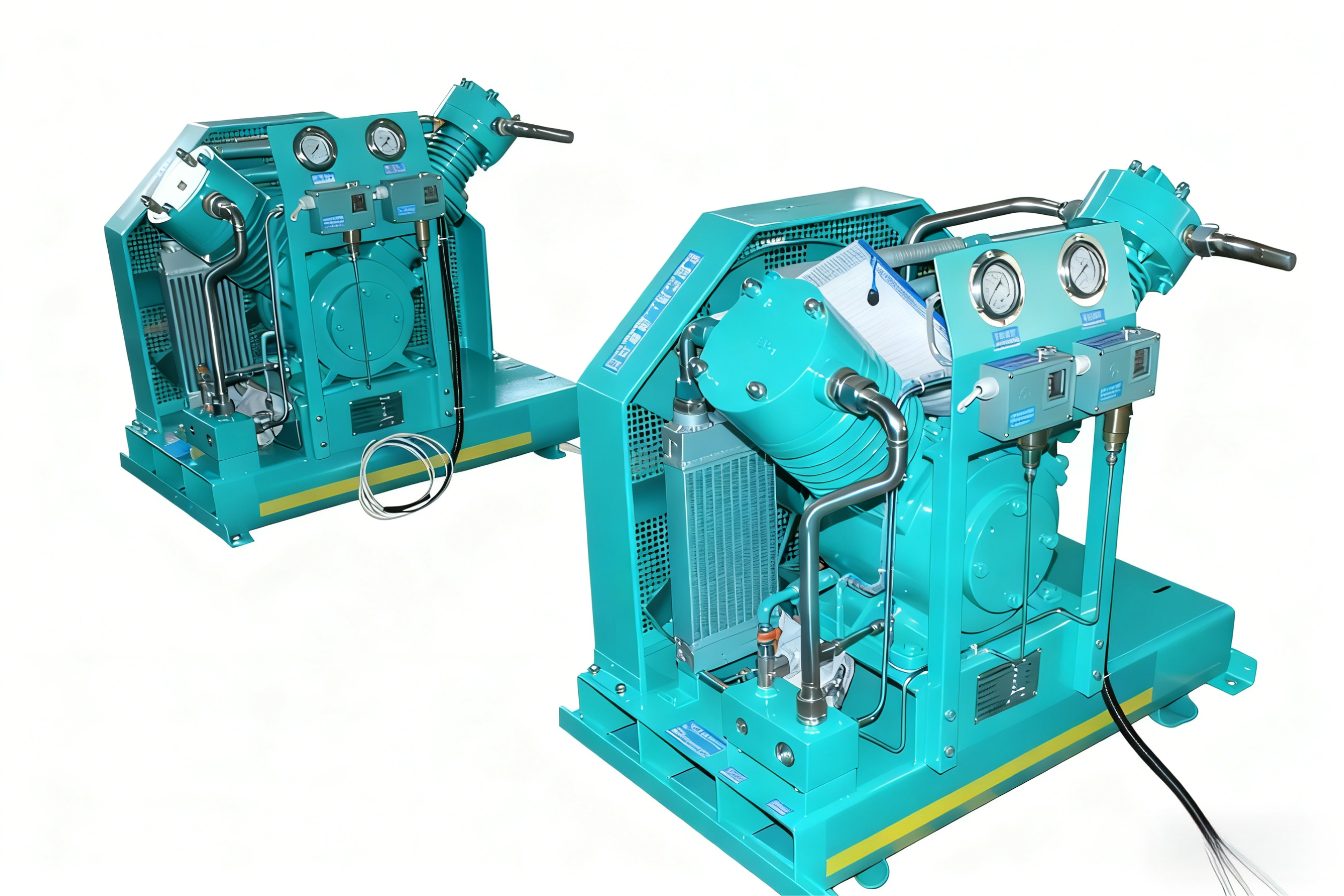

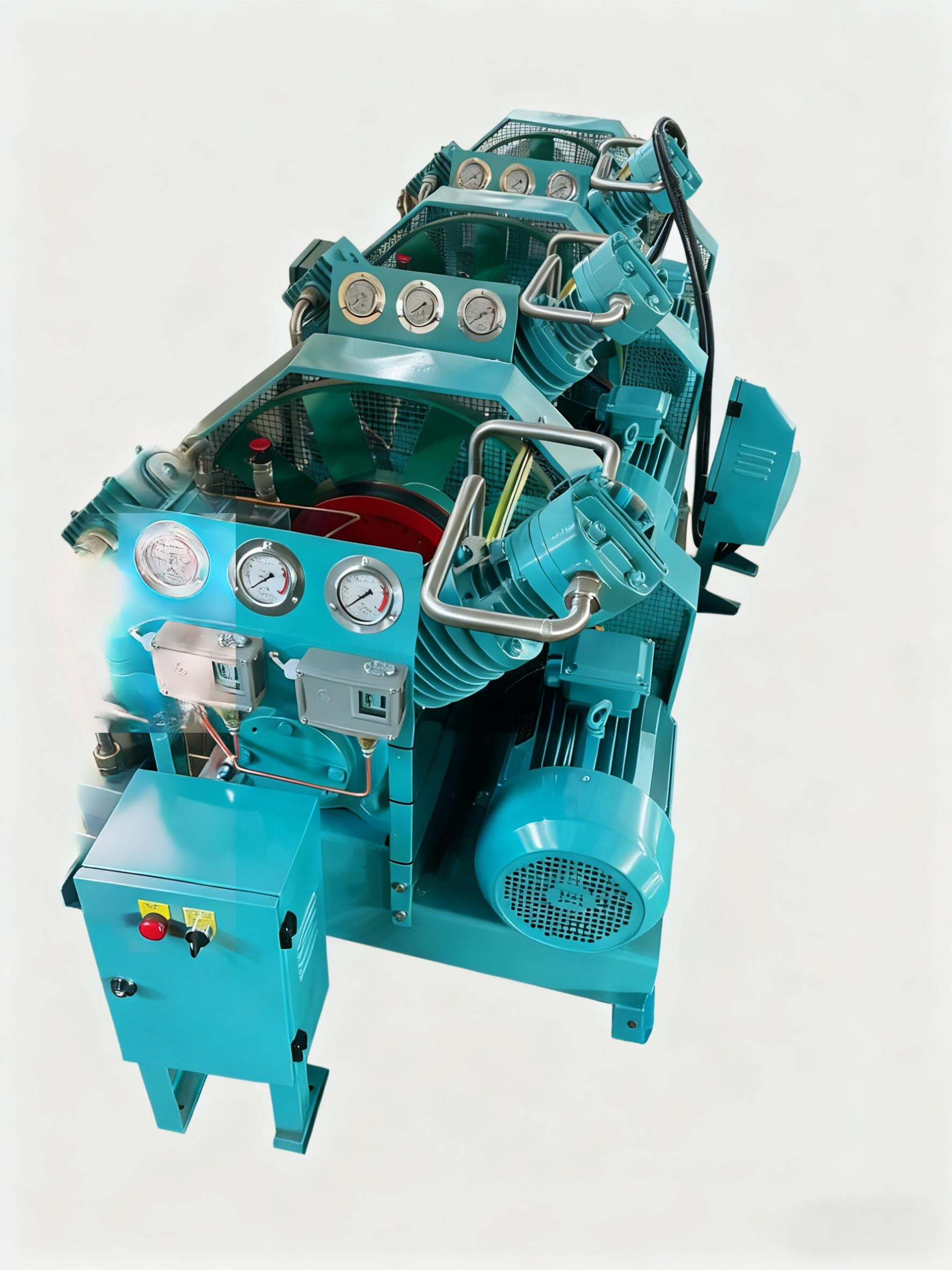

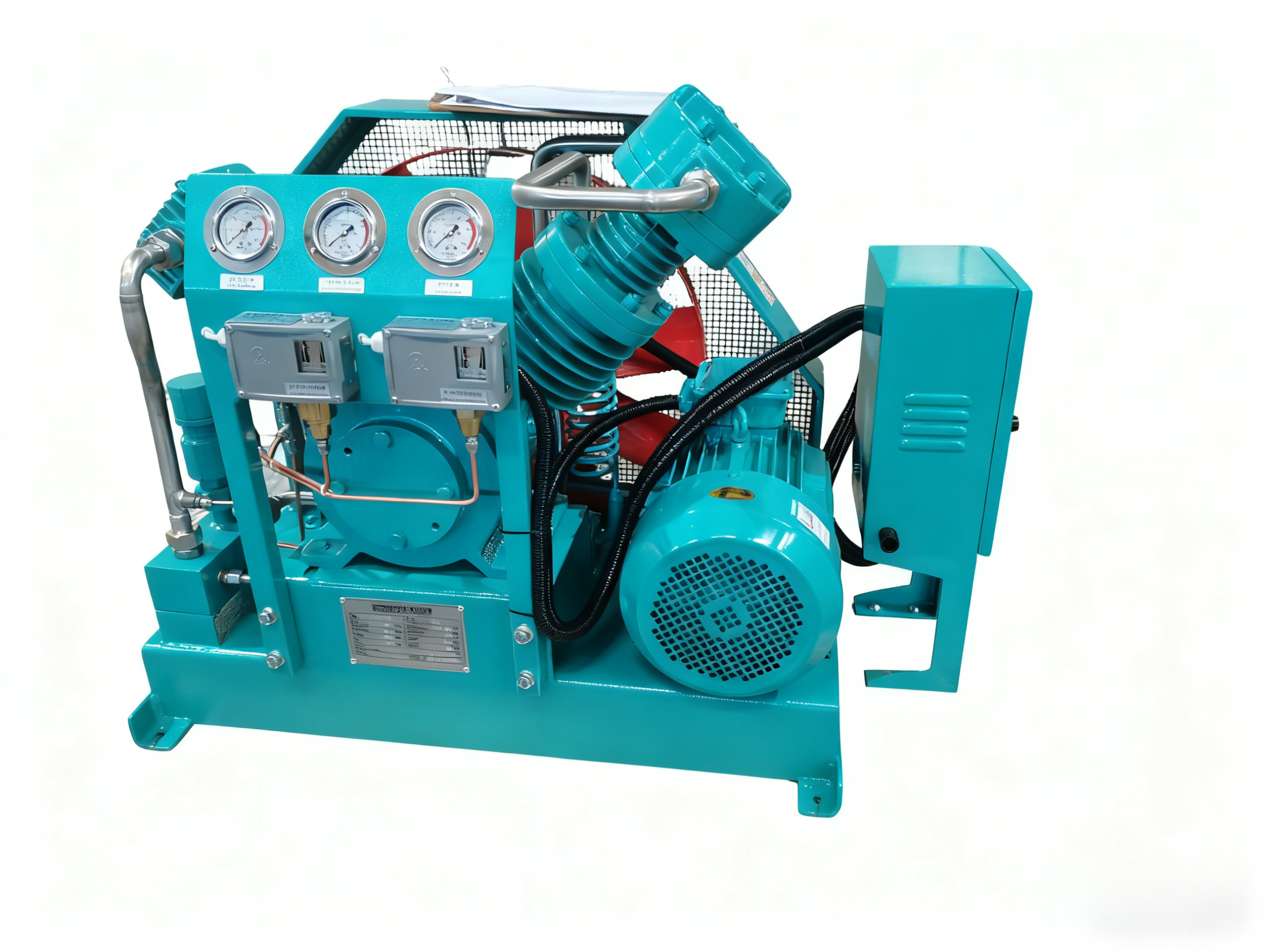

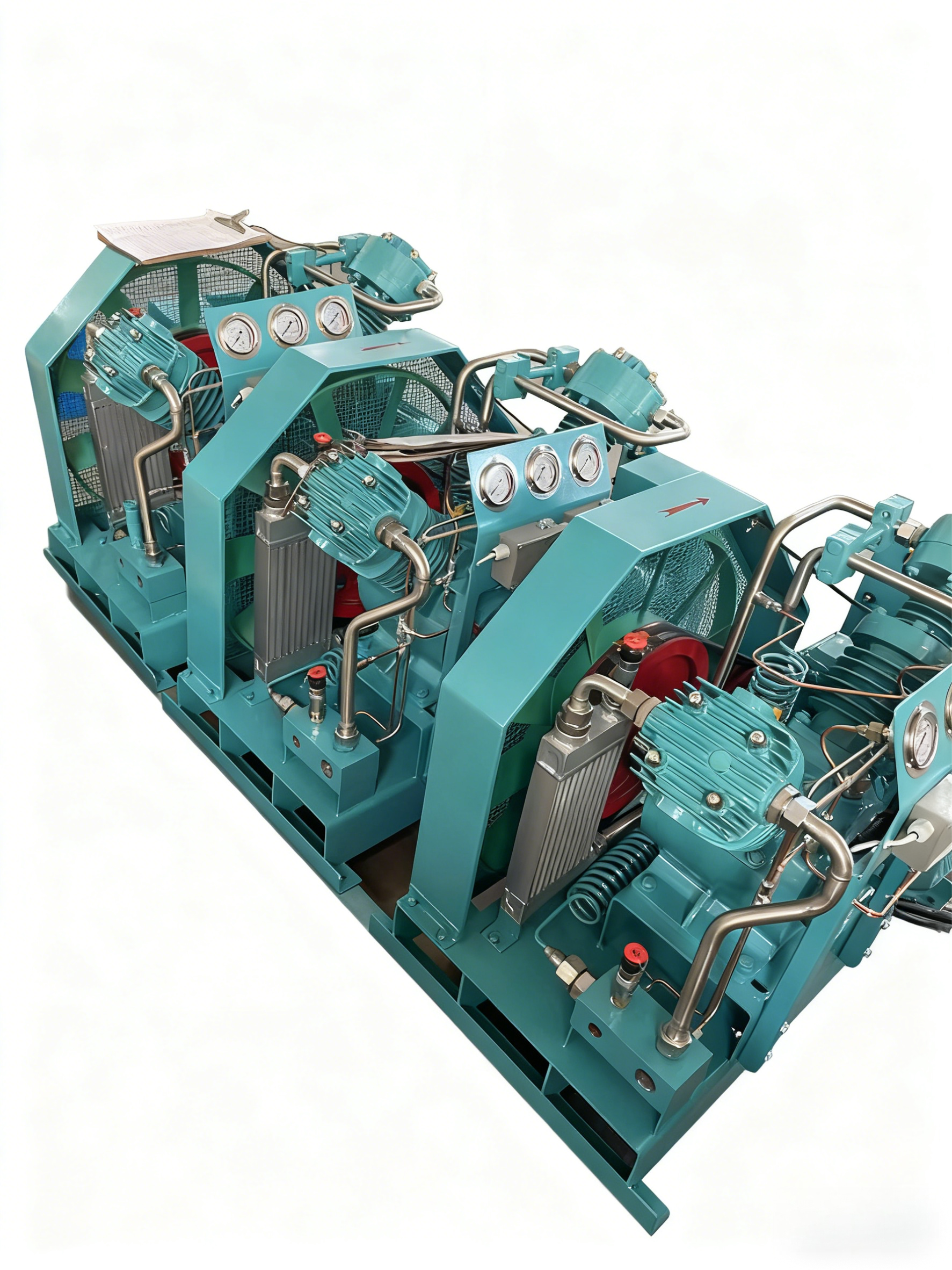

SF6 Gas Compressor

SF6 Gas Compressor

Our SF6 compressor series is specifically engineered for the safe and efficient recovery of sulfur hexafluoride gas from circuit breakers and electrical equipment. Featuring 100% oil-free operation with advanced magnetic fluid sealing technology, these compressors ensure zero gas contamination while maintaining the highest purity standards for SF6 gas recycling. Ideal for power utilities and electrical maintenance applications, they provide reliable, pollution-free performance with comprehensive safety protection systems.

￥ 0.00
0.00
Quantity：
Consultation


Our SF6 compressor series is specifically engineered for the safe and efficient recovery of sulfur hexafluoride gas from circuit breakers and electrical equipment. Featuring 100% oil-free operation with advanced magnetic fluid sealing technology, these compressors ensure zero gas contamination while maintaining the highest purity standards for SF6 gas recycling. Ideal for power utilities and electrical maintenance applications, they provide reliable, pollution-free performance with comprehensive safety protection systems.

SF6 compressor, sulfur hexafluoride compressor, SF6 gas recycling compressor, SF6 recovery system

Key Features

  • 100% Oil-Free Operation: Self-lubricating materials prevent gas contamination

  • Magnetic Fluid Sealing: Advanced shaft sealing prevents SF6 gas leakage

  • High-Pressure Capability: Maximum discharge pressure up to 5 MPa (720 Psig)

  • Multi-Voltage Compatibility: Customizable for global electrical standards

  • Low Noise & Vibration: Fully balanced design for quiet operation

  • Continuous Operation: Engineered for 24/7 reliable performance

  • Easy Maintenance: Long-life bearings with minimal maintenance requirements

  • Compact Design: Space-saving structure with easy installation

    Safety Features

  • Leak-proof magnetic sealing technology

  • Complete pressure protection systems

  • Dry, particulate-free gas handling capability

  • Emergency shutdown functionality

  • Environmental pollution prevention

TECHNICAL SPECIFICATIONS

ModelWorking MediumSuction PressureDischarge PressureMotor PowerFlow RateVoltageCooling Method
2.5/1-50SF60.1 MPa, 14 Psig5 MPa, 720 Psig1.5 kW2.5 Nm³/hMulti-voltage*Air Cooling
5/1-25SF60.1 MPa, 14 Psig0.8 MPa, 115 Psig1.5 kW5 Nm³/hMulti-voltage*Air Cooling
6/1-50SF60.1 MPa, 14 Psig5 MPa, 720 Psig3 kW6 Nm³/hMulti-voltage*Air Cooling
12/1-50SF60.1 MPa, 14 Psig5 MPa, 720 Psig5.5 kW12 Nm³/hMulti-voltage*Air Cooling
15/1-25SF60.1 MPa, 14 Psig2.5 MPa, 360 Psig4 kW15 Nm³/hMulti-voltage*Air Cooling
15/2-30SF60.2 MPa, 28 Psig3.0 MPa, 430 Psig4 kW15 Nm³/hMulti-voltage*Air Cooling
SFV-20/2-50SF60.2 MPa, 28 Psig5 MPa, 720 Psig5.5 kW20 Nm³/hMulti-voltage*Air Cooling

*Voltage options: 220V/380V/415V/440V 50/60Hz/customized


Applications

  • SF6 circuit breaker maintenance and repair

  • Electrical substation equipment servicing

  • Power utility gas recovery systems

  • High-voltage switchgear maintenance

  • SF6 gas recycling and purification plants
