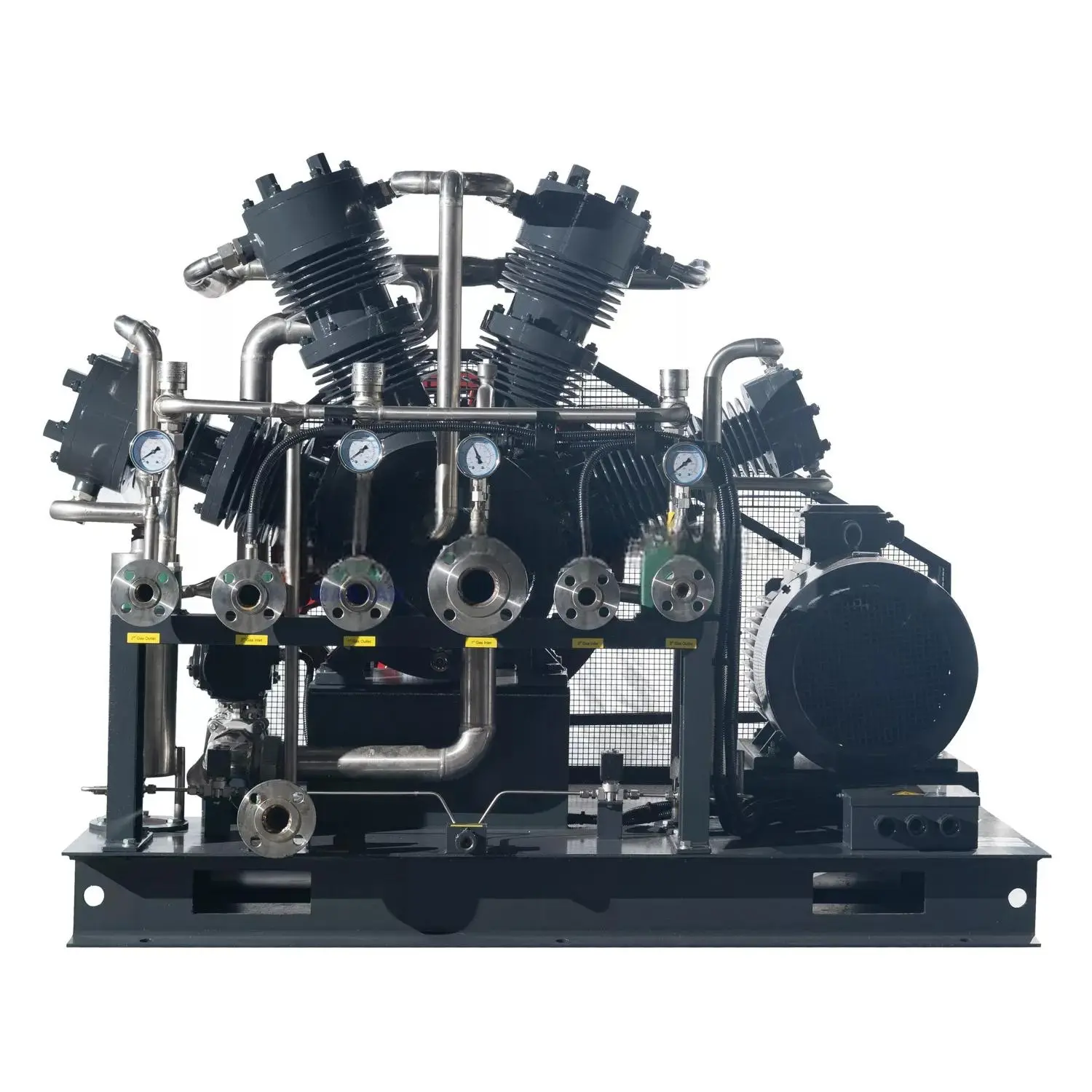

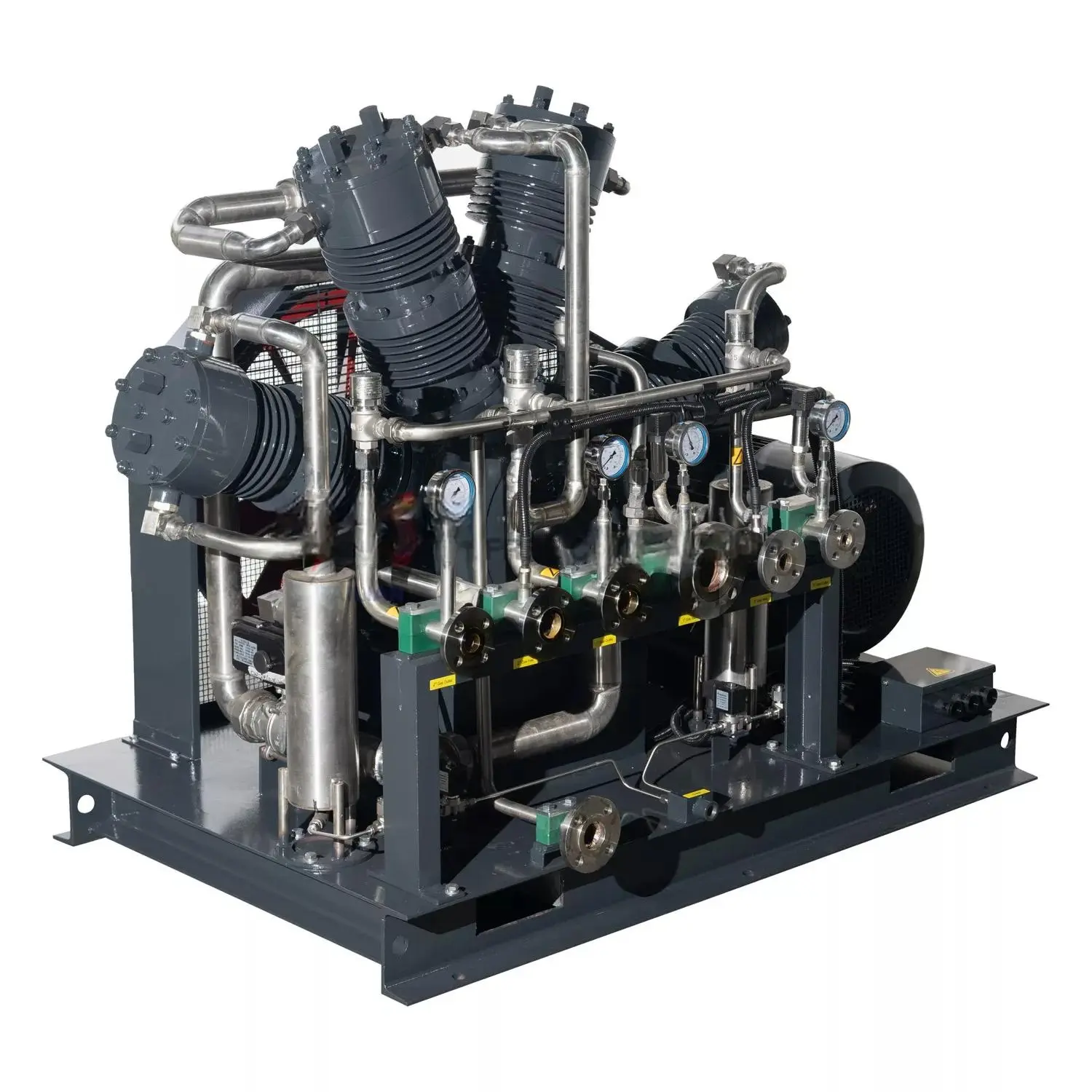

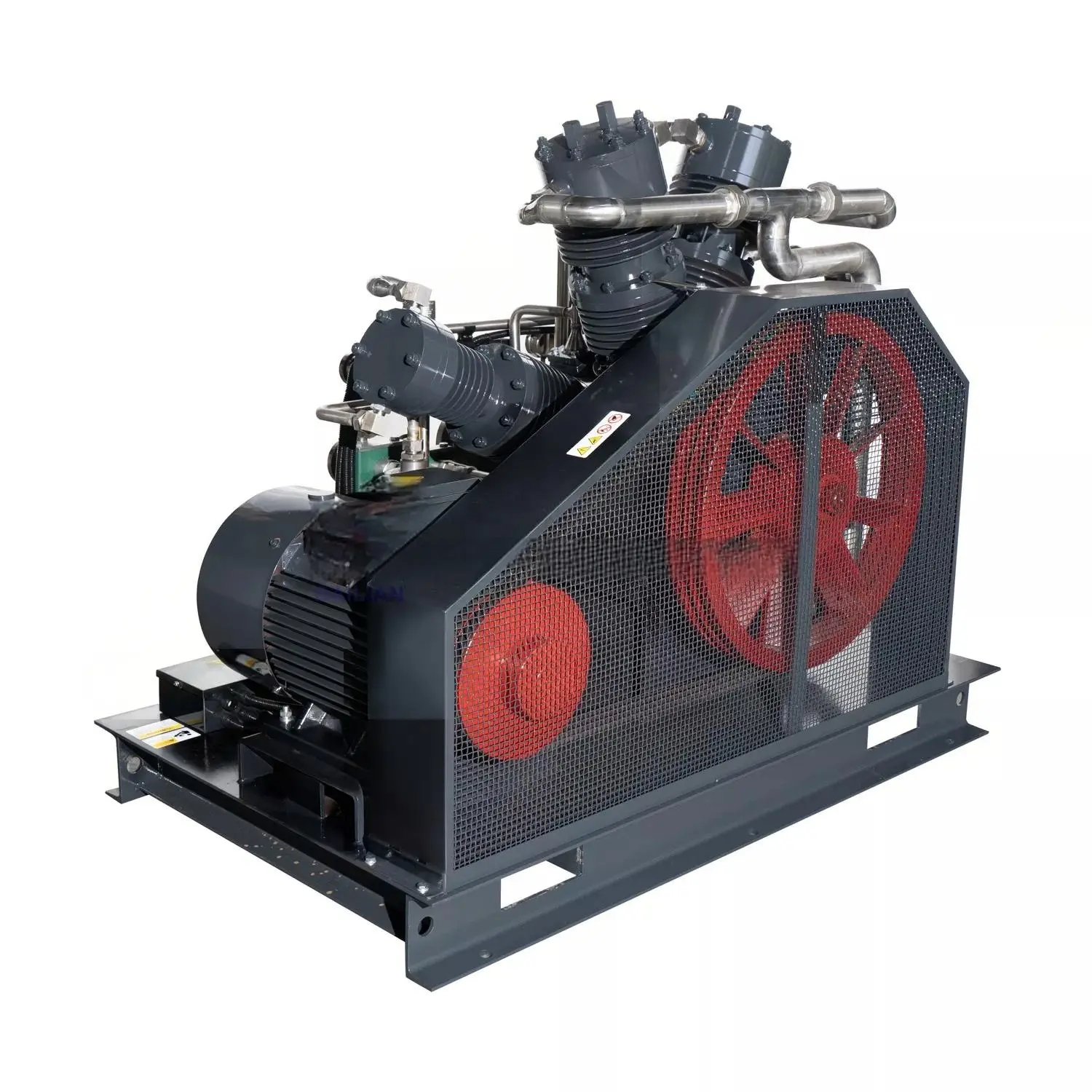

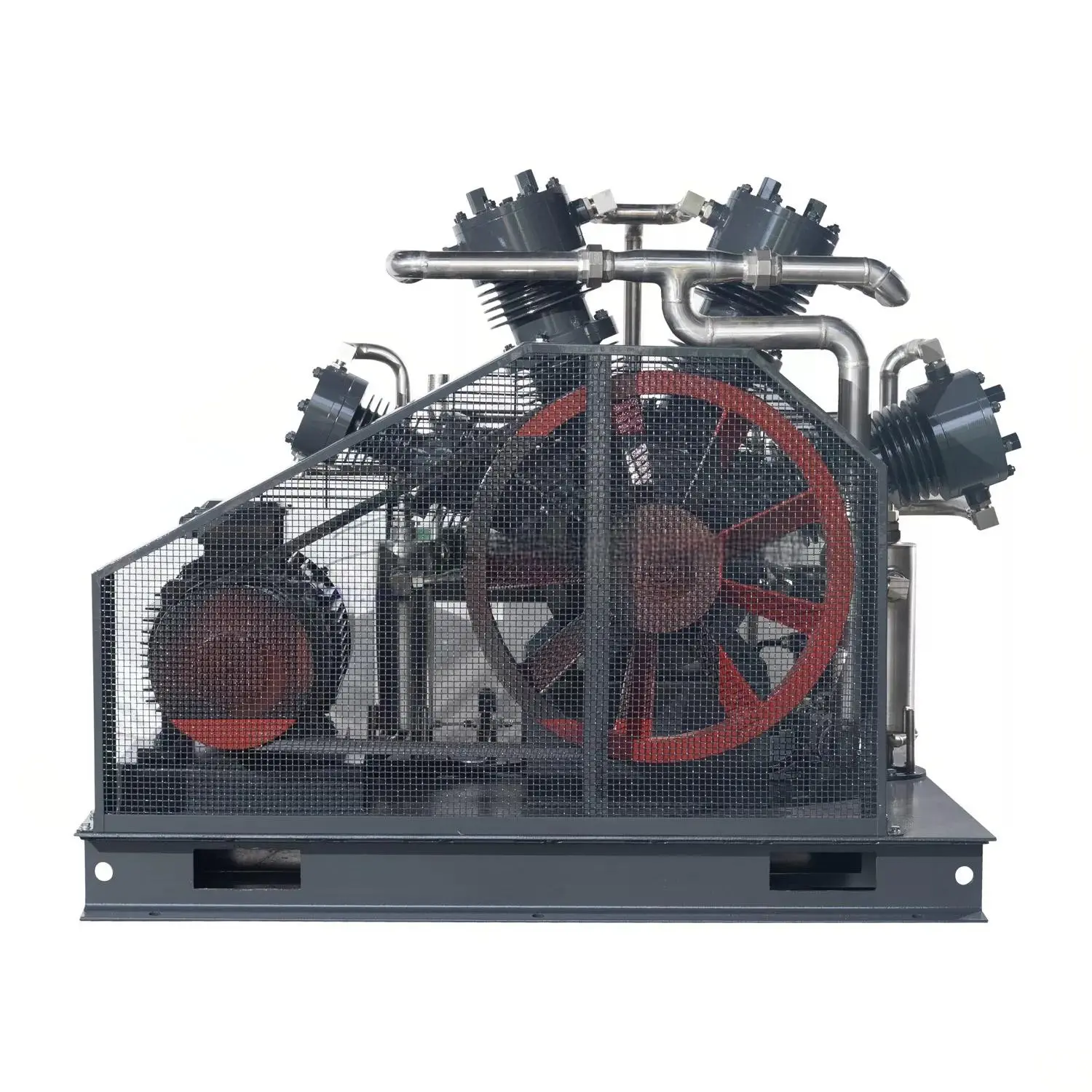

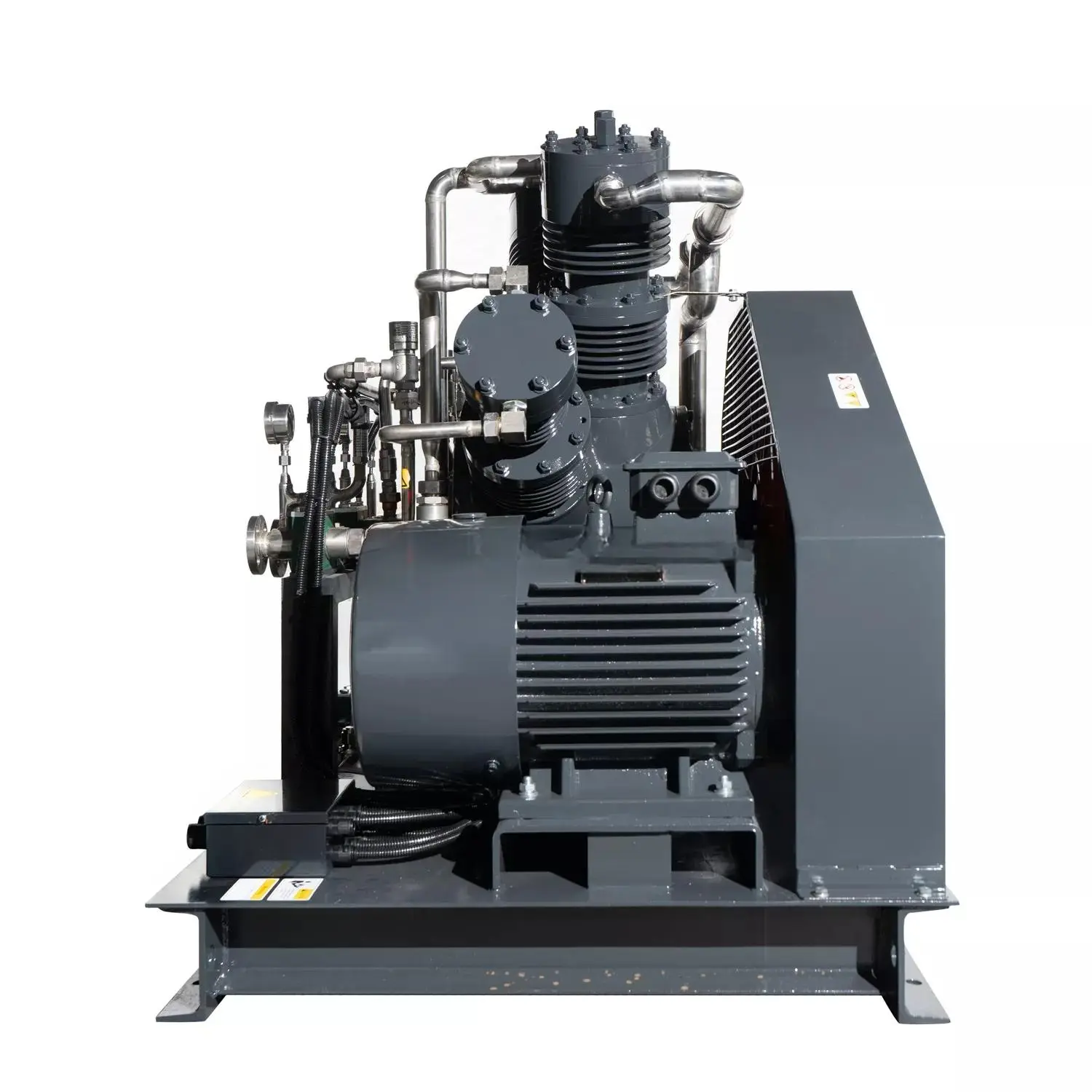

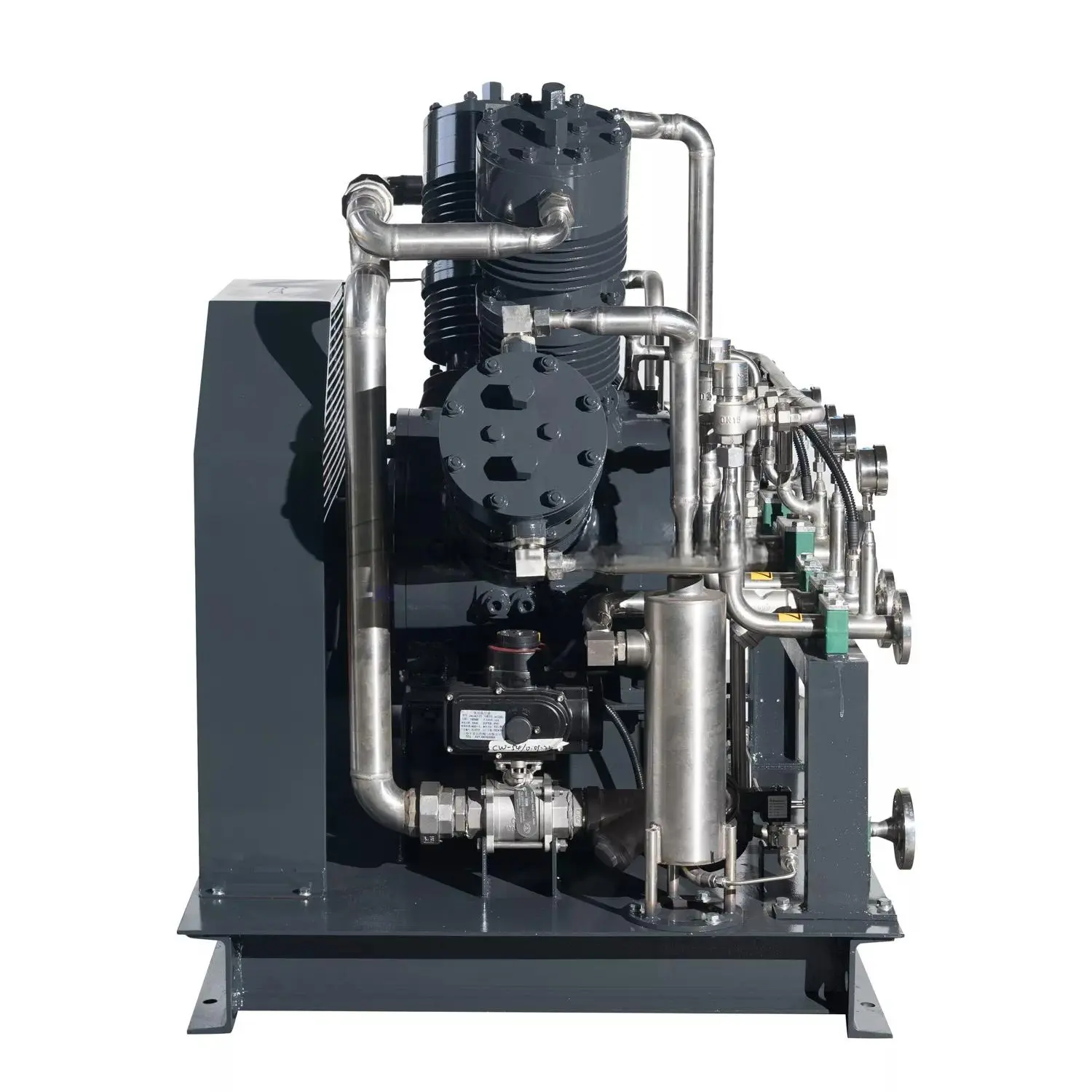

54 Nm³/h 100% Oil Free CO₂ Gas Compressor

54 Nm³/h 100% Oil Free CO₂ Gas Compressor

Oil-Free CO₂ Compressor is specifically engineered for carbon dioxide gas recovery and supercritical fluid extraction applications. Featuring a unique fan-type cooling system and three-stage compression technology, this compressor efficiently handles both negative and positive intake pressures while delivering pure, oil-free CO₂ output. The robust design with stainless steel gas path components ensures reliable performance in demanding industrial environments.

￥ 0.00
0.00
Quantity：
Consultation


Oil-Free CO₂ Compressor is specifically engineered for carbon dioxide gas recovery and supercritical fluid extraction applications. Featuring a unique fan-type cooling system and three-stage compression technology, this compressor efficiently handles both negative and positive intake pressures while delivering pure, oil-free CO₂ output. The robust design with stainless steel gas path components ensures reliable performance in demanding industrial environments.

Key Features

  • 100% Oil-Free Operation: PTFE-filled piston rings and guide rings prevent gas contamination

  • Wide Pressure Range: Handles intake pressure from -0.03 to +0.09 MPa(G)

  • Three-Stage Compression: Efficient pressure boost up to 2.2 MPa discharge pressure

  • Advanced Cooling System: Fan-type air cooling for optimal temperature control

  • Versatile Application: Ideal for CO₂ recovery and supercritical fluid extraction

  • Robust Construction: Stainless steel gas components with cast iron crankcase

  • Energy Efficient: Optimized power consumption with 18.5 kW motor

TECHNICAL DATA

ParameterSpecificationParameterSpecification
MediumCO₂ GasQuantity1
Intake Pressure-0.03 ~ +0.09 MPa(G)Intake Temperature0~40 °C
Discharge Pressure2.2 MPa(G)Exhaust Temperature≤60 °C
Flow Rate54 Nm³/hPiston Stroke90 mm
ModelCW-54/0.1-2.2Compression Stages3
Structural TypeSW Fan Sleigh MountedNumber of Cylinders4
Shaft Speed570 rpmVoltage400 V
Cooling MethodAir CoolingCooling Water Flow-
Shaft Power≤15.0 kWMotor Speed1460 rpm
Main Motor18.5 kW, 400 V, 50 Hz

Dimensions1700×1050×1450 mmUnit Weight0.88 T
Interface SizeInlet DN60 / Outlet DN15

Drive ModeBelt Drive

Main Components Material


– Gas Valve, Pipes, ValvesStainless Steel

– Case, CrankshaftCast Iron

– Piston Ring, Guide RingFilled PTFE

Scope of Supply
Main engine, motor, cooler, skid-mounted chassis, start cabinet, air intake filter, safety valve, import and export matching flanges, documentation, etc.

Applications

  • CO₂ gas recovery systems

  • Supercritical fluid extraction

  • Carbon capture and utilization

  • Beverage carbonation

  • Industrial gas processing

Delivery Time: 40 days after contract signing and receipt of advance payment
