Key Features

⚡ Robust Performance

Capable of single-stage compression, efficiently boosting hydrogen pressure from 2.25 MPa(G) to 3.5 MPa(G) with a standard flow rate of 4200 Nm³/h. Designed for continuous duty in large-scale industrial applications.

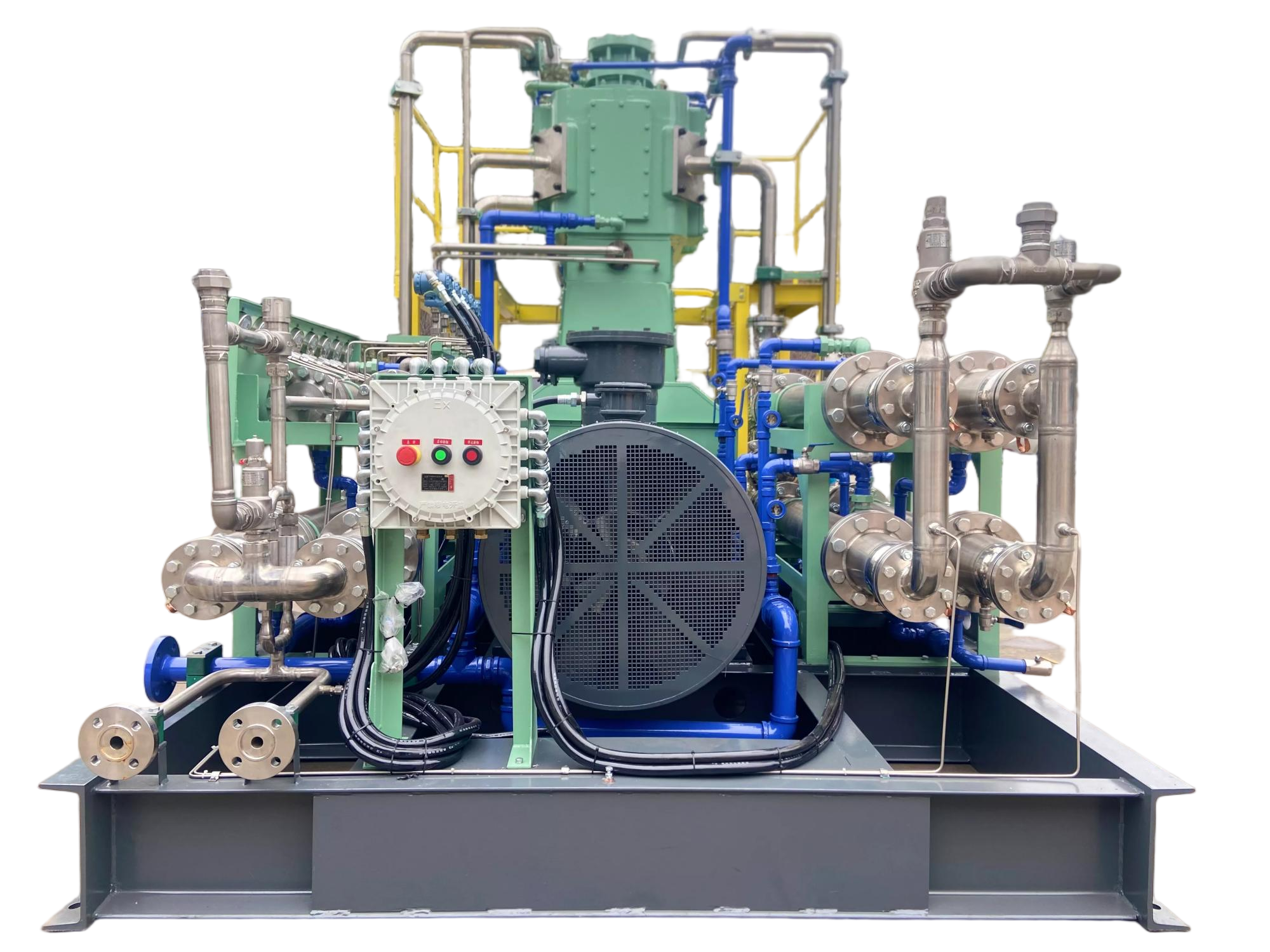

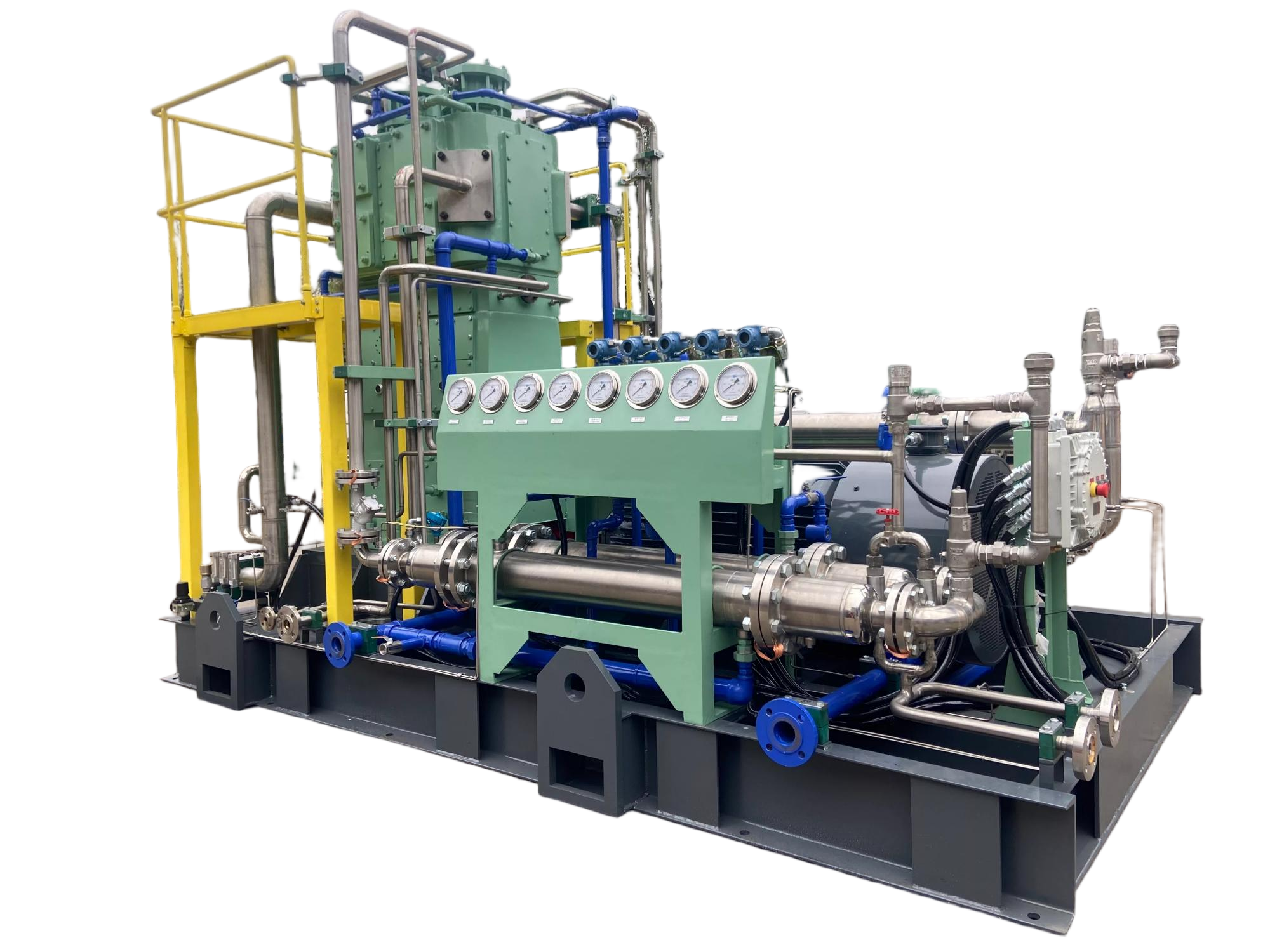

🏗️ Compact & Integrated Skid-Mounted Design

Vertical, skid-mounted configuration ensures a minimal installation footprint, simplified transportation, and reduced on-site assembly time and costs. Ready for quick deployment.

🌡️ Efficient Water Cooling System

Maintains a stable discharge temperature below 45°C after cooling, ensuring operational integrity, protecting downstream equipment, and extending service life.

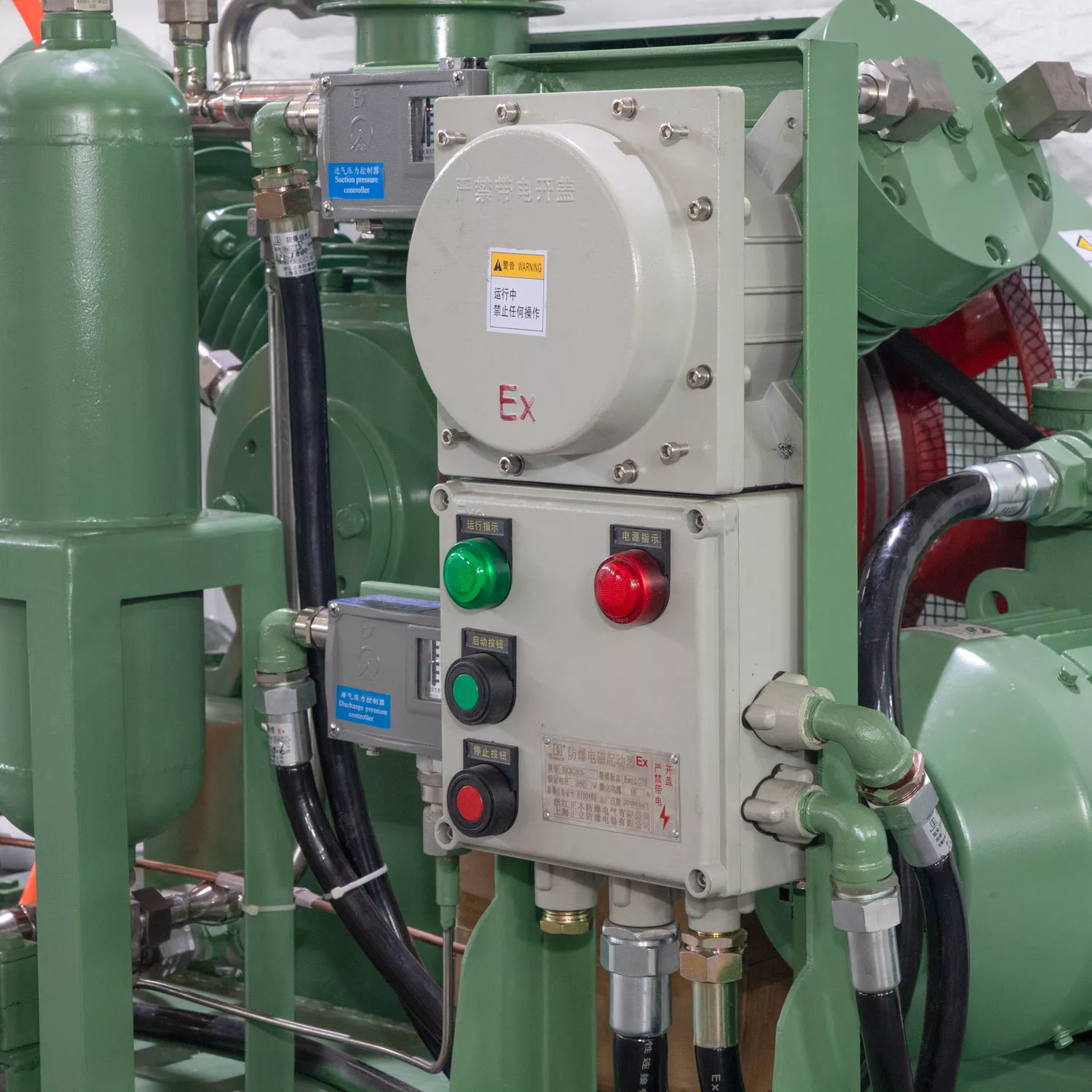

🔥 Explosion-Proof Motor

Powered by a 132 kW motor with ExdIICT4 protection rating, certified for safe operation in hazardous environments involving flammable gases.

🛡️ Premium Material Selection

• Critical components (air valves, cylinder liners): Stainless steel

• Piston rings & packing: PTFE-filled for excellent corrosion resistance, low wear, and long-term durability

• Ensures reliability and minimal maintenance in aggressive hydrogen service.

Technical Specifications

Standard Scope of Supply

The compressor is supplied as a complete, pre-assembled package, including:

• Main compressor unit

• Explosion-proof motor

• Cooler and oil pump system

• Skid-mounted chassis

• Starter cabinet with primary controls

• Intake filter

• Safety valve and instrumentation

• Special tools

• Inlet/outlet matching flanges

• Relevant documentation (manuals, certificates)

Typical Applications

• Hydrogen Energy Storage & Transportation Systems – Boosting hydrogen for pipeline injection or tube trailer filling

• Chemical Hydrogenation Processes – Providing high-pressure hydrogen for refineries and chemical plants

• Fuel Cell Hydrogen Supply – Supporting large-scale fuel cell power generation and vehicle refueling stations

• General Industrial Gas Boosting – Pressure increase for various industrial hydrogen applications

• Renewable Hydrogen Integration – Compression for green hydrogen from electrolysis projects

Important Notes for Operation

1. Nitrogen Seal System

The piston rod is sealed with nitrogen. A continuous, reliable nitrogen supply must be provided on-site to ensure proper sealing and safe operation.

2. Lubricating Oil

Lubricating oil for the crankcase and moving parts is to be provided by the user as per manufacturer specifications.

3. Explosion-Proof Installation

All on-site electrical installations must comply with the ExdIICT4 standard to maintain certification and ensure safety in hazardous areas.

4. Cooling Water Requirements

Ensure a consistent cooling water supply of 12 t/h with appropriate pressure and temperature conditions to maintain optimal operating temperatures.

5. Foundation & Alignment

A proper concrete foundation and precise alignment are required during installation to prevent vibration and ensure long-term reliability.

Delivery & Customization

• Delivery Time: 100 days after contract signing and receipt of advance payment

• Customization Options:

• Voltage/frequency adaptation (e.g., 415V, 480V, 60Hz)

• Alternative pressure and flow configurations

• Additional instrumentation and control integration

• Special coating or material upgrades for corrosive environments
