KEY FEATURES

Ultra-High Pressure Performance

• Four-Stage Compression technology delivers 40.0 MPa discharge pressure

• 480 Nm³/h flow capacity for large-scale industrial requirements

100% Oil-Free Operation

• PTFE-filled piston rings and packings ensure contaminant-free gas output

• Stainless steel components prevent corrosion and maintain gas purity

Advanced Drive System

• 132kW Permanent Magnet Motor with SF1.15 service factor

• High efficiency with significant energy savings compared to conventional motors

• Direct coupling drive for reliable power transmission

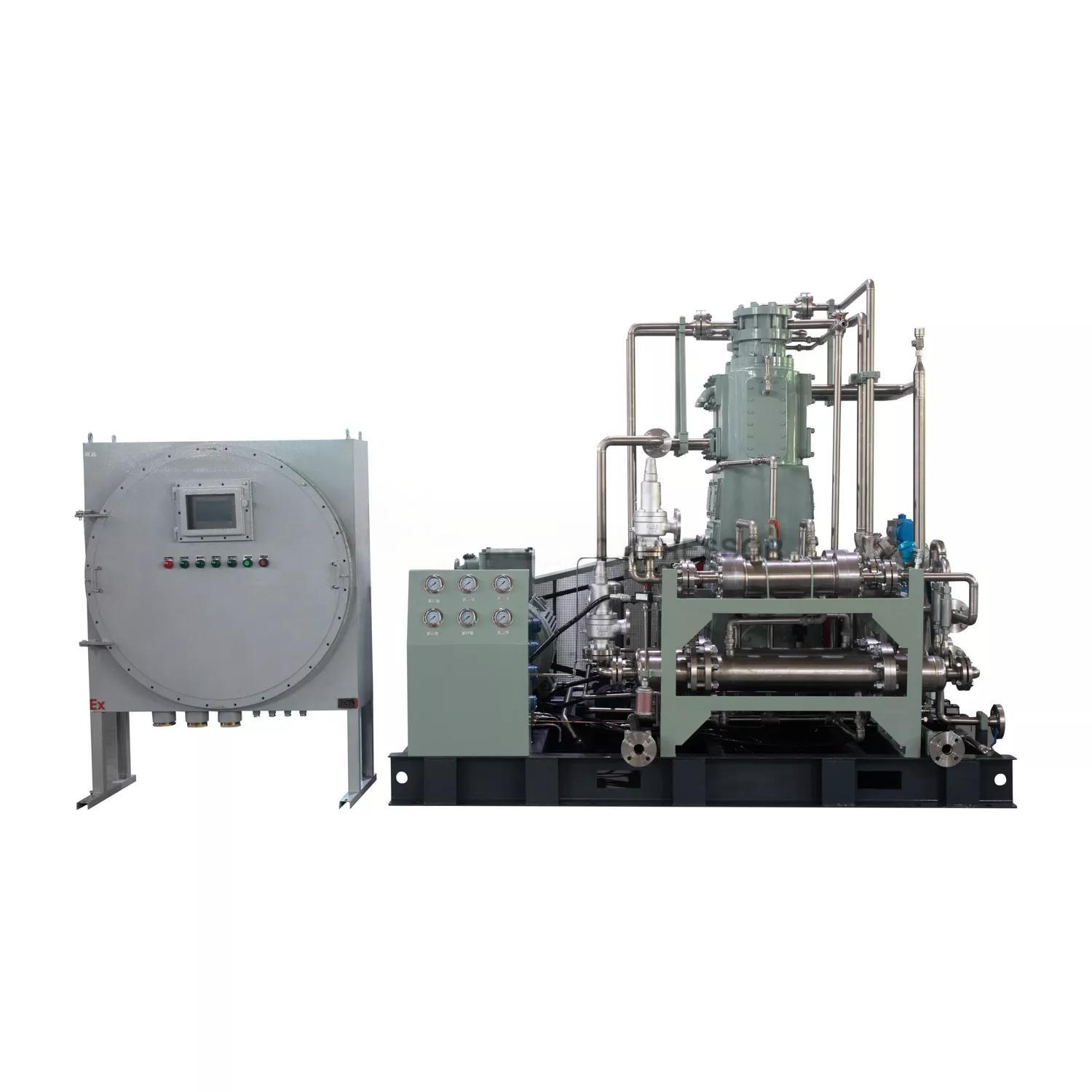

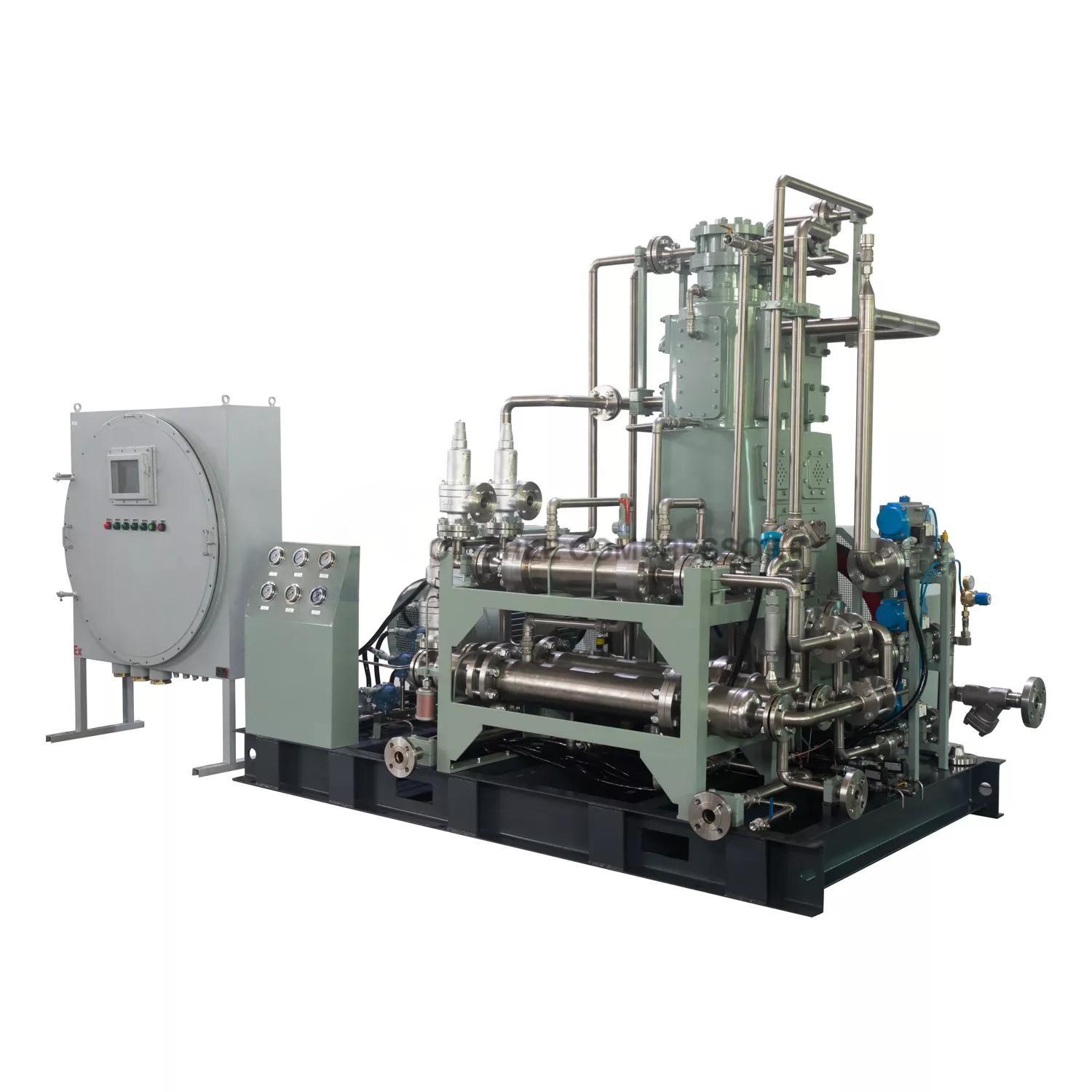

Complete Skid Package

• Fully integrated compressor, motor, cooler, and control system

• Pre-assembled chassis reduces installation time and costs

• Siemens PLC control system for precise operation monitoring

Maintenance-Optimized Design

• Air-cooled system eliminates cooling water requirements

• Vertical configuration saves floor space

• Accessible components for easy maintenance

TECHNICAL SPECIFICATIONS

Operating Parameters

• Inlet Temperature: 0-35°C

• Discharge Temperature: ≤55°C

• Voltage: 380V/50Hz

• Cylinder Quantity: 4

• Structural Style: Vertical Skid-Mounted

CONSTRUCTION MATERIALS

• Frame & Slide: High-strength Cast Iron

• Piston Rings & Packing: Filled PTFE

• Air Valve & Cylinder Liner: Stainless Steel

SCOPE OF SUPPLY

• Main compressor engine with permanent magnet motor

• Air cooler and lubrication system

• Skid-mounted chassis with vibration damping

• Starter cabinet with Siemens PLC control

• Intake filtration system

• Safety valves and instrumentation

• Special tools and documentation

• Inlet/outlet matching flanges

QUALITY COMPONENTS

• PLC System: Siemens

• Safety Valves: Zhejiang Wanneng

• Motor: Luv-electric/Anhui Xuanlida

• Instrumentation: Changzhou Tianli pressure controllers

• Electrical: Zhengtai components

• Display: Kunluntrongtai touch screen

APPLICATIONS

• High-pressure nitrogen systems for industrial plants

• Petrochemical processing and refinery applications

• Energy and power generation facilities

• Industrial gas supply and distribution

• Pressure testing systems and research facilities

OPERATIONAL NOTES

• Lubricating oil to be provided by user (use low-temperature lubricant when ambient temperature below 5°C)

• Delivery Time: 100 days after order confirmation and advance payment

• Technical data marked with % may vary upon factory shipment

• Installation: Pre-assembled skid requires minimal site preparation

WHY CHOOSE THIS COMPRESSOR?

• ✅ Industry-Leading Pressure: 40.0 MPa capability for demanding applications

• ✅ Energy Efficient: Permanent magnet motor reduces operating costs

• ✅ Zero Contamination: 100% oil-free design ensures gas purity

• ✅ Reliable Operation: Premium components and robust construction

• ✅ Quick Deployment: Skid-mounted design minimizes installation time

•
