45m³ Oil-Free Oxygen Compressor

45m³ Oil-Free Oxygen Compressor

45m³ Oil-Free Oxygen Compressor Product Overview The oil-free oxygen compressor is a high-pressure gas compression device specifically designed for drying oxygen media. It employs a four-stage compression and oil-free lubrication structure, ensuring pure and uncontaminated gas during compression, making it suitable for industrial applications with strict requirements for gas purity. The unit has a compact structure, is easy to install, and operates stably, widely used in medical, chemical, metal processing, and scientific research fields.

￥ 0.00
0.00
Quantity：
Consultation


45m³ Oil-Free Oxygen Compressor Product Overview The oil-free oxygen compressor is a high-pressure gas compression device specifically designed for drying oxygen media. It employs a four-stage compression and oil-free lubrication structure, ensuring pure and uncontaminated gas during compression, making it suitable for industrial applications with strict requirements for gas purity. The unit has a compact structure, is easy to install, and operates stably, widely used in medical, chemical, metal processing, and scientific research fields.

OIL-FREE HIGH-PRESSURE OXYGEN COMPRESSOR
*Model 45/4-150 | 45 Nm³/h | 15.0 MPa*

PRODUCT HIGHLIGHTS

  • 100% Oil-Free Operation
    Sealed grease lubrication technology ensures zero oil contamination, guaranteeing pure oxygen output and eliminating combustion risks.

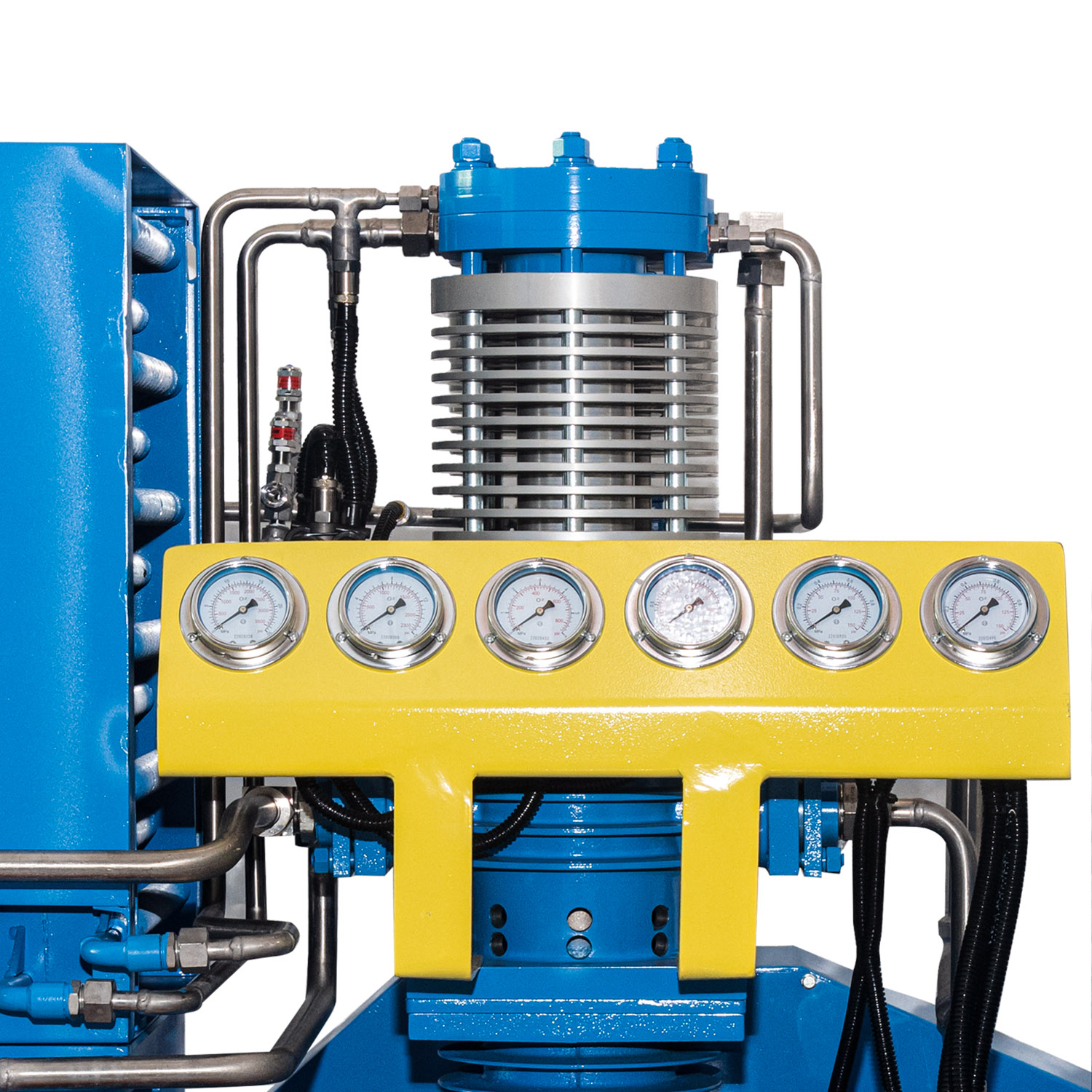

  • Four-Stage Compression
    Efficiently boosts pressure from atmospheric level to 15.0 MPa with stable, reliable performance and controlled temperature rise.

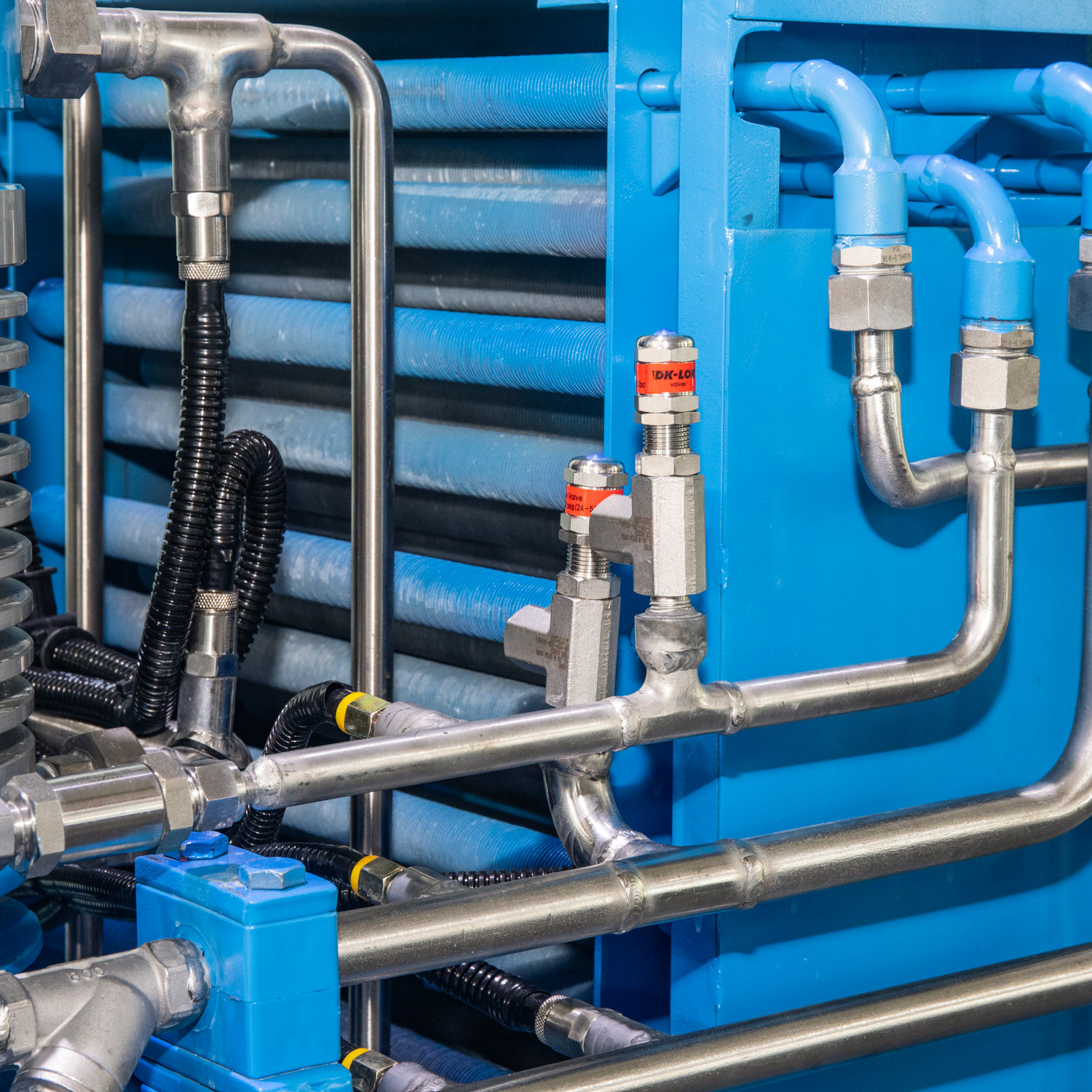

  • Maintenance-Free Air Cooling
    Self-contained air cooling system eliminates water requirements, reducing installation complexity and operating costs.

  • Built-In Safety Protection
    Automatic overpressure shutdown protects both compressor and downstream systems from damage.

  • Adaptable Belt Drive
    Smooth power transmission with easy maintenance and compatibility with various operating conditions.

TECHNICAL SPECIFICATIONS

ParameterSpecification
Model45/4-150
Flow Capacity45 Nm³/h
Inlet Pressure0.2 - 0.45 MPa(G)
Outlet Pressure15.0 MPa(G)

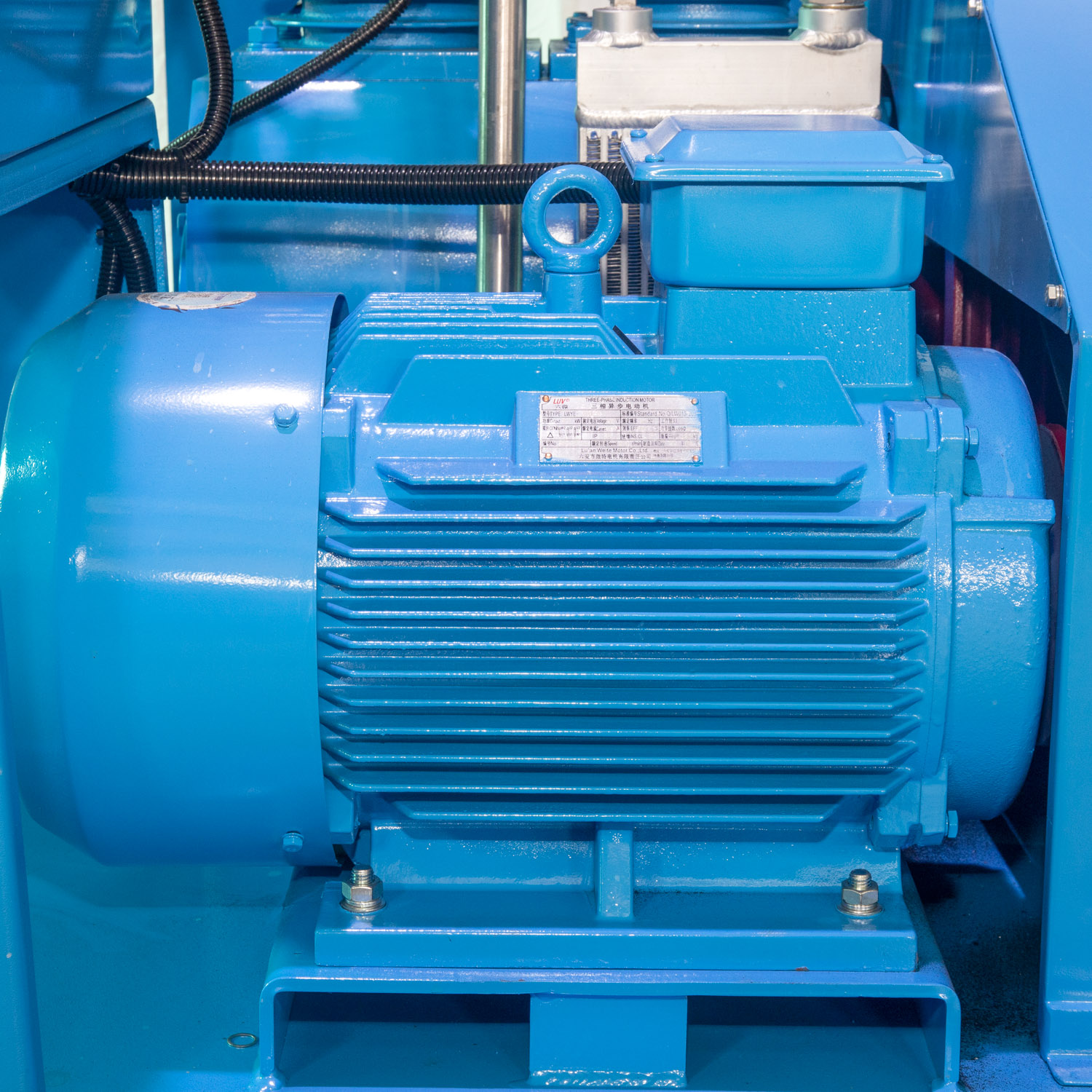

Motor Power15 kW
Compression Stages4
Cooling MethodAir-Cooling
Drive SystemBelt Driven

Temperature Parameters

  • Inlet Gas Temperature: ≤ 35°C

  • Discharge Temperature: ≤ 130°C (pre-cooling)

  • Supply Temperature: ≤ 55°C (post-cooling)

Physical Specifications

  • Dimensions: 1500 × 350 × 1500 mm

  • Weight: 980 kg

  • Rotational Speed: 240 rpm

  • Inlet Connection: 25 mm

  • Outlet Connection: M10 × 1.5

Electrical & Control

  • Power Supply: 380V / 50Hz / 3 Phase (customizable)

  • Control System: Automatic overpressure shutdown

  • Installation: Integrated base frame

APPLICATIONS

  • Gas Boosting & Transfer
    Oxygen pressure boosting in industrial pipelines

  • High-Purity Gas Systems
    Medical and laboratory oxygen supply

  • Cylinder Filling Stations
    Industrial and medical oxygen cylinder charging

  • Process Gas Supply
    Chemical oxidation and manufacturing processes

OPERATIONAL BENEFITS

  • Quick Deployment
    Pre-assembled unit with simple base enables fast installation

  • Global Compatibility
    Customizable voltage options for international use

  • Low Maintenance
    Oil-free design and belt drive reduce service requirements

  • Space Efficient
    Compact footprint (1.5×0.35×1.5m) ideal for limited spaces

  • Rapid Delivery
    15-25 day lead time after order confirmation
