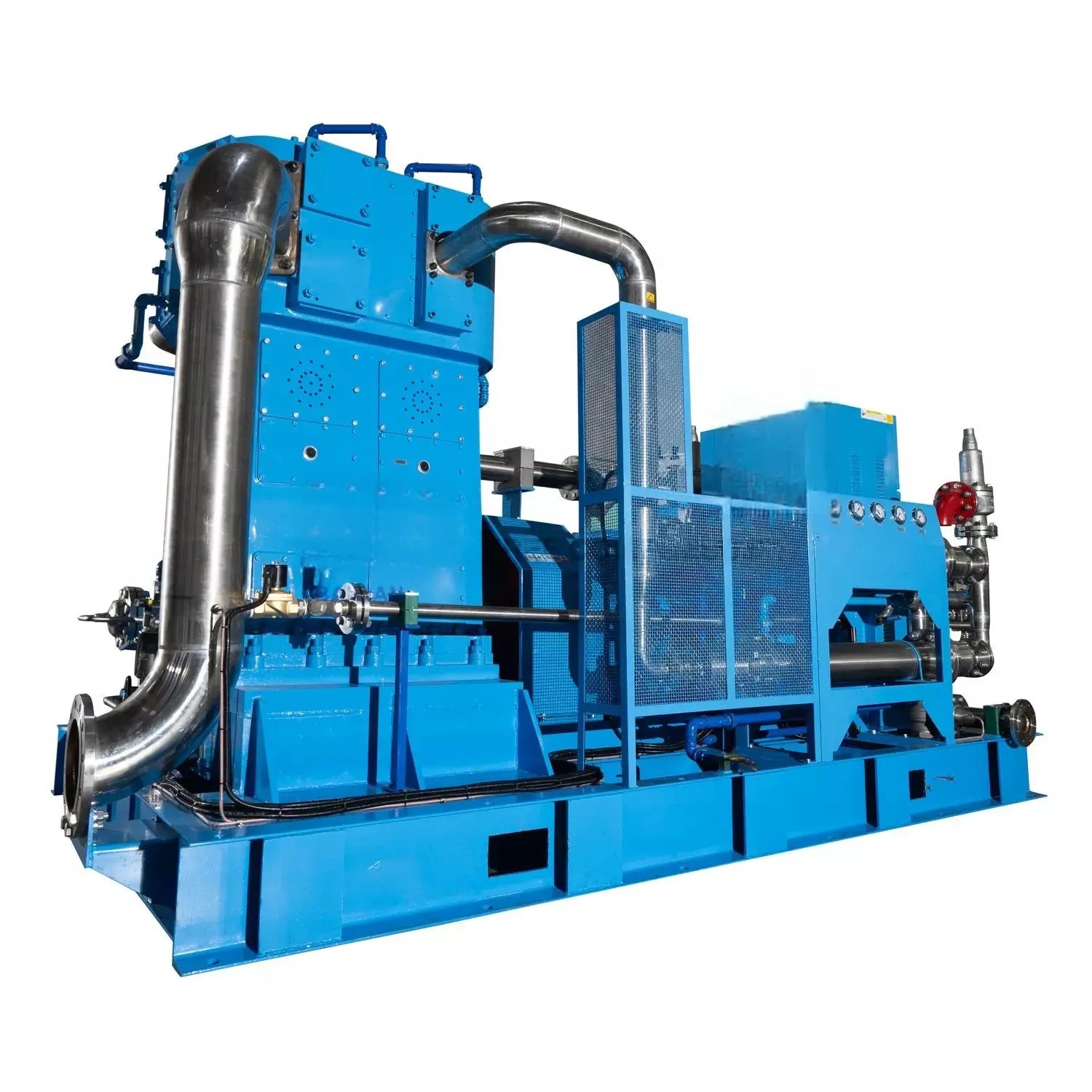

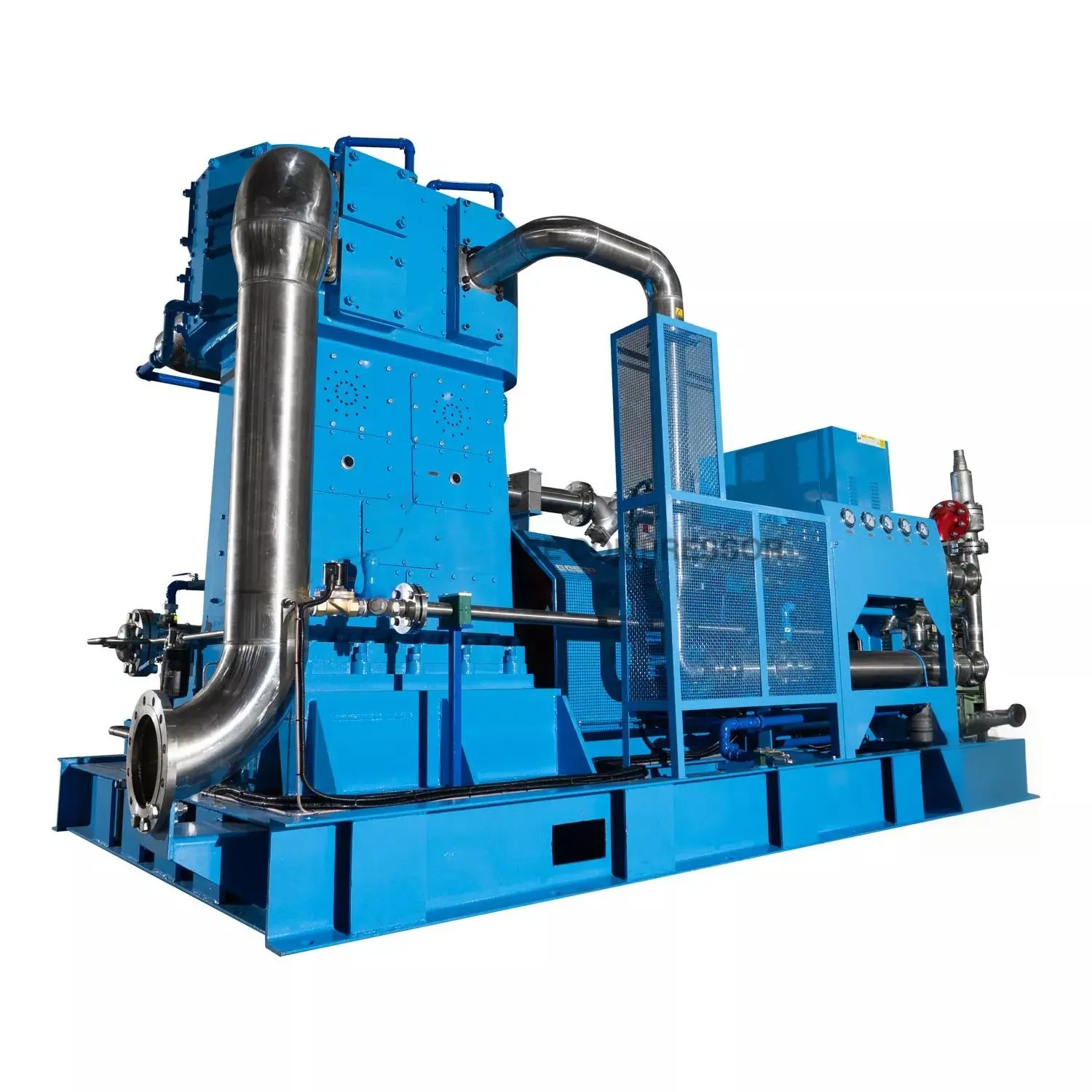

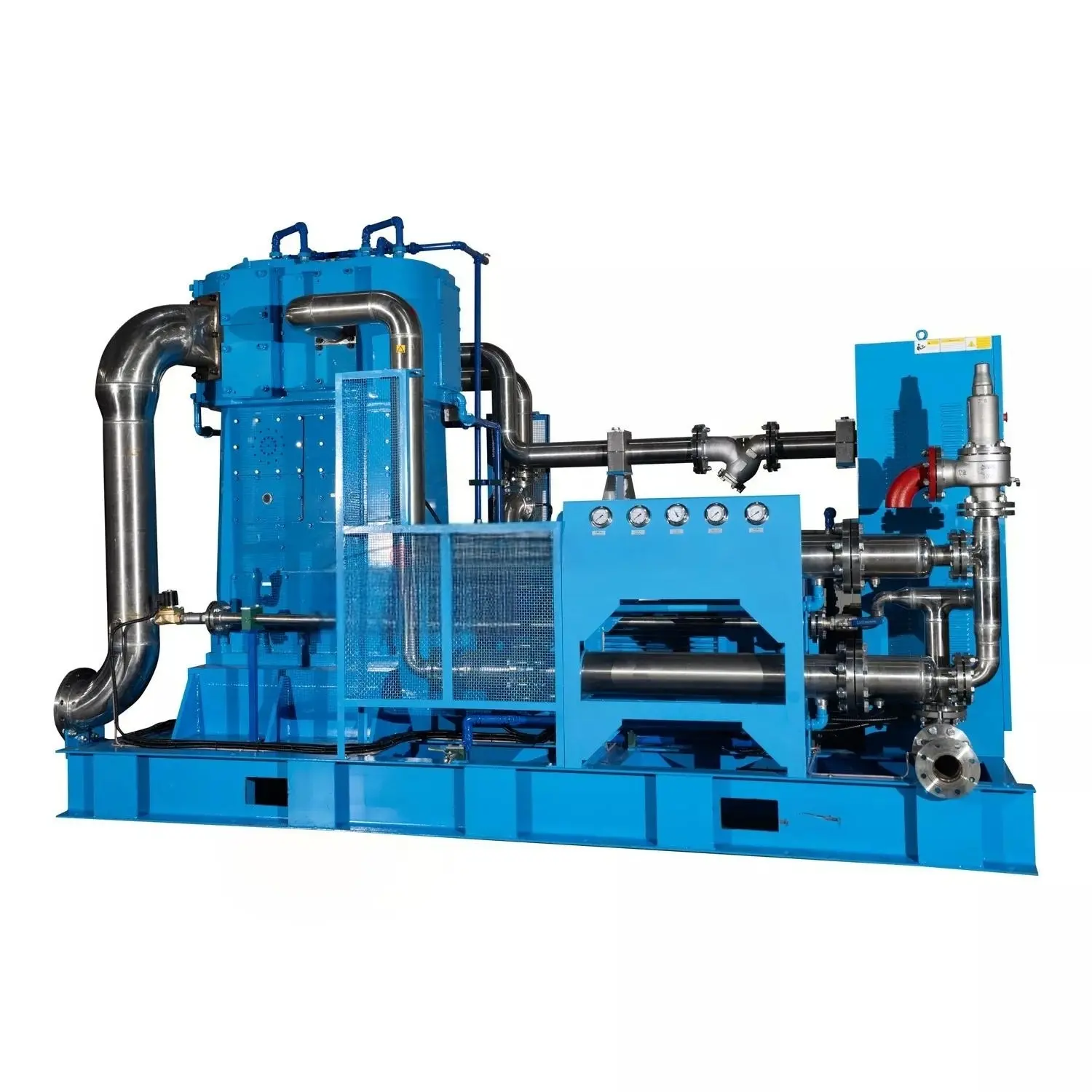

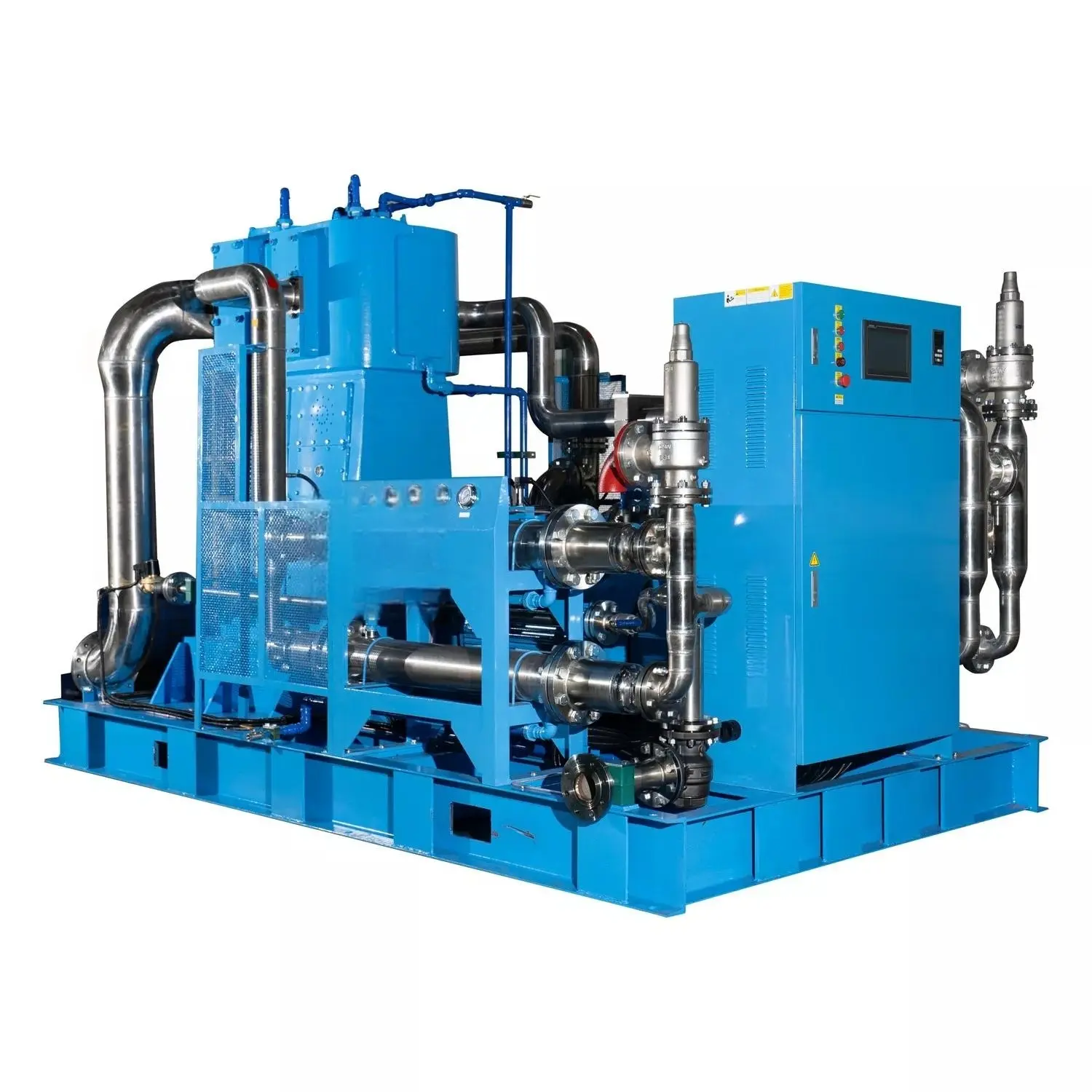

OIL-FREE OXYGEN COMPRESSOR BOOSTER
Model: High-Flow Two-Stage Compression System

KEY FEATURES & BENEFITS

1. Absolutely Oil-Free Design, Ultimate Safety

• Technology: Special materials and sealing technology ensure complete isolation between compression chamber and lubrication system

• Benefit: Eliminates risk of oil-oxygen combustion/explosion hazards

• Advantage: Provides highest safety level for oxygen compression processes

2. High-Efficiency Two-Stage Compression

• Technology: Two-stage compression with optimized compression ratio distribution

• Benefit: Reduces exhaust temperature and cylinder load

• Advantage: Lower energy consumption, extended equipment lifespan, stable operation at 8-10 bar

3. Vertical Space-Saving Structure

• Design: Compact vertical layout

• Benefit: Saves valuable floor space

• Advantage: Ideal for confined equipment rooms, simplifies system integration

4. High Flow Rate Capacity

• Capacity: 1100 Nm³/h standard flow rate

• Benefit: Perfectly matches medium-to-large VPSA oxygen generator output

• Advantage: Ensures continuous production gas supply

5. Advanced Intelligent Control System

• Monitoring: Real-time pressure and temperature monitoring at each stage

• Protection: Multi-alarm functions with automatic shutdown capability

• Management: Built-in work timer for maintenance scheduling

• Advantage: Prevents equipment damage, improves operational efficiency

TECHNICAL PARAMETERS

Basic Specifications

• Working Medium: Oxygen

• Compression Stages: 2

• Structural Type: Reciprocating piston vertical skid-mounted

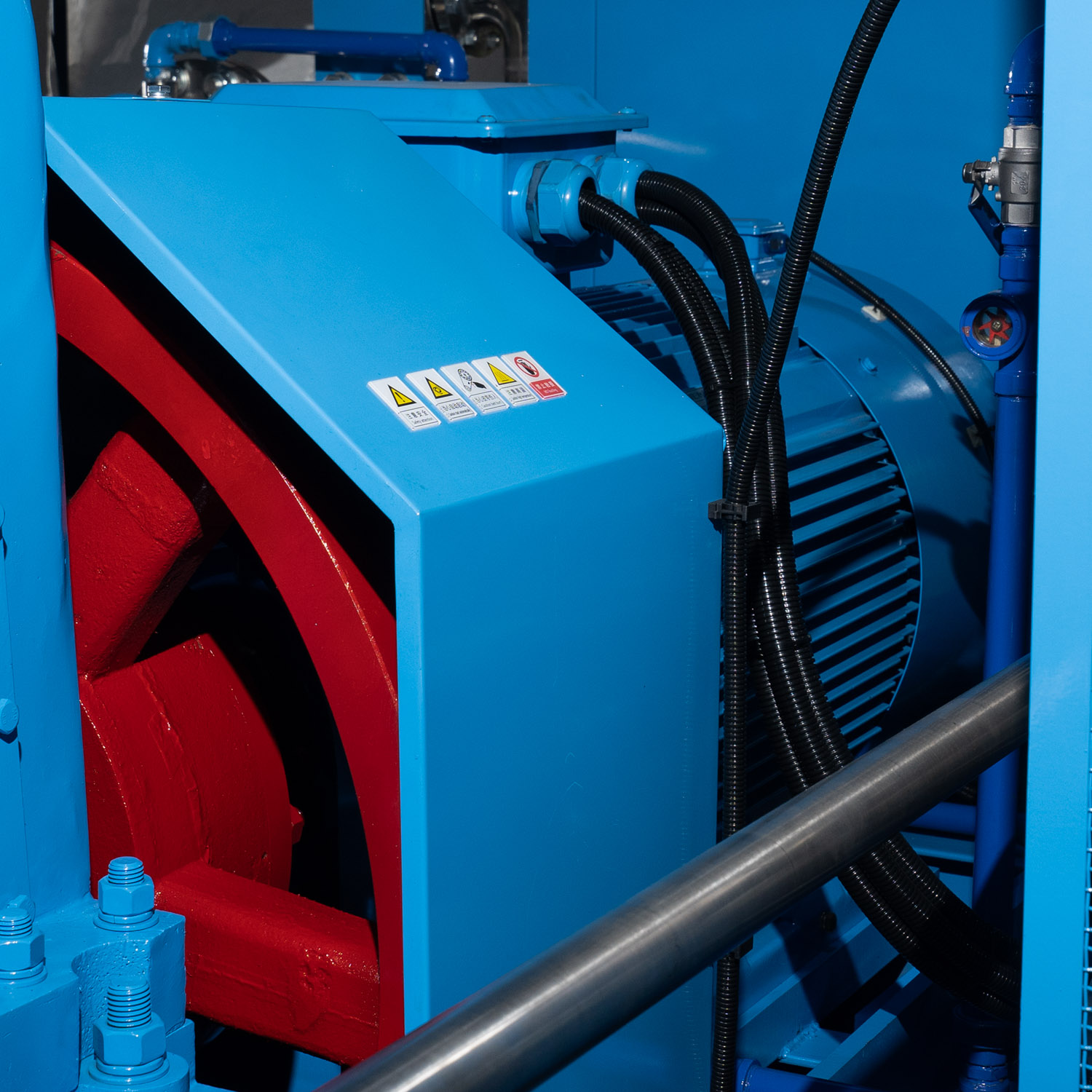

• Drive Mode: Direct drive

Performance Parameters

Mechanical Specifications

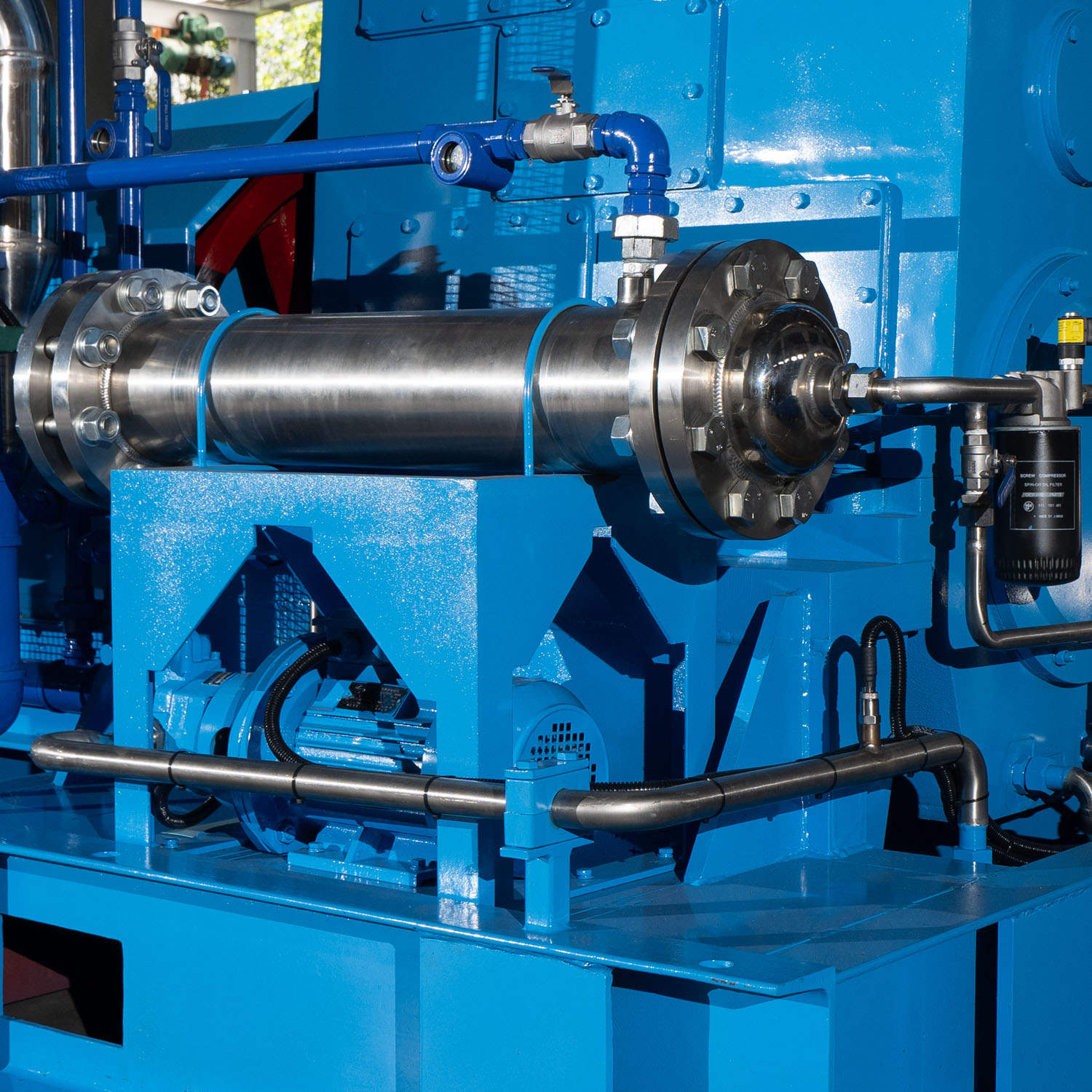

Cooling System

• Cooling Method: Water-cooling

• Cooling Water Flow: 12 t/h

• Connection Size: DN50

Material Specifications

• Body, Slide: Cast iron

• Piston Ring, Filler: Filled polytetrafluoroethylene

• Gas Valve, Cylinder Head: Stainless steel

Physical Dimensions

• Dimensions: 3700 × 2200 × 2400 mm

• Weight: 7000 kg

• Connection Sizes: Inlet DN200 / Exhaust DN100 / Cooling water DN50

Electrical Specifications

• Voltage: 380V 50Hz (Customizable)

• Shaft Power: 100 kW

Scope of Supply

• Engine, motor, cooler, oil pump

• Skid-mounted chassis, start cabinet

• Air intake filter, control components

• Safety valve, special tools

• Import/export matching flanges

• Random documents

MAIN APPLICATIONS

This compressor serves as a critical booster in VPSA oxygen production systems for:

• Metallurgical Industry: Electric furnace steelmaking, oxygen-enriched combustion

• Chemical Industry: Oxidation reactions, raw material gas transportation

• Water Treatment: Ozone generator support, wastewater aeration

• Glass Manufacturing: Oxygen-enriched combustion in melting furnaces

• Paper & Pharmaceutical: Process oxygen boosting

•
