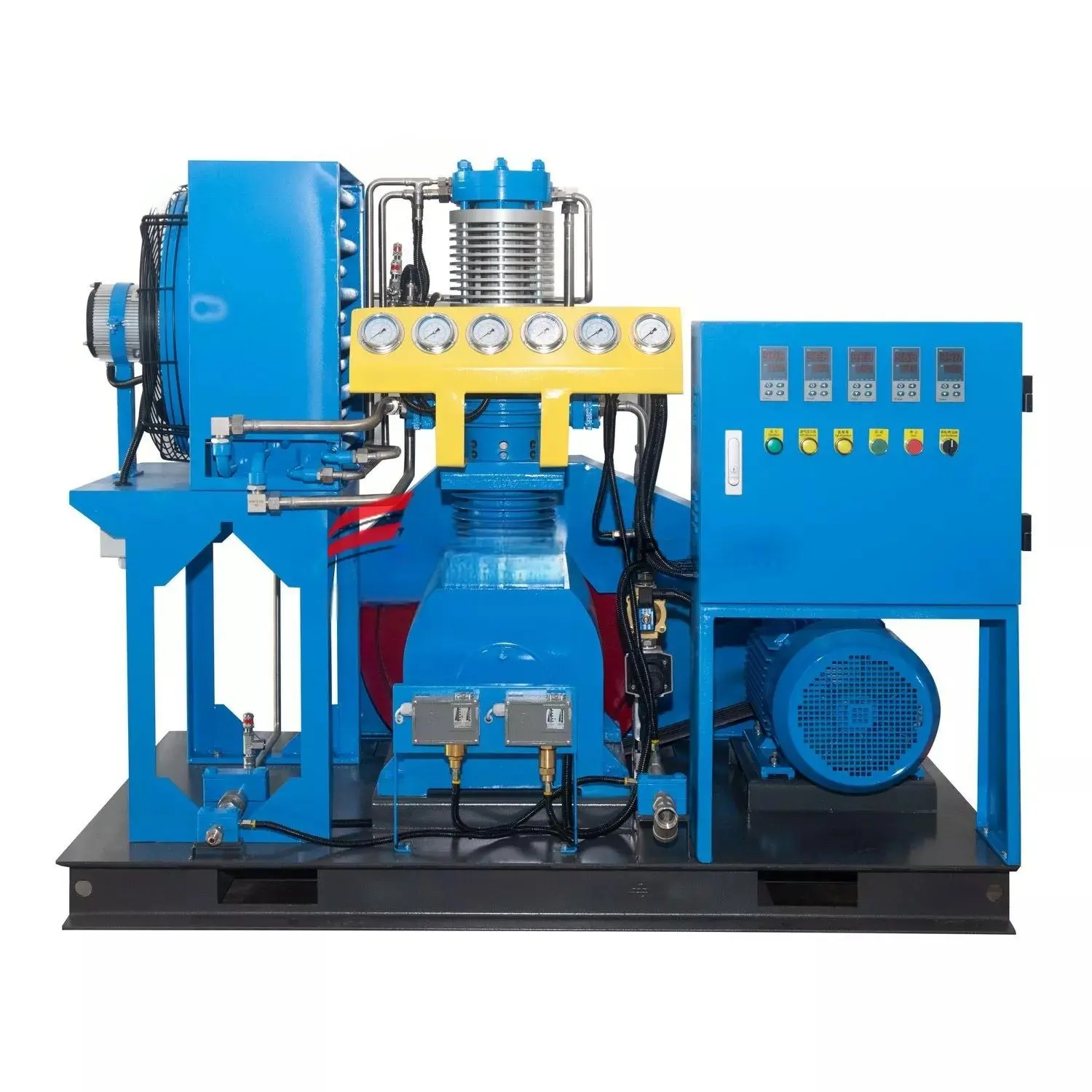

33m³ 4-140bar Oil-free high-pressure oxygen compressor

33m³ 4-140bar Oil-free high-pressure oxygen compressor

33m³ 4-140bar Oil-free high-pressure oxygen compressor
This is a well-designed and high-performance oil-free high-pressure oxygen compressor. Utilizing four-stage compression technology, it can stably and efficiently boost inlet oxygen from 0.2-0.45 MPa(G) to ultra-high pressures up to 14.0 MPa(G). Its 100% oil-free design ensures absolute cleanliness of the oxygen medium and ultimate system safety, making it an ideal solution for high-pressure oxygen applications.

￥ 0.00
0.00
Quantity：
Consultation


33m³ 4-140bar Oil-free high-pressure oxygen compressor
This is a well-designed and high-performance oil-free high-pressure oxygen compressor. Utilizing four-stage compression technology, it can stably and efficiently boost inlet oxygen from 0.2-0.45 MPa(G) to ultra-high pressures up to 14.0 MPa(G). Its 100% oil-free design ensures absolute cleanliness of the oxygen medium and ultimate system safety, making it an ideal solution for high-pressure oxygen applications.

Product Overview: Oil-Free High-Pressure Oxygen Compressor Series

This series of industrial oxygen compressors is engineered to deliver high-purity, high-pressure oxygen safely and efficiently. Utilizing a 100% oil-free design and robust multi-stage compression, they are the ideal solution for cylinder filling and demanding industrial processes.

Key Features & Advantages

FeatureDescription & Benefit
100% Oil-Free DesignA completely oil-free compression chamber eliminates the risk of oil contamination, ensuring the highest oxygen purity and removing safety hazards associated with oil-oxygen reactions.
Four-Stage CompressionA unique four-stage structure progressively increases pressure to 15.2 MPa (150 Psig), controlling the compression ratio at each stage to reduce exhaust temperature and enhance equipment reliability and lifespan.
High-Efficiency CoolingThe air-cooling system eliminates the need for complex external water cooling, simplifying installation and reducing operating costs, making it ideal for areas with limited water resources.
Intelligent Safety ProtectionAn integrated automatic control system shuts down the unit in the event of overpressure, providing critical protection for both the compressor and the downstream system.
Stable Inlet & Powerful OutputDesigned with excellent inlet pressure adaptability (0.3-0.4 MPa), these models deliver stable and reliable flow rates ranging from 15 to 60 Nm³/h.
Customizable Power SupplyStandard and customized voltage options (220V/380V/415V/440V, 50/60Hz) are available to ensure seamless integration with power systems worldwide.

Technical Specifications

ModelInlet PressureOutlet PressureMotor PowerFlow RateVoltageCoolingWeight (kg)Dimensions (mm)
15/4-1500.3-0.4 MPa15.2 MPa11 kW15 Nm³/hCustomizable*Water7801500x950x1500
16/4-1500.3-0.4 MPa15.2 MPa11 kW16 Nm³/hCustomizable*Water7801500x950x1500
20/4-1500.3-0.4 MPa15.2 MPa11 kW20 Nm³/hCustomizable*Water7801500x950x1500
25/4-1500.3-0.4 MPa15.2 MPa11 kW25 Nm³/hCustomizable*Water9601500x950x1500
30/4-1500.3-0.4 MPa15.2 MPa11 kW30 Nm³/hCustomizable*Water9601500x950x1500
35/4-1500.3-0.4 MPa15.2 MPa11 kW35 Nm³/hCustomizable*Water9601500x950x1500
40/4-1500.3-0.4 MPa15.2 MPa15 kW40 Nm³/hCustomizable*Water10001500x950x1500
42/3-1500.3-0.4 MPa15.2 MPa15 kW42 Nm³/hCustomizable*Water10001500x950x1500
50/4-1500.3-0.4 MPa15.2 MPa15 kW50 Nm³/hCustomizable*Water10001500x950x1500
50/2-1500.3-0.4 MPa15.2 MPa18.5 kW50 Nm³/hCustomizable*Water10501500x950x1500
56/3-1500.3-0.4 MPa15.2 MPa18.5 kW56 Nm³/hCustomizable*Water10501500x950x1500
60/4-1500.3-0.4 MPa15.2 MPa18.5 kW60 Nm³/hCustomizable*Water10501500x950x1500

**Customizable Voltage: 220V / 380V / 415V / 440V, 50/60Hz.*

Applications

This compressor series is specifically designed for industrial applications requiring high-pressure, high-purity oxygen, and is widely used in:

  • High-Pressure Oxygen Cylinder Filling: For industrial, medical, or diving applications.

  • Chemical & Petrochemical Processes: As a gas source for high-pressure oxidation reactions and process transportation.

  • Metal Cutting & Welding: Providing a continuous, stable oxygen supply for high-pressure cutting equipment.

  • Laboratories & Research Institutions: Supplying high-pressure pure oxygen for various experimental setups.

  • Other Industrial Applications: Any process requiring reliable high-pressure oxygen boosting.
