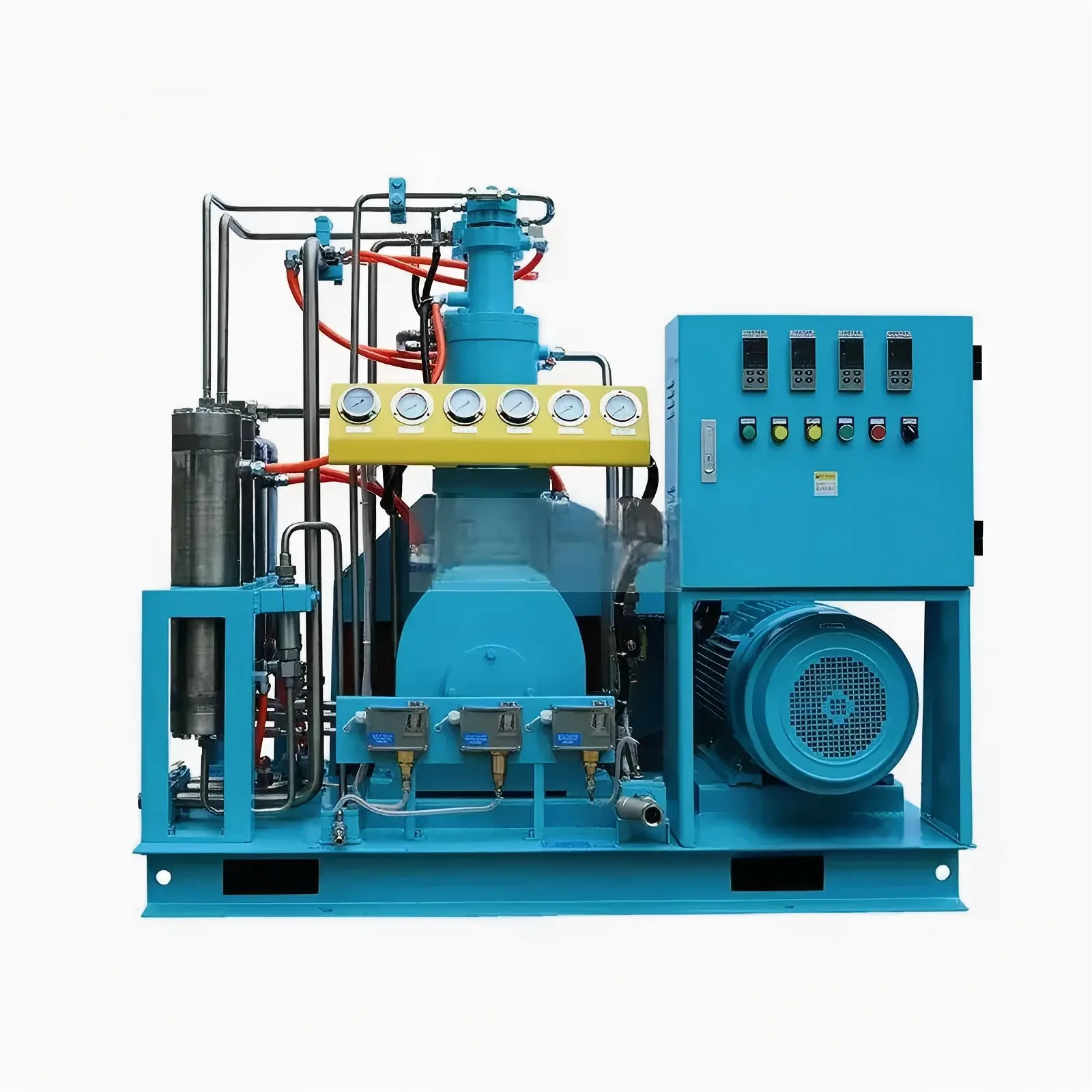

20m³ Oil-Free Oxygen Compressor

20m³ Oil-Free Oxygen Compressor

20m³ Oil-Free Oxygen Compressor
Product Overview
Fully Oil-Free Oxygen Compressor is a high-pressure gas compression unit specifically designed for dry oxygen. It features a four-stage compression process and a 100% oil-free lubrication structure, ensuring the gas remains pure and uncontaminated during compression. This makes it ideal for industrial applications with stringent gas purity requirements. The machine is compact, easy to install, and operates stably, making it suitable for various fields such as medical, chemical, metal processing, and scientific research.

￥ 0.00
0.00
Quantity：
Consultation


20m³ Oil-Free Oxygen Compressor
Product Overview
Fully Oil-Free Oxygen Compressor is a high-pressure gas compression unit specifically designed for dry oxygen. It features a four-stage compression process and a 100% oil-free lubrication structure, ensuring the gas remains pure and uncontaminated during compression. This makes it ideal for industrial applications with stringent gas purity requirements. The machine is compact, easy to install, and operates stably, making it suitable for various fields such as medical, chemical, metal processing, and scientific research.

Key Features

  • 100% Oil-Free Structure: Employs sealed grease lubrication and oil-free technology, eliminating the risk of oil contamination and ensuring the output of pure, safe oxygen.

  • Four-Stage Compression Technology: Efficiently boosts pressure from atmospheric levels to 15.0 MPa, delivering stable and reliable discharge pressure.

  • Air Cooling System: Requires no external cooling water, making it energy-efficient, environmentally friendly, and adaptable to various installation sites.

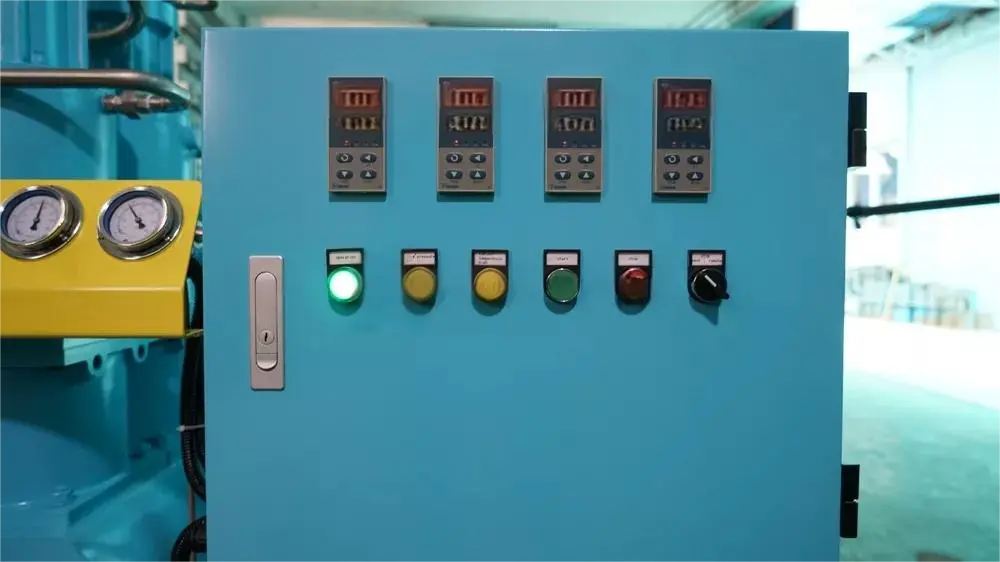

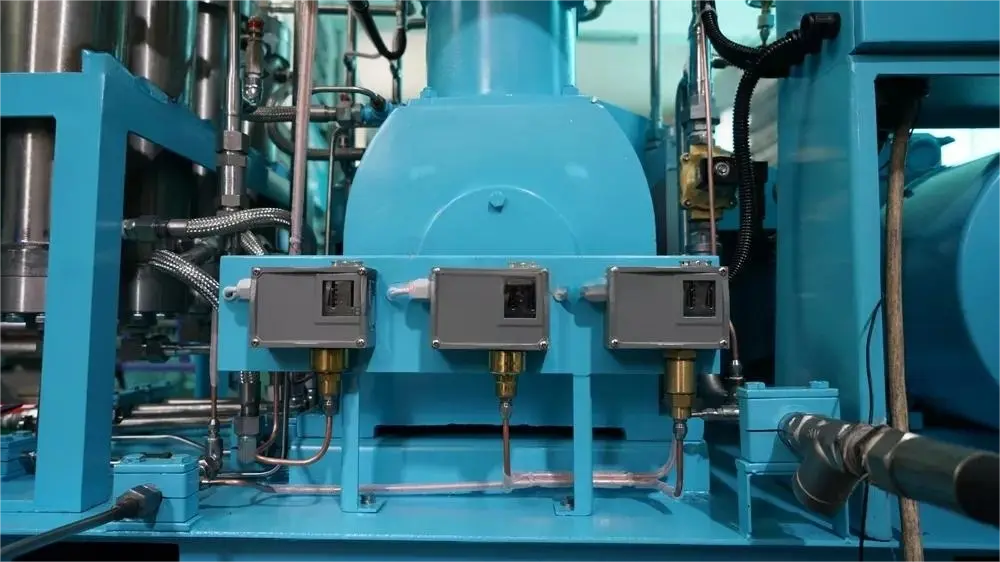

  • Automatic Protection Function: Features an automatic shutdown with overpressure discharge to ensure the safety of both the equipment and the system.

  • Belt Drive Design: Ensures smooth operation, simplifies maintenance, and provides adaptability to different operating conditions.

Technical Parameters

ModelWorking MediumInlet PressureOutlet PressureMotor Power (kW)Flow Rate (Nm³/hr)VoltageCooling MethodWeight (kg)Dimensions (mm)
15/4-150Oxygen0.3-0.4 MPa15.2 MPa1115220V/380V/415V/440V 50/60Hz/CustomizedWater Cooling7801500x950x1500
16/4-150Oxygen0.3-0.4 MPa15.2 MPa1116220V/380V/415V/440V 50/60Hz/CustomizedWater Cooling7801500x950x1500
20/4-150Oxygen0.3-0.4 MPa15.2 MPa1120220V/380V/415V/440V 50/60Hz/CustomizedWater Cooling7801500x950x1500
25/4-150Oxygen0.3-0.4 MPa15.2 MPa1125220V/380V/415V/440V 50/60Hz/CustomizedWater Cooling9601500x950x1500
30/4-150Oxygen0.3-0.4 MPa15.2 MPa1130220V/380V/415V/440V 50/60Hz/CustomizedWater Cooling9601500x950x1500
35/4-150Oxygen0.3-0.4 MPa15.2 MPa1135220V/380V/415V/440V 50/60Hz/CustomizedWater Cooling9601500x950x1500
40/4-150Oxygen0.3-0.4 MPa15.2 MPa1540220V/380V/415V/440V 50/60Hz/CustomizedWater Cooling10001500x950x1500
42/3-150Oxygen0.3-0.4 MPa15.2 MPa1542220V/380V/415V/440V 50/60Hz/CustomizedWater Cooling10001500x950x1500
50/4-150Oxygen0.3-0.4 MPa15.2 MPa1550220V/380V/415V/440V 50/60Hz/CustomizedWater Cooling10001500x950x1500
50/2-150Oxygen0.3-0.4 MPa15.2 MPa18.550220V/380V/415V/440V 50/60Hz/CustomizedWater Cooling10501500x950x1500
56/3-150Oxygen0.3-0.4 MPa15.2 MPa18.556220V/380V/415V/440V 50/60Hz/CustomizedWater Cooling10501500x950x1500
60/4-150Oxygen0.3-0.4 MPa15.2 MPa18.560220V/380V/415V/440V 50/60Hz/CustomizedWater Cooling10501500x950x1500

Note: Inlet and outlet pressure are also listed in Psig (40-60 Psig Inlet, 150 Psig Outlet).

Applications

  • Oxygen Boosting and Transfer

  • High-Purity Gas Supply Systems

  • Laboratory Gas Equipment

  • Industrial Gas Filling Systems

  • Medical Oxygen Supply Equipment
