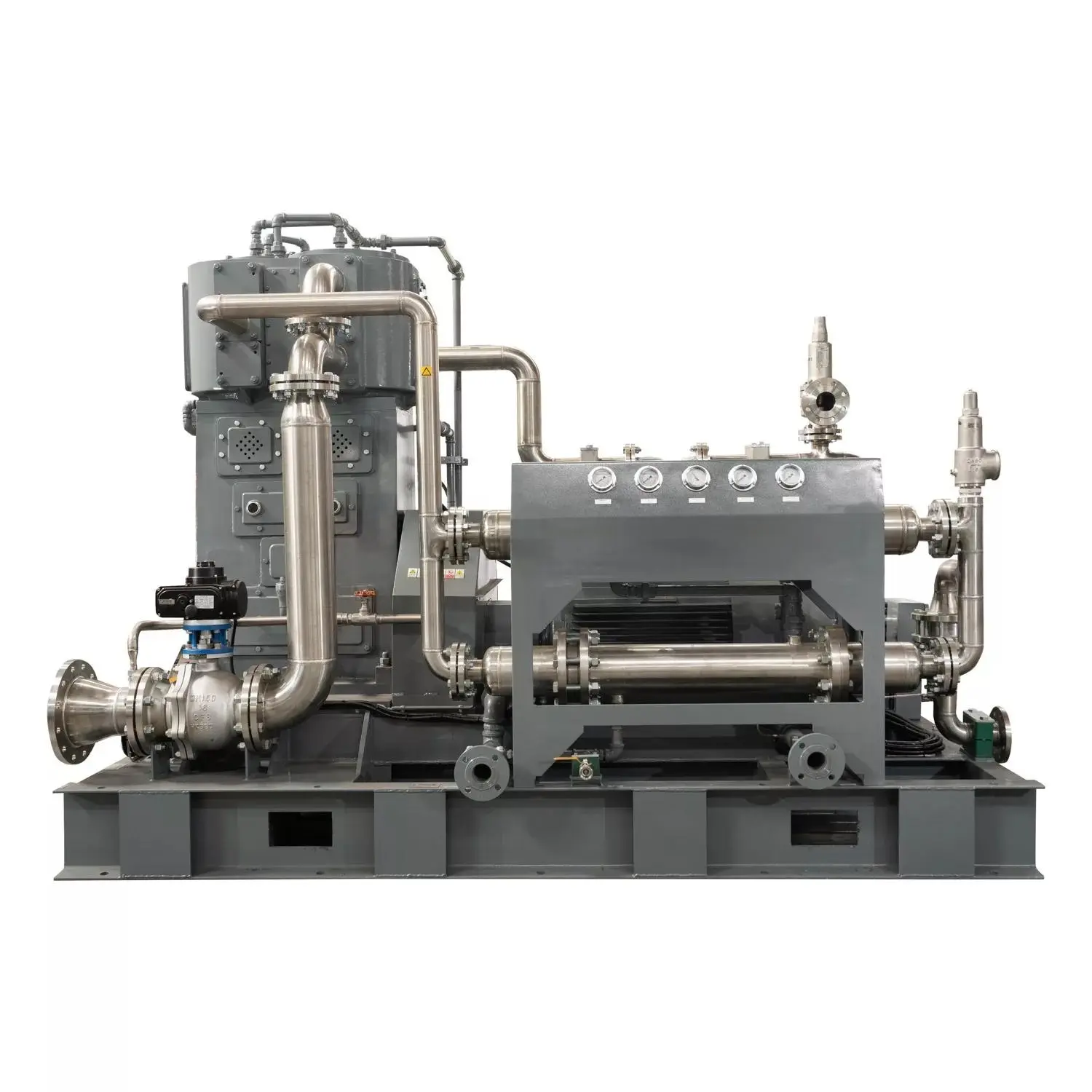

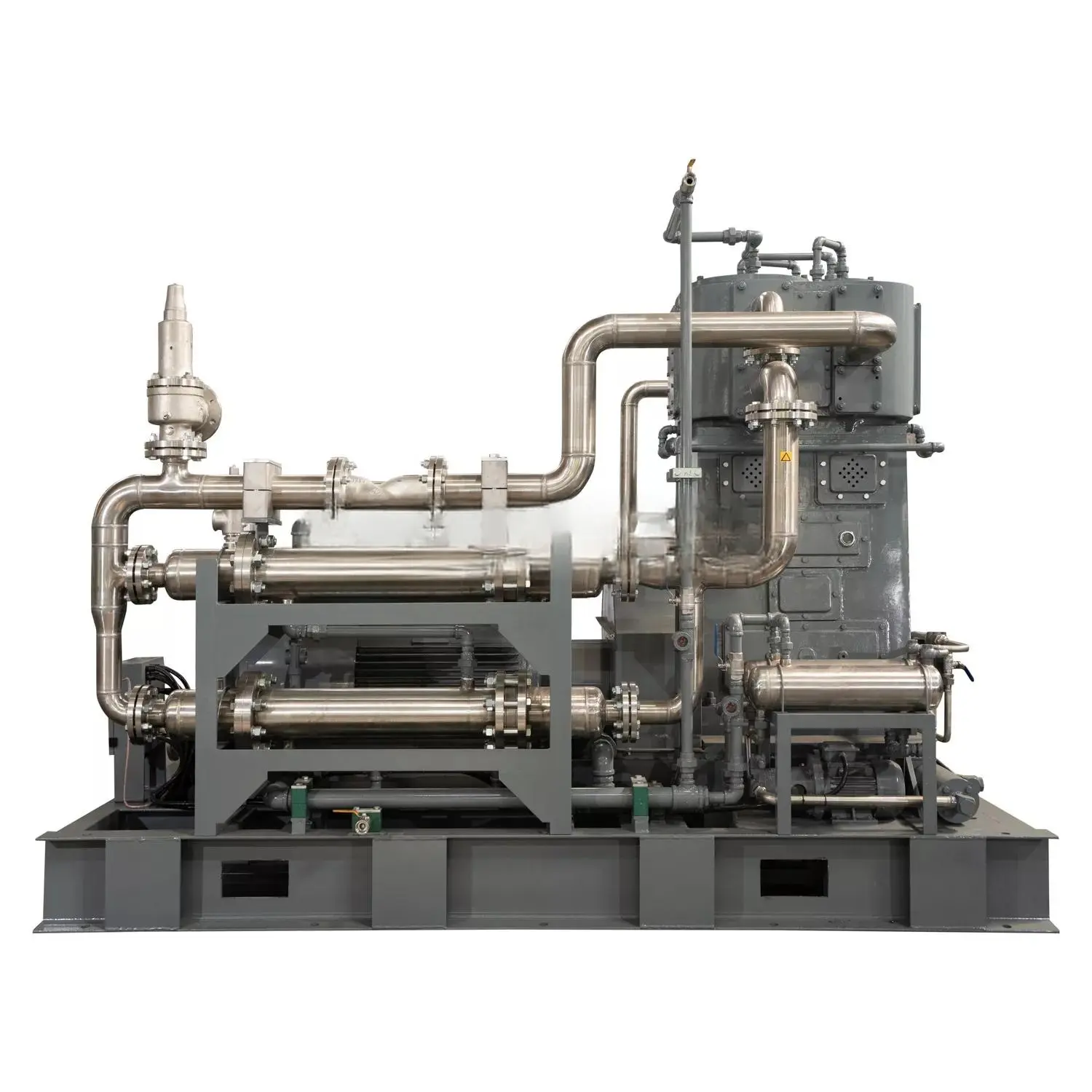

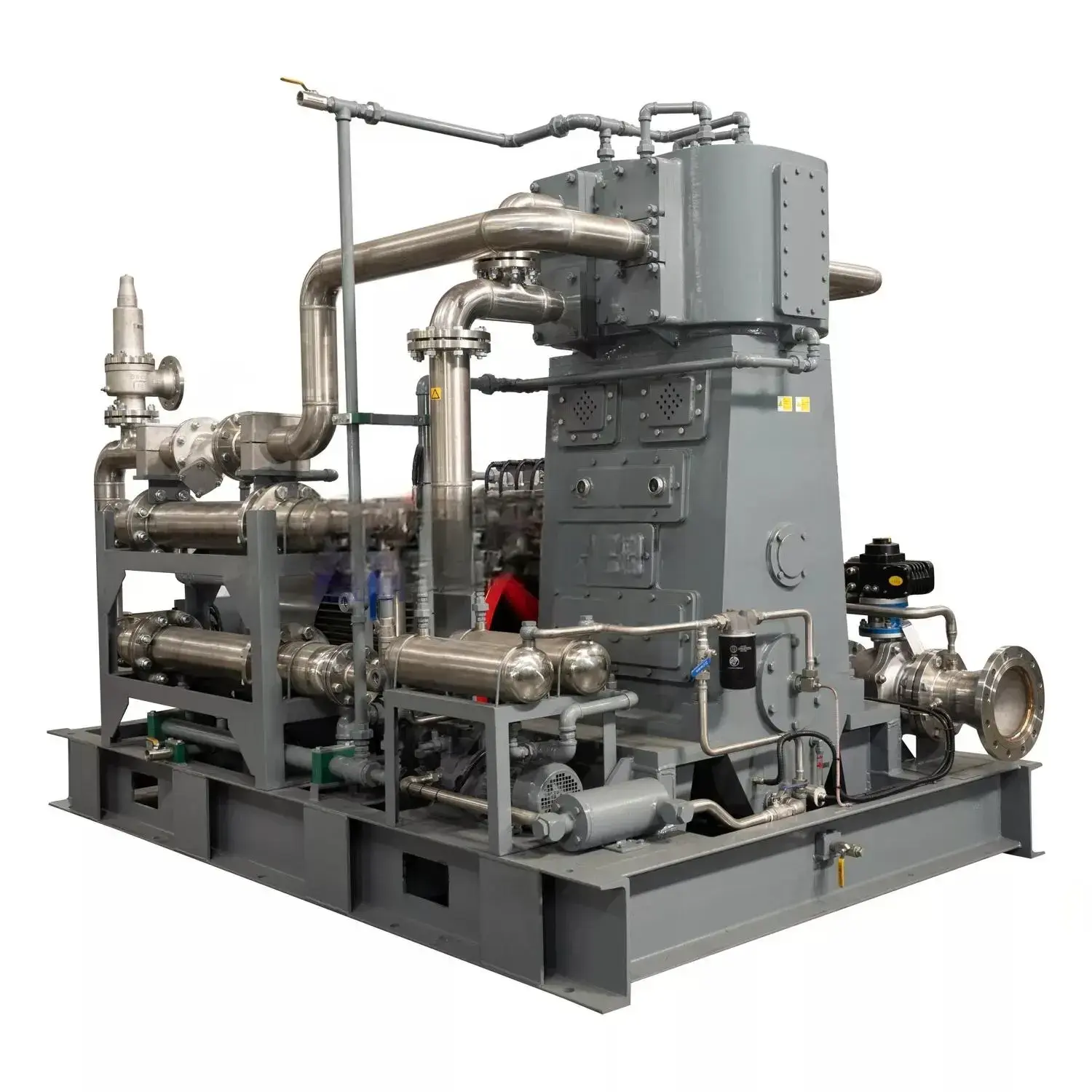

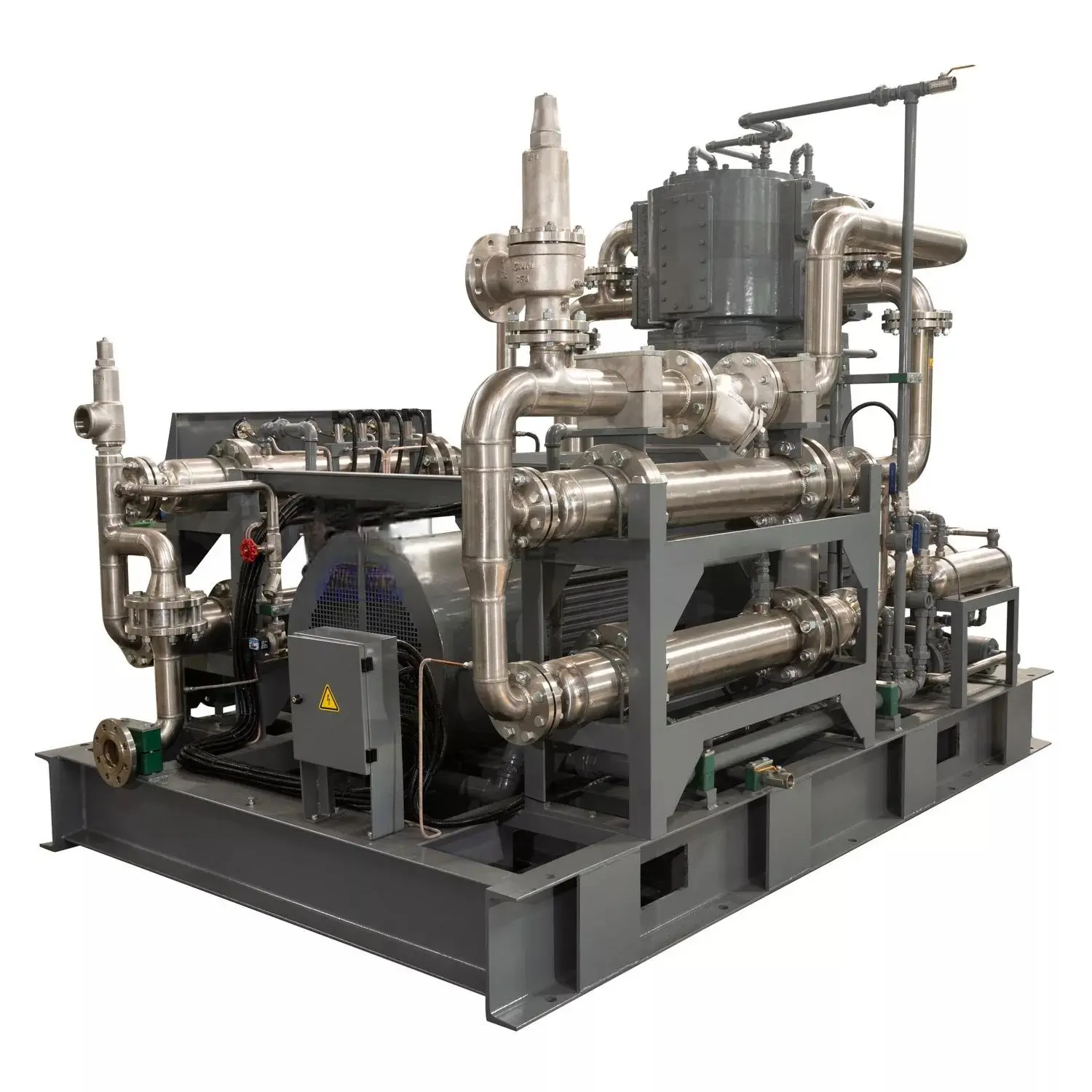

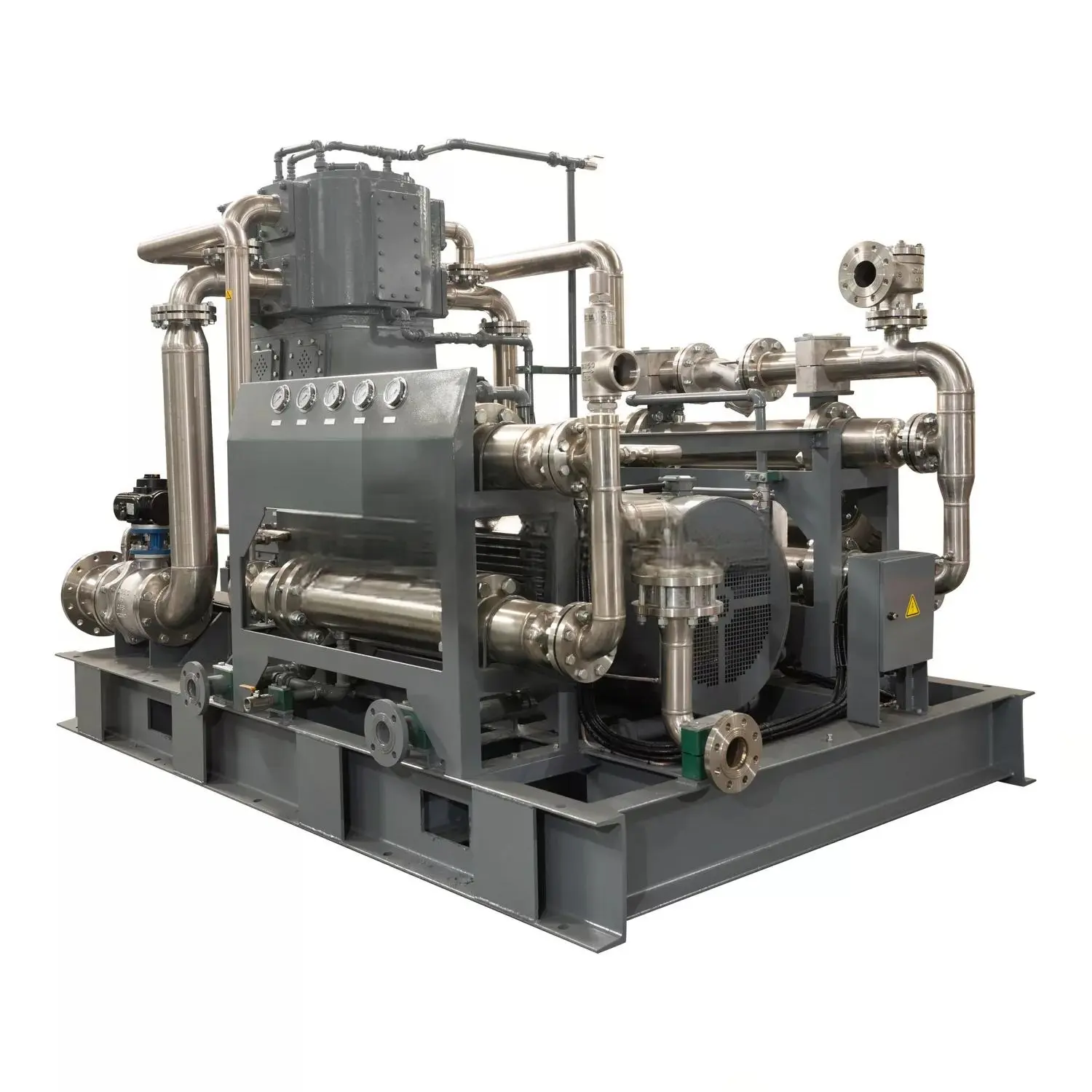

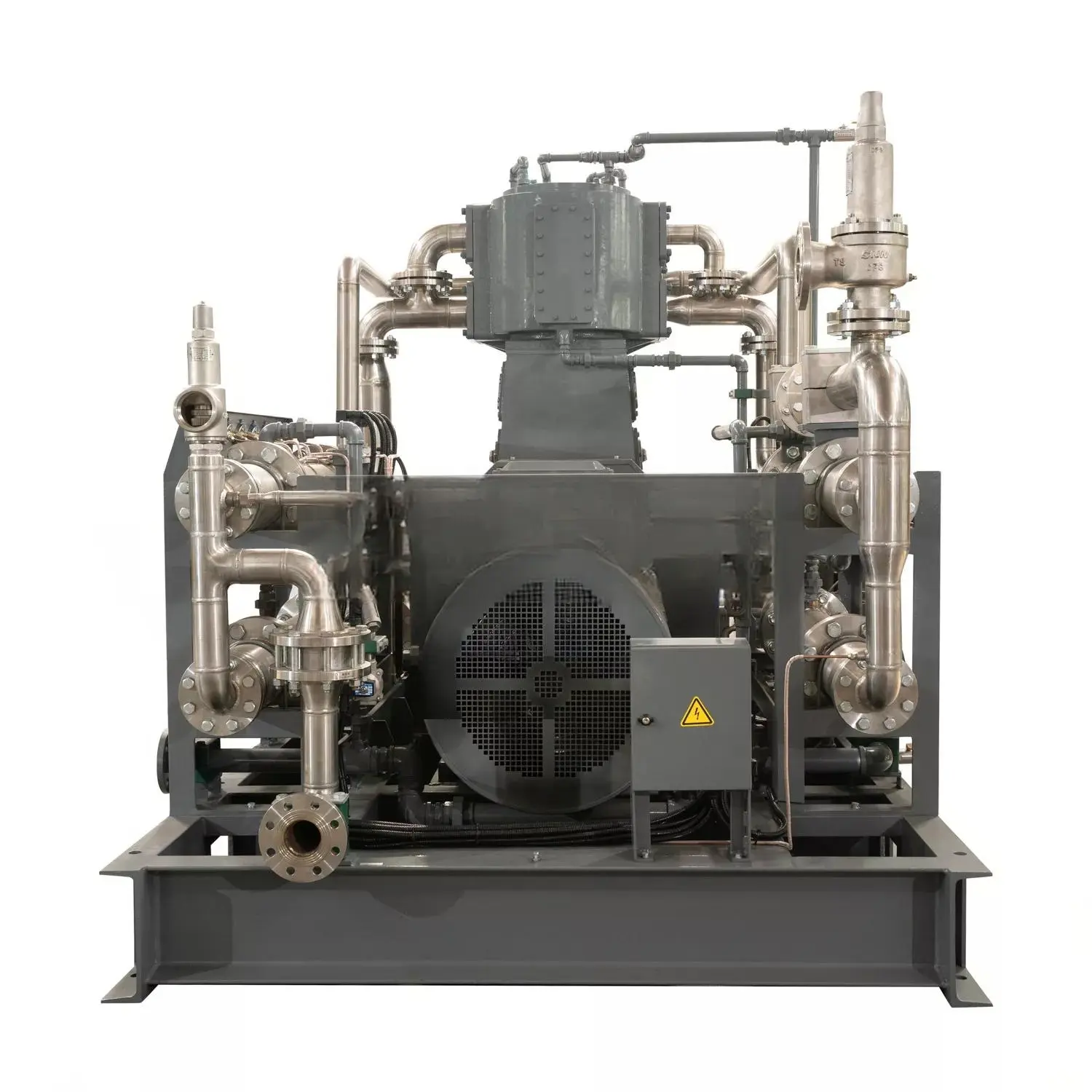

750nm3 Oxygen Compressor

750nm3 Oxygen Compressor

750m³ vertical oil-free oxygen compressorfor large-scale VPSA oxygen generation systems

This compressor is very popular in big VPSA oxygen generator supply system

Main function is to increase very small pressure oxygen gas to 8-10bar pipe line


￥ 0.00
0.00
Quantity：
Consultation


750m³ vertical oil-free oxygen compressorfor large-scale VPSA oxygen generation systems

This compressor is very popular in big VPSA oxygen generator supply system

Main function is to increase very small pressure oxygen gas to 8-10bar pipe line


Product Overview: Oil-Free High-Flow Oxygen Booster Compressor

This is a high-capacity, oil-free oxygen compressor designed as the primary booster for medium-to-large VPSA oxygen generation systems. It safely and efficiently compresses oxygen from 0.2-0.45 MPa to 14.0 MPa, featuring an intelligent control system for reliable, continuous operation in demanding industrial applications.

Key Features & Benefits

FeatureBenefit
1. 100% Oil-Free DesignUtilizes special materials and sealing technology to completely isolate the compression chamber from lubrication systems. Eliminates the risk of oil contamination, preventing combustion and explosion hazards for ultimate safety.
2. Efficient Multi-Stage CompressionEmploys a multi-stage compression cycle to manage the compression ratio effectively. This reduces exhaust temperature and cylinder load, ensuring stable, long-term operation between 2-80 bar with lower energy consumption.
3. Vertical, Space-Saving StructureThe compact vertical footprint minimizes floor space requirements, making it ideal for installation in confined equipment rooms and simplifying system integration.
4. High Flow Rate CapacityWith a standard flow rate, it is perfectly matched to the output of medium and large VPSA oxygen generators, providing ample pressurized gas for continuous production processes.
5. Advanced Intelligent Control SystemComprehensive Monitoring: Real-time tracking of outlet pressure and temperature at each stage.
Intelligent Protection: Multi-alarm functions with automatic shutdown for over-temperature or over-pressure events.
Operation Management: Built-in work timer for streamlined maintenance scheduling and operational efficiency.

Technical Parameters

No.ParameterSpecification
1Working MediumOxygen
2Equipment Model750/0.2-8
3Structural Style100% Totally Oil-Free
4Compression Stages4
5Rated Flow (Nm³/h)30 (at 4 Barg Inlet)
6Rated Inlet Pressure0.2 - 0.45 MPa(G)
7Rated Outlet Pressure14.0 MPa(G)
8Gas Inlet Temperature≤ 40 °C
9Discharge Temperature≤ 130 °C
10Gas Supply Temperature≤ 55 °C
11Rotational Speed190 rpm
12Cooling MethodAir-Cooling
13Lubrication MethodCrankshaft, Connecting Rod: Sealed Grease
Air Cylinder: Oil-Free
14Motor Power11 kW
15Drive MethodBelt Driven
16Installation TypeWith Simple Base
17Automatic ControlAuto-shutdown on overpressure
18Dimensions (LxWxH)1600 x 950 x 1500 mm
19Gas Inlet Size25 mm
20Gas Outlet SizeM16 x 1.5
21Weight960 kg
22Delivery Time15 days after advance payment
23Power Supply380V / 50Hz / 3-Phase

Main Applications

This compressor is an indispensable key back-end booster device in VPSA oxygen production systems, widely used in:

  • Metallurgical Industry: Electric furnace steelmaking, oxygen-enriched combustion

  • Chemical Industry: Oxidation reactions, raw material gas transportation

  • Water Treatment: Ozone generator support, wastewater aeration

  • Glass Manufacturing: Oxygen-enriched combustion in glass melting furnaces

  • Paper & Pharmaceutical Industries: Process oxygen boosting
