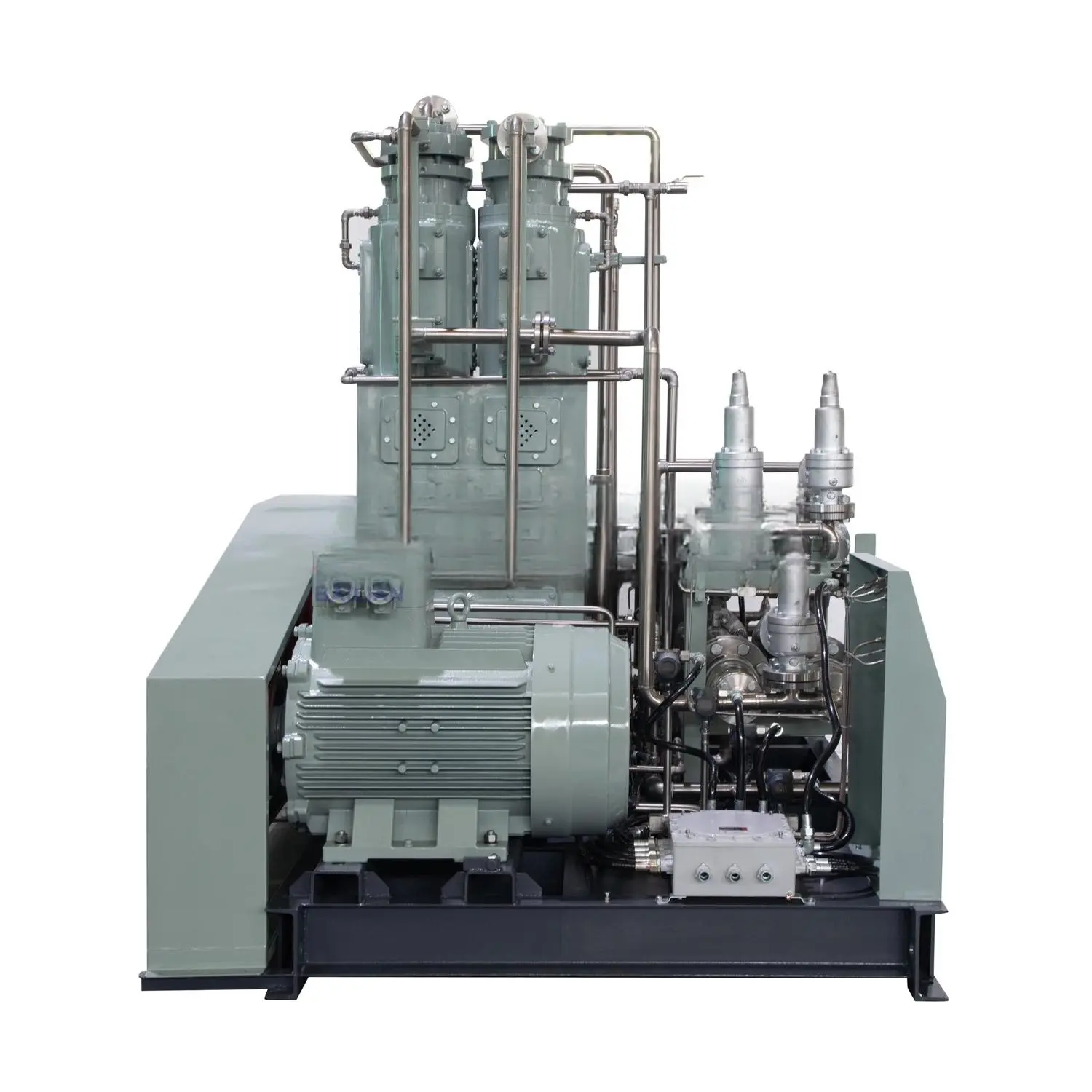

Key Features

• 100% Oil-Free Operation: PTFE-filled components eliminate gas contamination

• High-Efficiency Performance: 500 Nm³/h flow capacity with 7.5 MPa discharge pressure

• Four-Stage Compression: Optimal for high-pressure CO₂ applications

• Permanent Magnet Motor: Energy-efficient 132kW motor reduces operating costs

• Air-Cooled Design: No cooling water required, simplifying installation

• Corrosion-Resistant Materials: Stainless steel gas path components

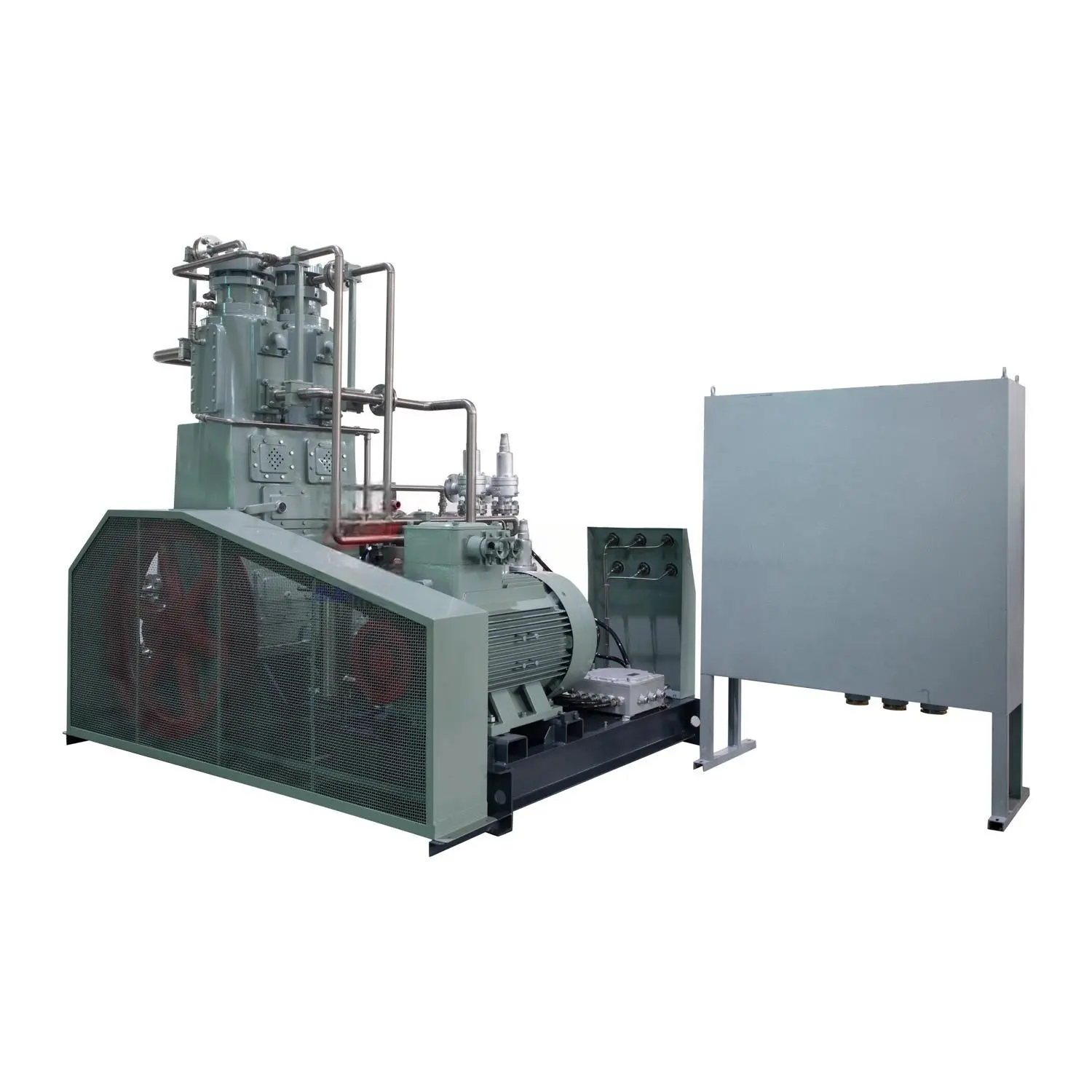

• Skid-Mounted Configuration: Pre-assembled for easy installation

• Customizable Voltage: Available in 380V/50Hz or custom specifications




• TECHNICAL DATA

• Parameter	Specification	Parameter	Specification
  Medium	Dry CO₂	Quantity	1
  Inlet Pressure	Micro Positive Pressure	Inlet Temperature	0 ~ 40 °C
  Discharge Pressure	7.5 MPa(G)	Discharge Temperature	≤55 °C
  Flow Rate	500 Nm³/h	Piston Stroke	180 mm
  Model	500/0.01-75	Compression Stages	4
  Structural Style	Vertical Skid Mounted	Cylinder Quantity	4
  Shaft Speed	425 rpm ″	Voltage	380V/50Hz (Customizable)
  Cooling Mode	Air Cooling	Cooling Water Flow	—
  Shaft Power	121 kW	Main Motor Speed	425 rpm ″
  Motor	132kW 380V 50Hz Efficient Permanent Magnet Motor ″
  Dimensions	3800×2200×2550 mm ″	Weight	7.8 t ″
  Interface Size	Inlet DN150 / Discharge DN25
  Drive Mode	Coupling
  Main Materials
  – Frame & Slide	Cast Iron
  – Piston Rings, Packing	Filled PTFE
  – Air Valve & Cylinder Liner	Stainless Steel

Applications

• Carbon capture and storage (CCS)

• Supercritical fluid extraction

• Enhanced oil recovery

• Food and beverage processing

• Industrial gas processing

Delivery Time: 100 days after order confirmation
