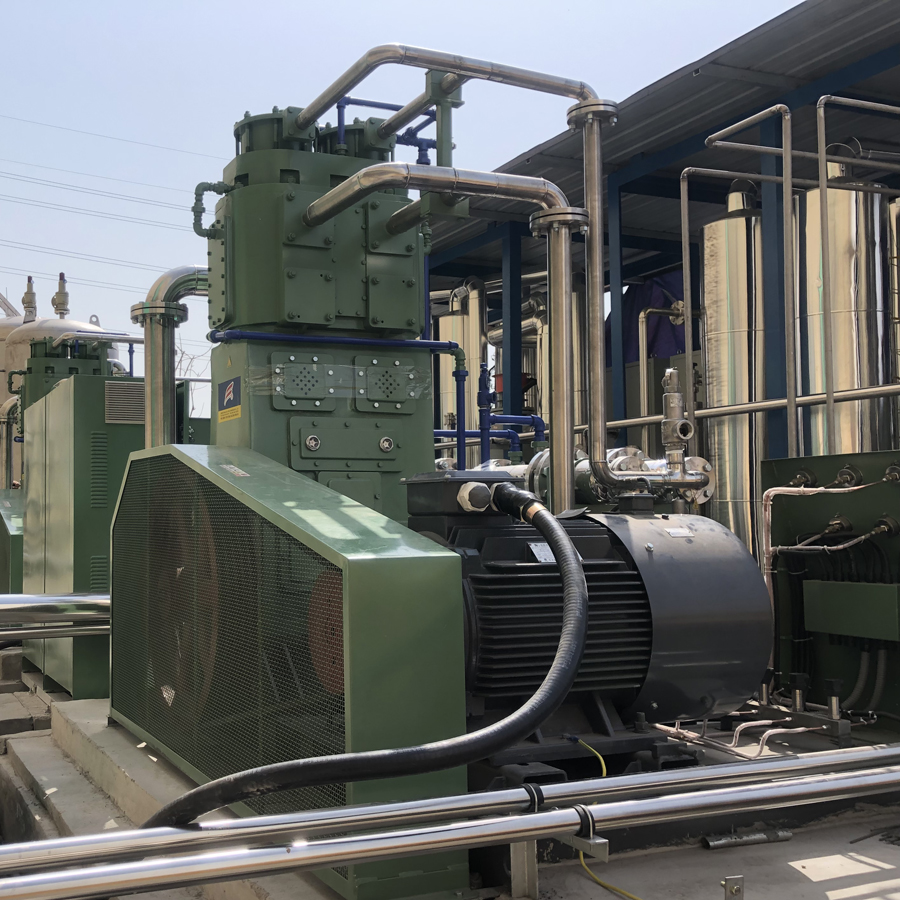

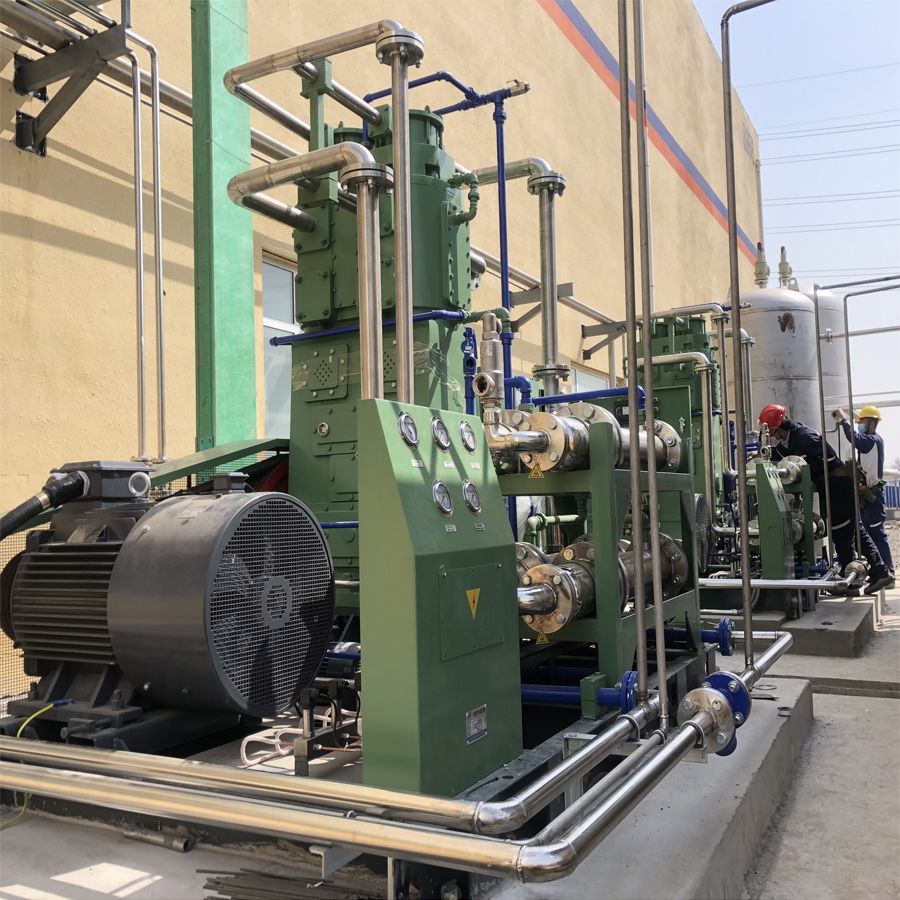

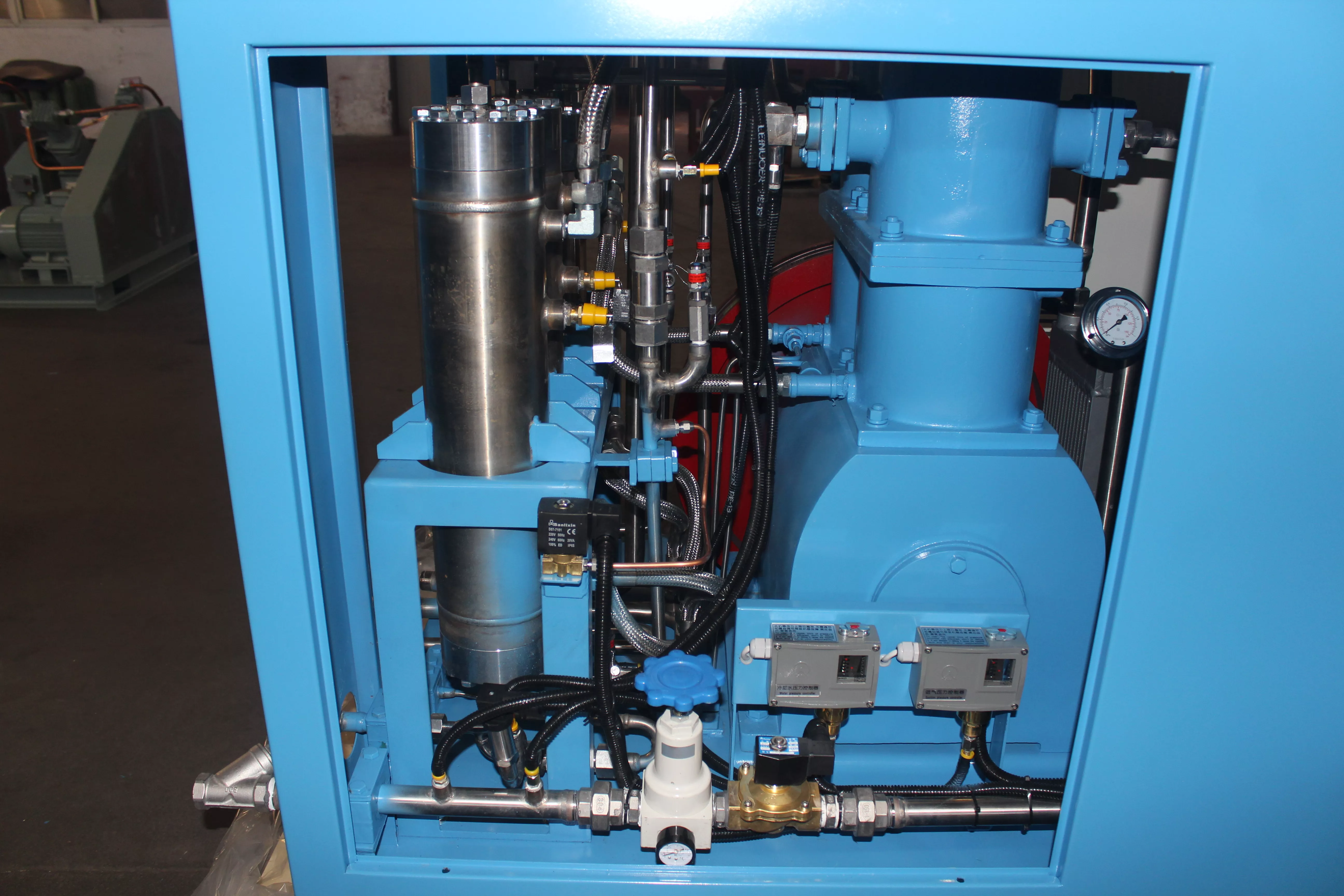

4-300 bar Oil-Free High-Pressure Argon Compressor

4-300 bar Oil-Free High-Pressure Argon Compressor

high-performance, four-stage oil-free compressor specifically engineered for argon gas compression up to 30 MPa. Designed with a vertical skid-mounted structure and water-cooling system, it delivers pure, contamination-free argon for critical industrial applications including metal welding, heat treatment, and manufacturing processes. The compressor ensures reliable 24/7 operation with minimal maintenance requirements.

￥ 0.00
0.00
Quantity：
Consultation


high-performance, four-stage oil-free compressor specifically engineered for argon gas compression up to 30 MPa. Designed with a vertical skid-mounted structure and water-cooling system, it delivers pure, contamination-free argon for critical industrial applications including metal welding, heat treatment, and manufacturing processes. The compressor ensures reliable 24/7 operation with minimal maintenance requirements.

Key Features

  • Ultra-High Pressure Output: Four-stage compression delivers 30.0 MPa

  • 100% Oil-Free Operation: PTFE components ensure contaminant-free argon

  • Water-Cooled Efficiency: Maintains optimal operating temperatures

  • Robust Construction: Stainless steel gas path with iron steel frame

  • Customizable Voltage: Multiple voltage options available

  • Low Maintenance: Oil-free design reduces servicing requirements

  • Compact Skid Design: Easy installation and space-saving footprint


TECHNICAL DATA

No.ParameterSpecification
1Working MediumDry Argon Gas
2Model50/4-300
3StructureOil-Free Reciprocating, Vertical Skid Mount
4Pressure Stage4 Stage, 4 Cylinder
5Rated Capacity50 Nm³/h
6Rated Inlet Pressure0.4 MPa(G)
7Rated Outlet Pressure30.0 MPa(G)
8Inlet Temperature≤40°C
9Outlet Temperature≤130°C
10Gas Delivery Temperature≤50°C (after cooling)
11Shaft Speed240 rpm ※
12Cooling MethodWater Cooling
13Lubrication MethodGrease (Shaft) / Oil-Free (Cylinder)
14Motor Power18.5 kW, 400V/50Hz/3-Phase ※

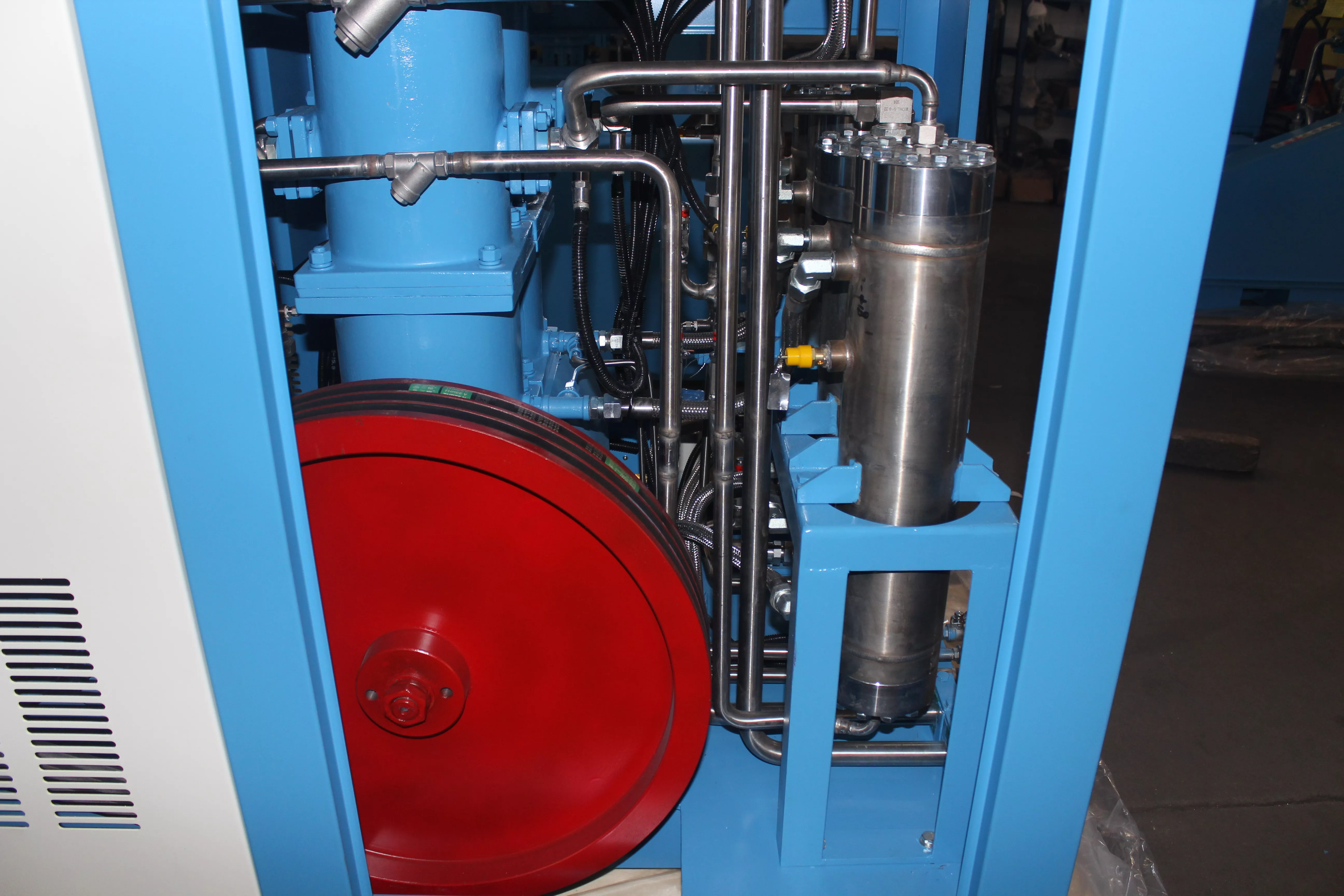

15TransmissionBelt Driven
16InstallationSimple Basement

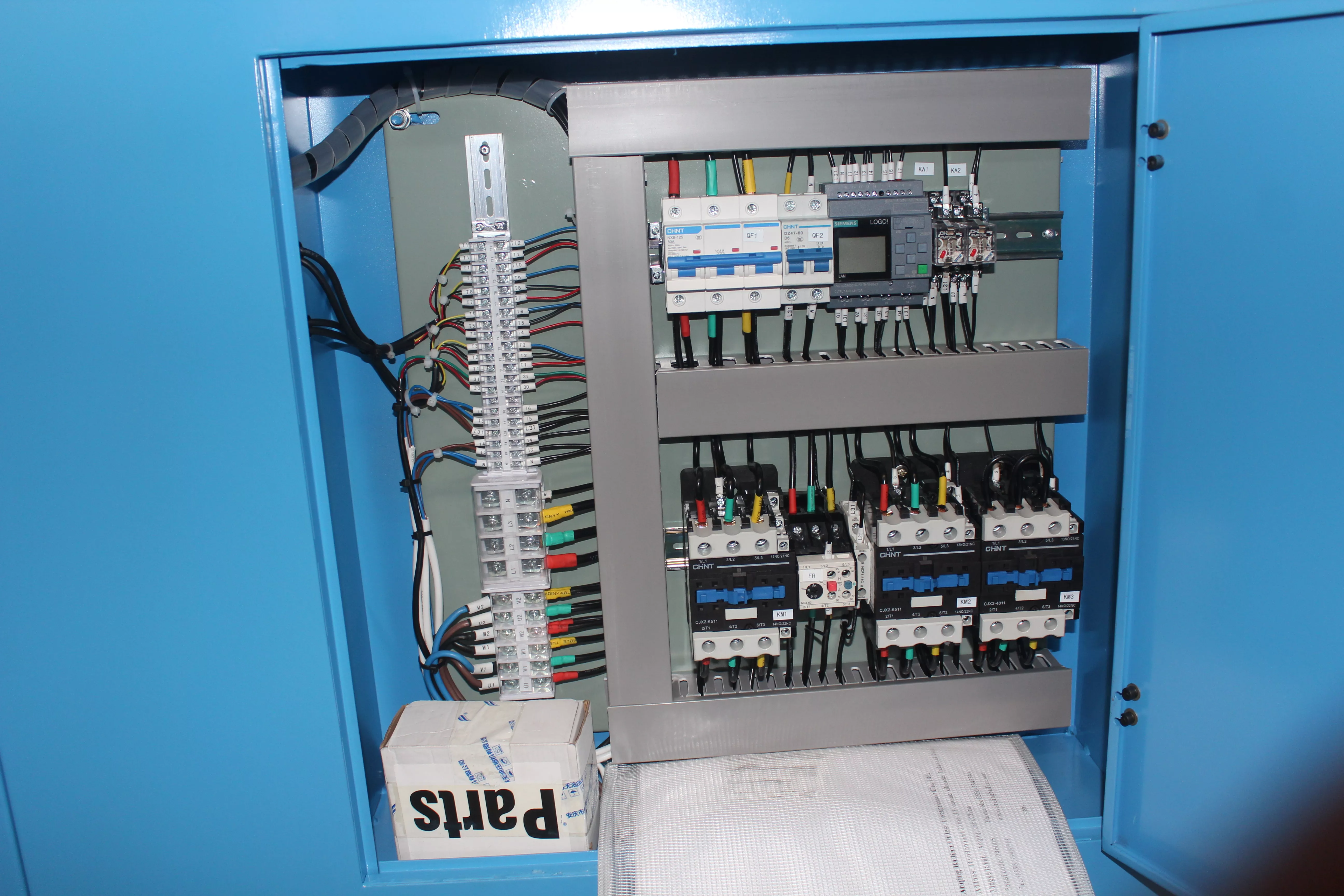

17Control SystemOverload Protection, Auto Stop
18Dimensions1600×1100×1400 mm ※
19Inlet/Outlet25 mm / M16×1.5
20Weight1200 kg ※
21Voltage400V/50Hz/3-Phase (Customizable)
22Water Consumption2000 kg/hr
23Water ConnectionDN25
24MaterialsCrank Body: Iron Steel
Piston Ring & Packing: PTFE

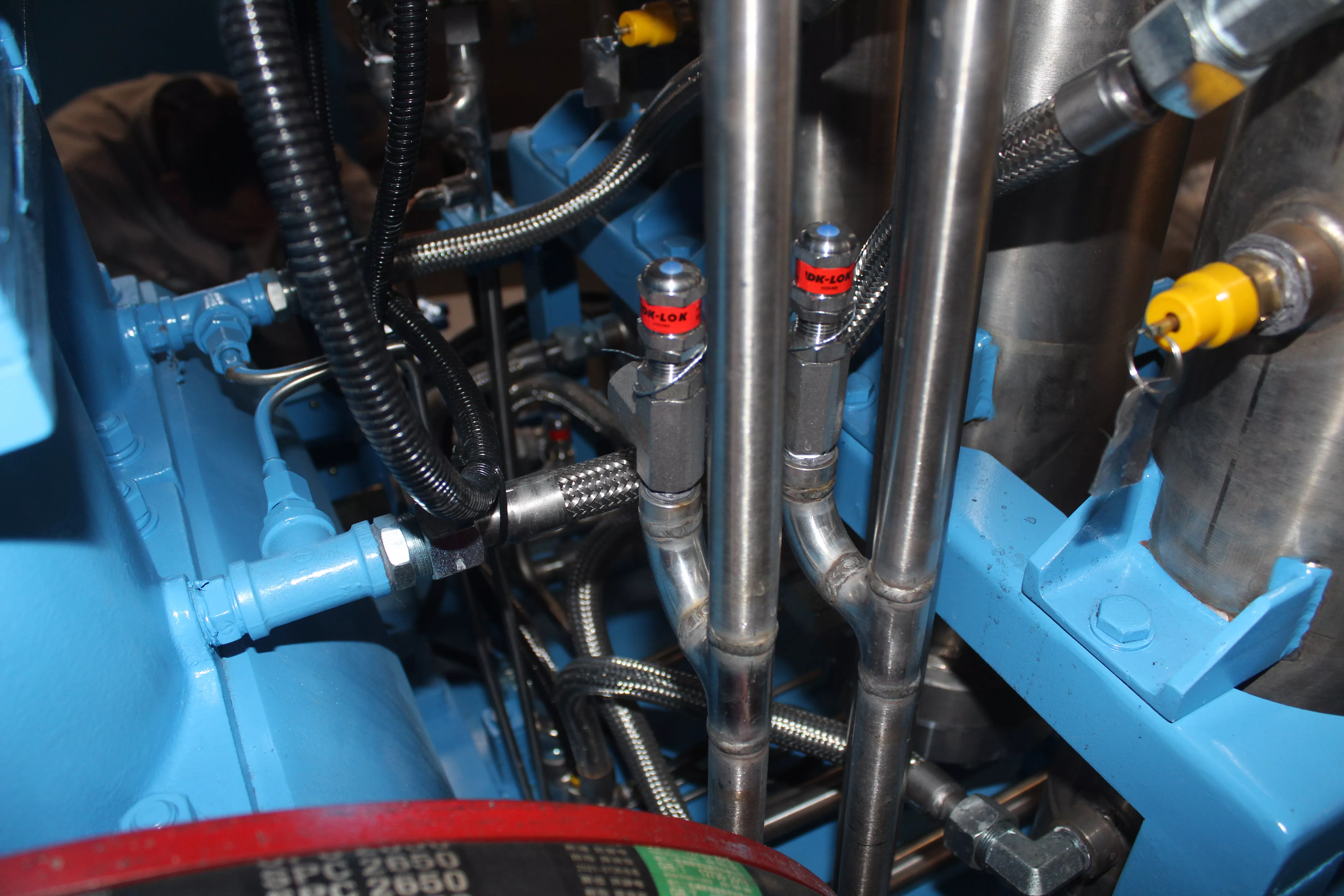

Gas Valve, Pipe & Cylinder: Stainless Steel
25Seal TypePacking Seal
26EnclosureIncluded



Important Note

The gas compressed by the compressor must be dry and free of particles!


Argon Compressor Applications

  • Welding shielding gas for stainless steel, aluminum, magnesium alloys

  • Heat treatment and metal annealing processes

  • Steel manufacturing and argon-oxygen decarburization

  • Electronics manufacturing and lighting industry

  • Aerospace and automotive manufacturing

  • Brewing industry oxygen replacement

Delivery Time: 50-60 days
