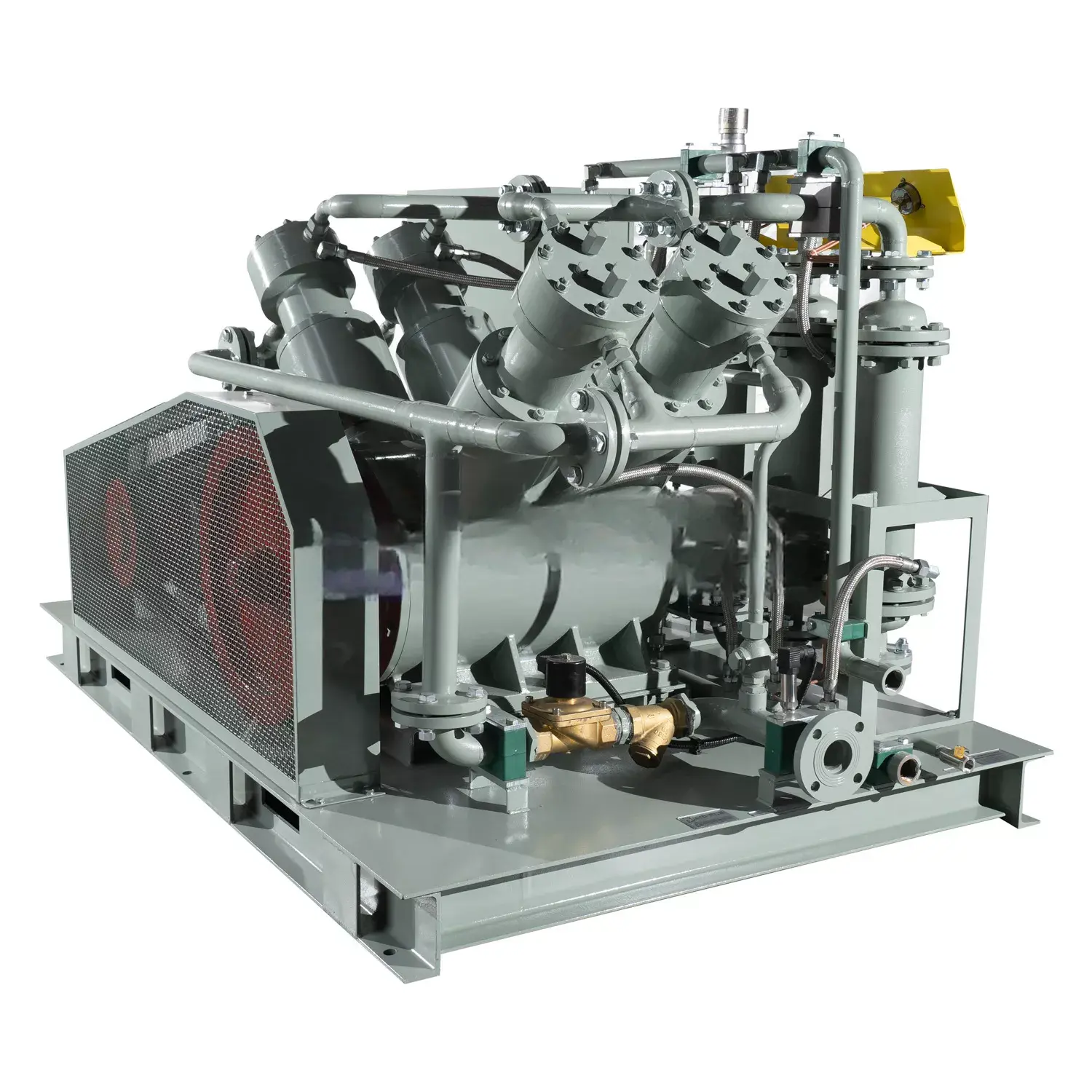

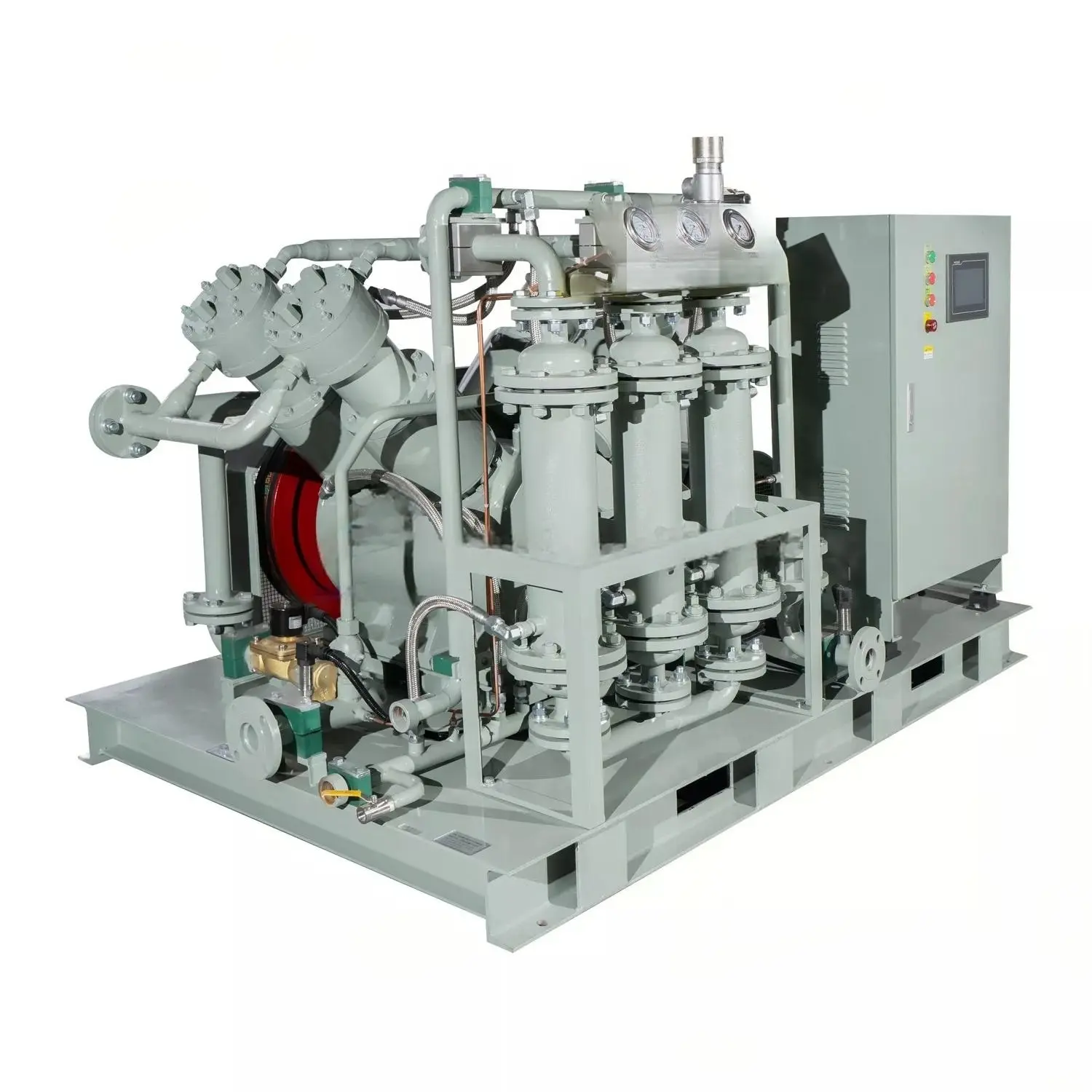

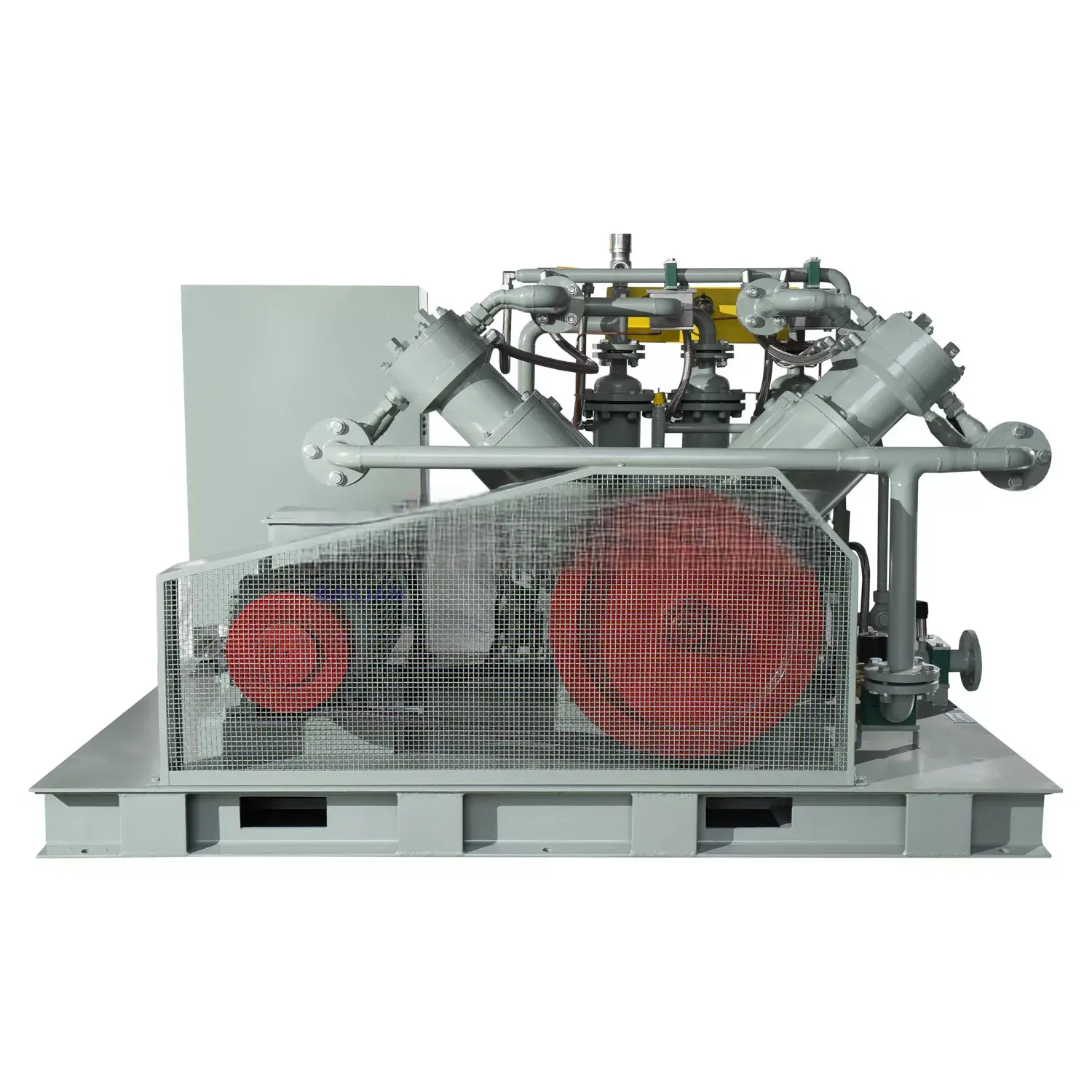

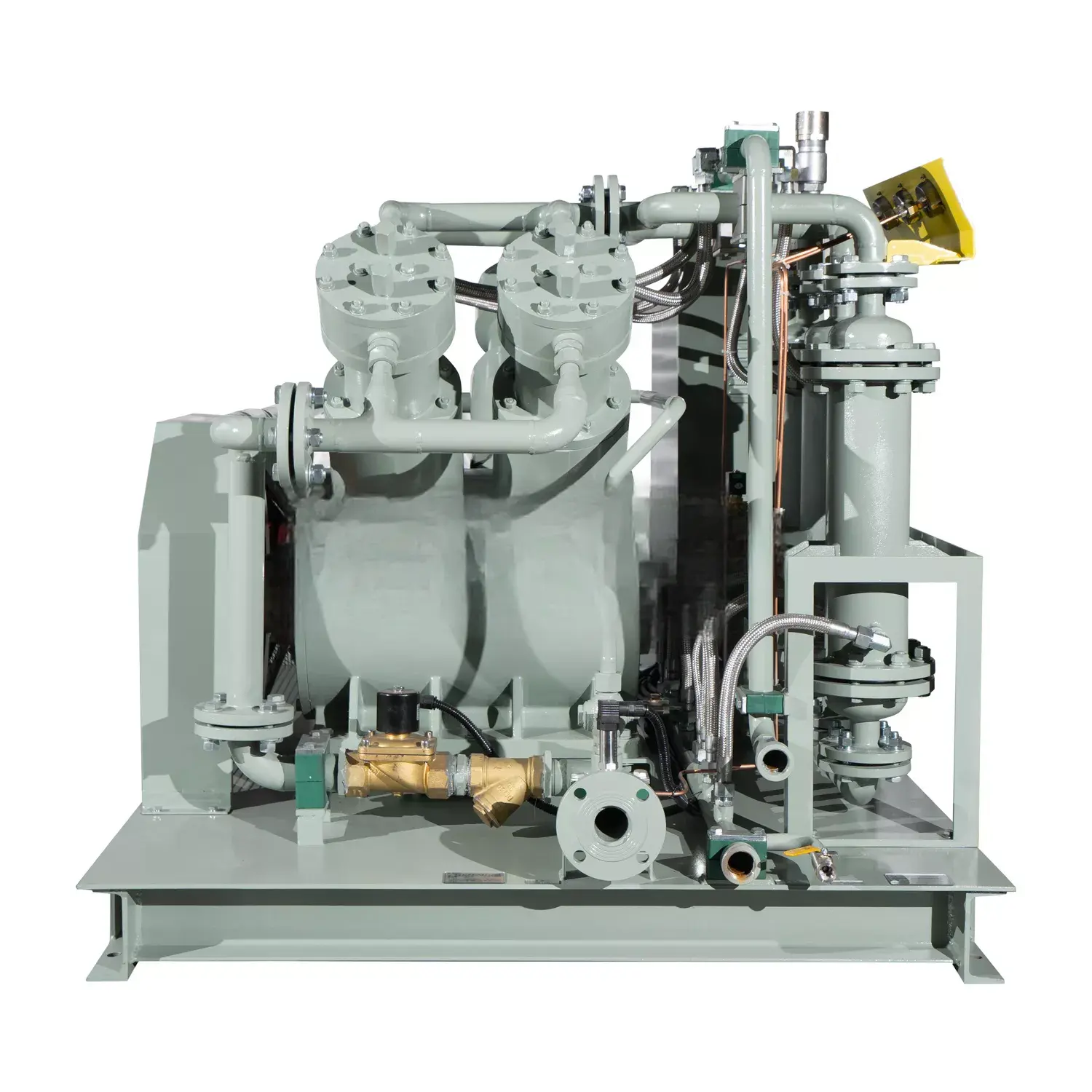

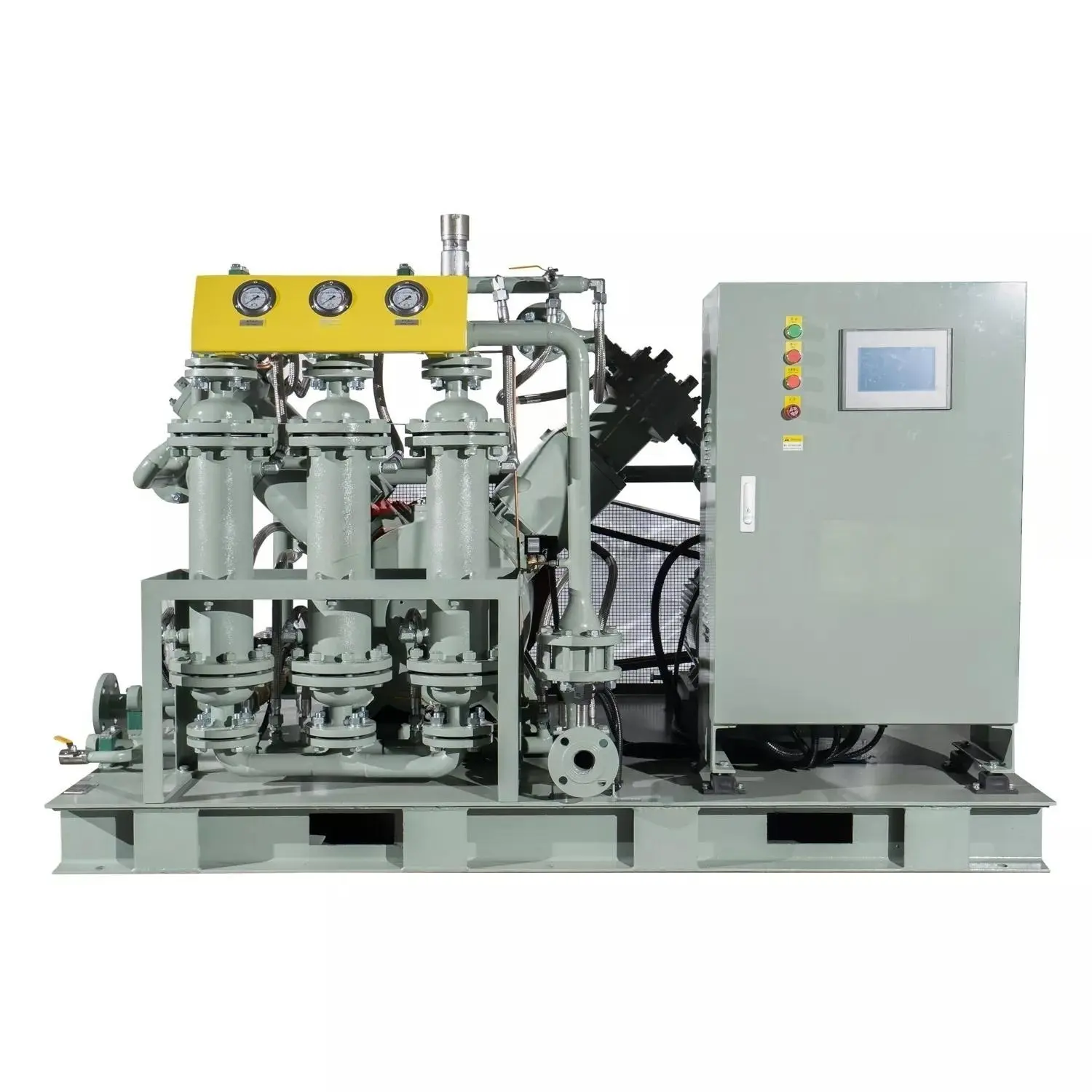

Industrial CNG Compressors

Industrial CNG Compressors

high-efficiency natural gas compression in CNG filling stations and industrial applications. These robust water-cooled compressors handle pressures from 0.01 MPa to 25 MPa, delivering reliable performance for mother stations, standard stations, and sub-stations. With customizable voltage options and flow rates from 10-600 Nm³/h, they provide complete solutions for CNG vehicle refueling and natural gas transportation.

￥ 0.00
0.00
Quantity：
Consultation


high-efficiency natural gas compression in CNG filling stations and industrial applications. These robust water-cooled compressors handle pressures from 0.01 MPa to 25 MPa, delivering reliable performance for mother stations, standard stations, and sub-stations. With customizable voltage options and flow rates from 10-600 Nm³/h, they provide complete solutions for CNG vehicle refueling and natural gas transportation.

Key Features

  • High Pressure Capability - Handles pressures up to 25 MPa (3600 Psig)

  • Multiple Voltage Options - Customizable power supply (220V/380V/415V/440V, 50/60Hz)

  • Wide Flow Range - Capacity from 10 to 600 Nm³/hr

  • Efficient Water Cooling - Maintains optimal operating temperatures

  • Station Versatility - Suitable for mother, standard, and sub-stations

  • Robust Construction - Designed for continuous 24/7 operation

  • Energy Efficient - Optimized motor power for reduced operating costs

TECHNICAL DATA

ModelWorking MediumSuction PressureDischarge PressureMotor PowerFlow RateVoltageCooling Method
191/0.2-0.56CNG Gas0.02 MPa, 3 Psig0.056 MPa, 8 Psig7.5 kW191 Nm³/hr220V/380V/415V/440V 50/60Hz/customizedWater Cooling
100/10-200CNG Gas1 MPa, 145 Psig20 MPa, 2875 Psig22 kW100 Nm³/hr220V/380V/415V/440V 50/60Hz/customizedWater Cooling
200/10-200CNG Gas1 MPa, 145 Psig20 MPa, 2875 Psig37 kW200 Nm³/hr220V/380V/415V/440V 50/60Hz/customizedWater Cooling
300/10-200CNG Gas1 MPa, 145 Psig20 MPa, 2875 Psig55 kW300 Nm³/hr220V/380V/415V/440V 50/60Hz/customizedWater Cooling
500/10-200CNG Gas1 MPa, 145 Psig20 MPa, 2875 Psig90 kW500 Nm³/hr220V/380V/415V/440V 50/60Hz/customizedWater Cooling
600/3-12CNG Gas0.3 MPa, 43 Psig1.2 MPa, 172 Psig55 kW600 Nm³/hr220V/380V/415V/440V 50/60Hz/customizedWater Cooling
20/5-45CNG Gas0.5 MPa, 72 Psig4.5 MPa, 646 Psig5.5 kW20 Nm³/hr220V/380V/415V/440V 50/60Hz/customizedWater Cooling
80/0.5-6CNG Gas0.05 MPa, 7 Psig0.6 MPa, 86 Psig15 kW80 Nm³/hr220V/380V/415V/440V 50/60Hz/customizedWater Cooling
30/0.1-90CNG Gas0.01 MPa, 1.4 Psig9 MPa, 1293 Psig15 kW30 Nm³/hr220V/380V/415V/440V 50/60Hz/customizedWater Cooling
10/6-250CNG Gas0.6 MPa, 86 Psig25 MPa, 3600 Psig4 kW10 Nm³/hr220V/380V/415V/440V 50/60Hz/customizedWater Cooling
20/6-250CNG Gas0.6 MPa, 86 Psig25 MPa, 3600 Psig7.5 kW20 Nm³/hr220V/380V/415V/440V 50/60Hz/customizedWater Cooling
30/6-250CNG Gas0.6 MPa, 86 Psig25 MPa, 3600 Psig15 kW30 Nm³/hr220V/380V/415V/440V 50/60Hz/customizedWater Cooling


CNG Station Applications

  • Mother Stations - Supply CNG to cylinder trucks and directly refuel vehicles

  • Standard Stations - Draw gas from city pressure networks for vehicle refueling

  • Sub-Stations - Use CNG cylinder trucks as gas source for vehicle refueling

  • Industrial Use - Natural gas transportation and storage applications

Important Notes

  1. All parameters are for reference and subject to final technical quotation

  2. Custom solutions available for higher displacement and pressure requirements

  3. Please provide detailed application requirements for accurate equipment selection
