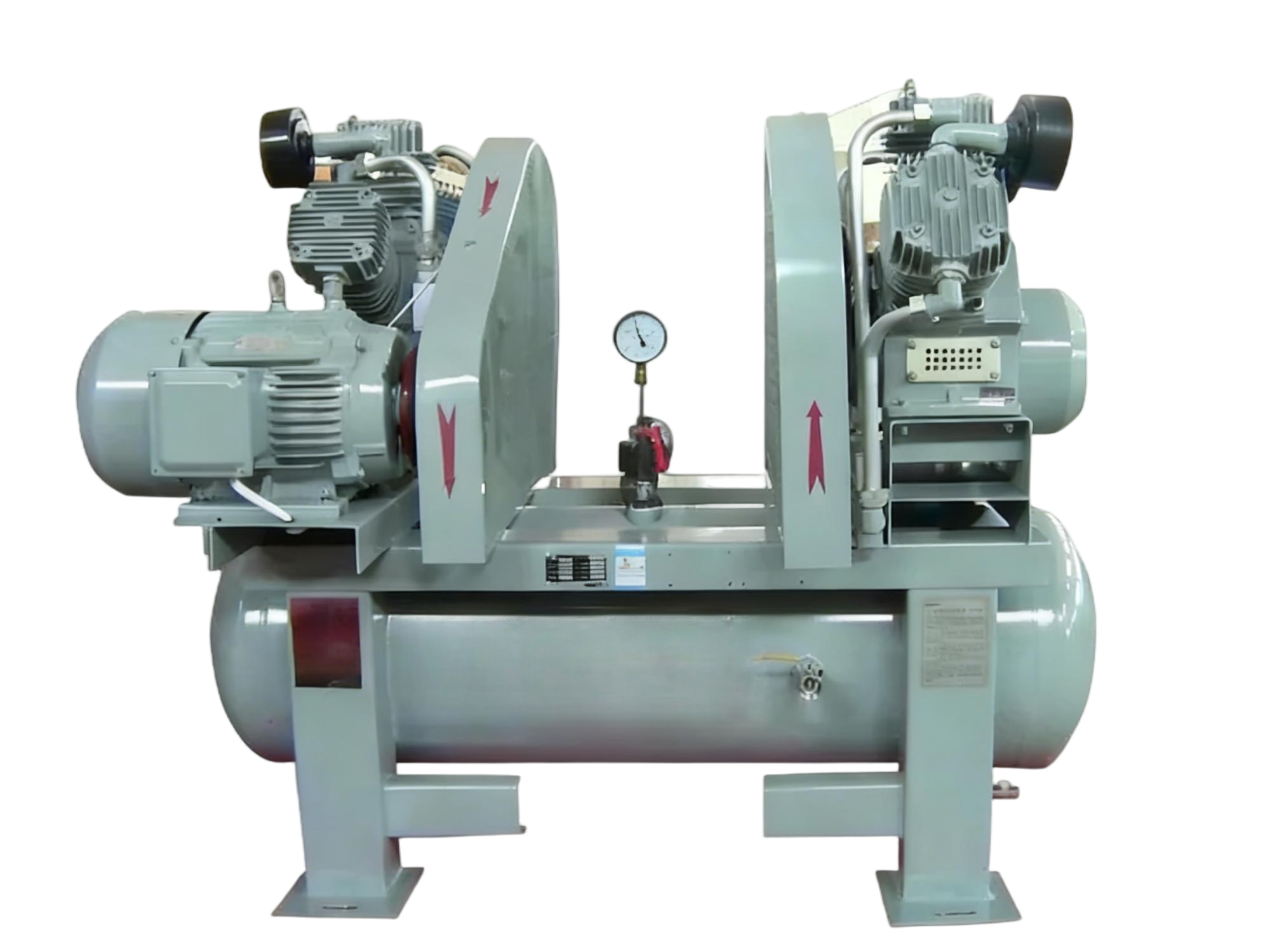

Oil-Free Low Pressure and High Pressure Air Compressor

Oil-Free Low Pressure and High Pressure Air Compressor

Our industrial oil-free low pressure air compressor series provides 100% contamination-free compressed air for applications requiring the highest air quality standards. These compressors convert mechanical energy into clean, oil-free compressed air, making them ideal for food processing, pharmaceutical manufacturing, and other sensitive industries where air purity is critical. With their completely oil-free design and integrated air filtration systems, they deliver reliable performance while eliminating the risk of product contamination.

￥ 0.00
0.00
Quantity：
Consultation


Our industrial oil-free low pressure air compressor series provides 100% contamination-free compressed air for applications requiring the highest air quality standards. These compressors convert mechanical energy into clean, oil-free compressed air, making them ideal for food processing, pharmaceutical manufacturing, and other sensitive industries where air purity is critical. With their completely oil-free design and integrated air filtration systems, they deliver reliable performance while eliminating the risk of product contamination.

Key Features

  • 100% Oil-Free Operation: Eliminates risk of air contamination

  • High Air Quality: Ideal for food, pharmaceutical, and sensitive industries

  • Low Noise Levels: Ranging from ≤81 to ≤86 dB(A) for comfortable working environment

  • Integrated Air Receiver: Built-in storage tanks from 0.08L to 330L capacity

  • Robust Construction: Heavy-duty design for industrial applications

  • Energy Efficient: Optimized motor power for reduced operating costs

  • Compact Design: Space-saving configurations for easy installation

TECHNICAL DATA - WW SERIES (High Capacity)

MODELCapacity (m³/min)Pressure (MPa)Speed (r/min)Noise [dB(A)]Motor (kW)Tank Volume (L)Dimension (LWH)Packing Dimension (LWH)N.W (kg)G.W (kg)
2.5/72.50.7860≤862×113301680×1230×14301910×1420×1650780930
2.5/102.51.0770≤862×113301680×1230×14301910×1420×1650780930
3.0/73.00.7770≤862×113301680×1230×14301910×1420×1650790940
3.0/103.01.0810≤862×113301680×1230×14301910×1420×1650790940
3.2/103.21.0820≤862×153301800×1350×14501950×1500×17309501130
3.6/103.61.0900≤862×153301800×1350×14501950×1500×17309501130

TECHNICAL DATA - ZW/VW SERIES (Compact Models)

MODELCapacity (m³/min)Pressure (MPa)Speed (r/min)Noise [dB(A)]Motor (kW)Tank Volume (L)Dimension (LWH)Packing Dimension (LWH)N.W (kg)G.W (kg)
0.3/70.30.7950≤812.20.081200×560×12001290×570×1230180195
0.45/70.450.7920≤834.00.121300×460×9601500×610×1220240270
0.42/100.421.0920≤834.00.121300×460×9601500×610×1220240270
0.6/70.60.7950≤845.50.181300×460×9601500×610×1220240270


Applications

  • Food and beverage processing

  • Pharmaceutical manufacturing

  • Medical equipment and hospitals

  • Laboratory and research facilities

  • Electronics manufacturing

  • Chemical processing

  • Packaging industry

Quality Assurance

  • Certified oil-free air output

  • Reliable continuous operation capability

  • Low maintenance requirements

  • Environmental protection compliance

  • Complete with air filtration systems
